700-3800MHz Ultra-Wideband Screw-Mount Antenna with Cable for 5G/LTE/WiFi（AC-Q7038-120ZD）

Name: 700-3800MHz Ultra-Wideband Screw-Mount Antenna with Cable for 5G/LTE/WiFi（AC-Q7038-120ZD）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This high-performance ultra-wideband antenna covers the extensive 700-3800MHz frequency range, supporting a vast array of cellular and wireless standards including 2G, 3G, 4G LTE, 5G Sub-6GHz, and WiFi 2.4/5.8GHz.Its broad bandwidth makes it a versatile "one-antenna-fits-all" solution for complex communication environments requiring multi-network connectivity.

The antenna features a durable screw-mount base with a standard thread interface, allowing for secure and stable installation on equipment panels,vehicle roofs,or enclosure walls.

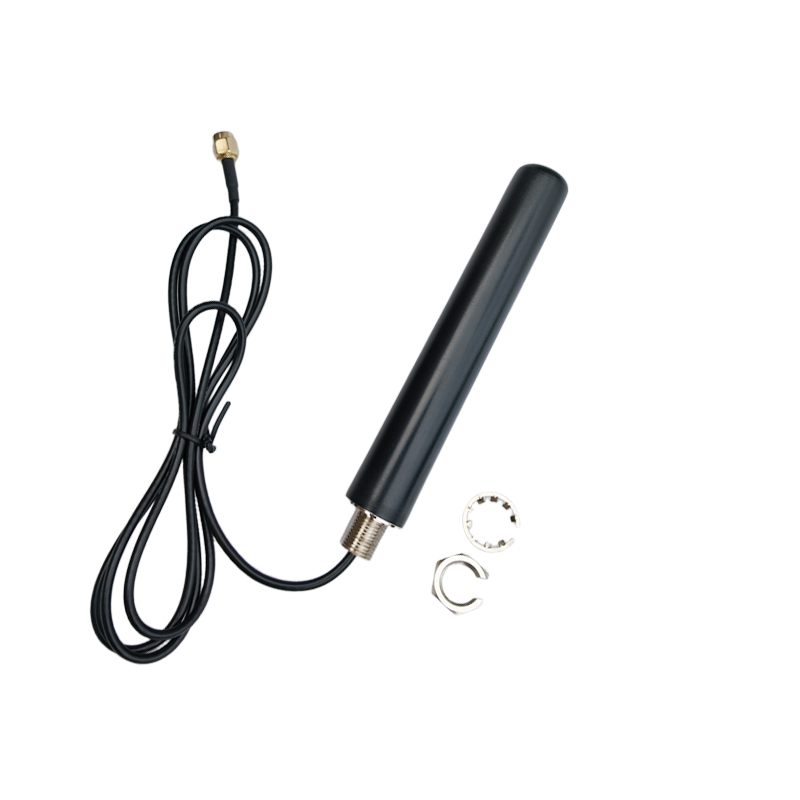

Unlike direct-connector models,it comes with an integrated pigtail cable,providing installation flexibility by allowing the connector to be routed internally or positioned away from the mounting point to avoid interference.

Get Antenna Price 

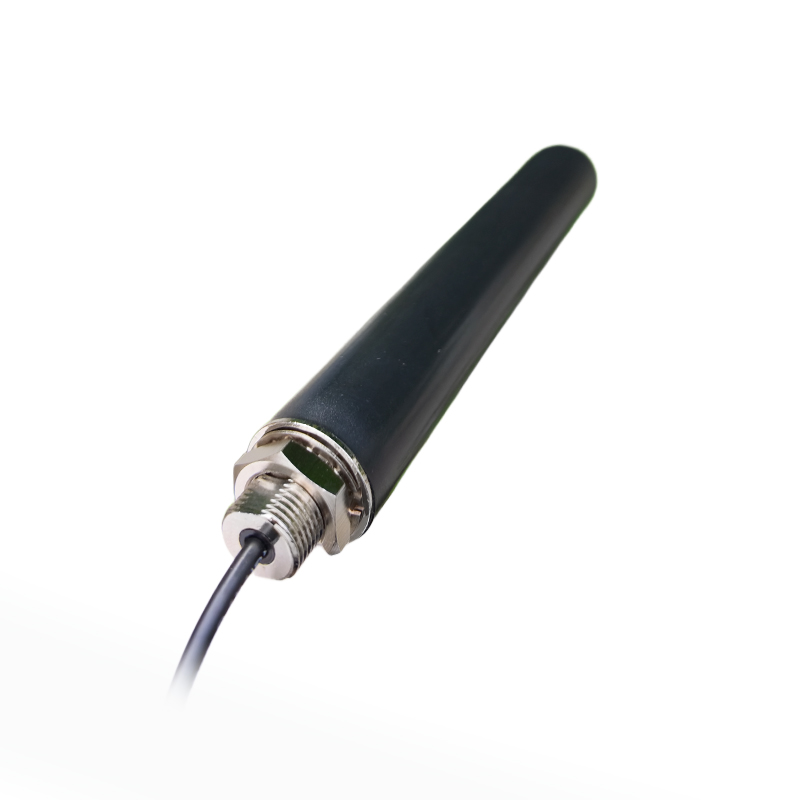

700-3800MHz Ultra Wideband Screw Mount Antenna with Cable for 5G LTE WiFi.jpg

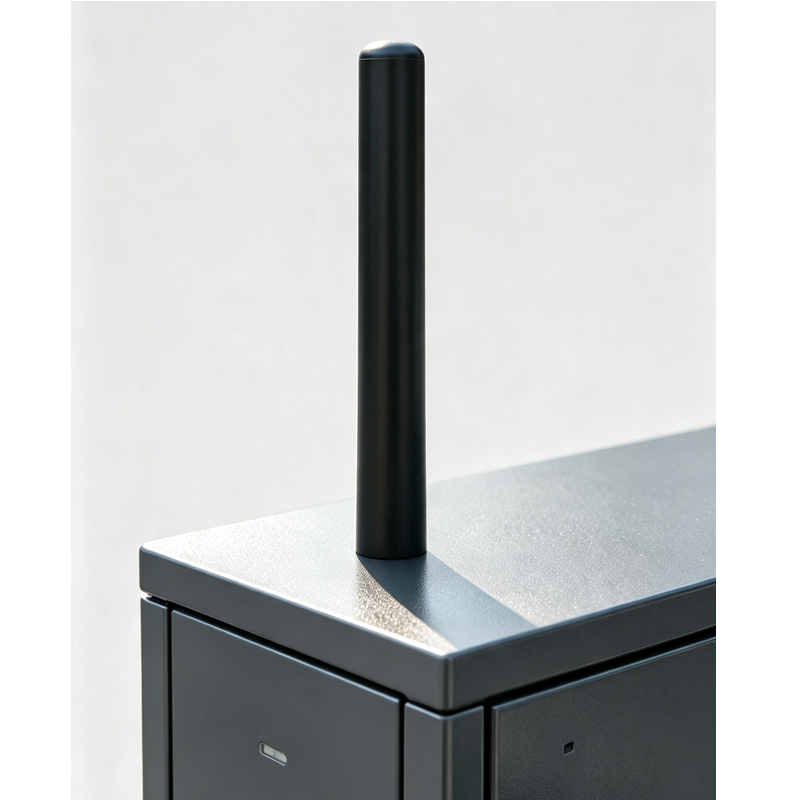

Antenna Top view of the charging station cabinet installation.jpg



Specification of 700-3800MHz Ultra-Wideband Screw-Mount Antenna with Cable for 5G/LTE/WiFi（AC-Q7038-120ZD）

Electrical
Frequency Range	698-960/1710-3800MHz
Gain	5dBi
V.S.W.R	≤5.0@698；≤1.8@960/1710；≤1.5@2700-3800MHz
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	5W
Impedance	50Ώ
Connector	SMA Male
Cable Type	RG174
Cable Length	3M
Antenna Radome Material	ABS
Mounting way	Screw
Mechanical
Dimensions	Φ20x120mm
Weight	56g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
