5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna（AC-D7038V09X2-65X）

Name: 5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna（AC-D7038V09X2-65X）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This 5GHz LTE 698-3800MHz 9dBi ± 45 °2x2 MIMO sector antenna,designed specifically for modern mobile communication networks, is an ideal choice for improving wireless network coverage and data throughput.

This antenna has ultra wideband characteristics and can be fully compatible with a wide frequency range from 698MHz to 3800MHz,easily adapting to various mainstream LTE networks, providing highly flexible network deployment solutions for operators and system integrators.

In terms of performance, the antenna adopts an advanced 2x2 MIMO (Multiple Input Multiple Output) architecture,combined with a ± 45 °dual polarization design,which can effectively overcome multipath fading and significantly improve signal quality and data transmission rate.

Get Antenna Price 

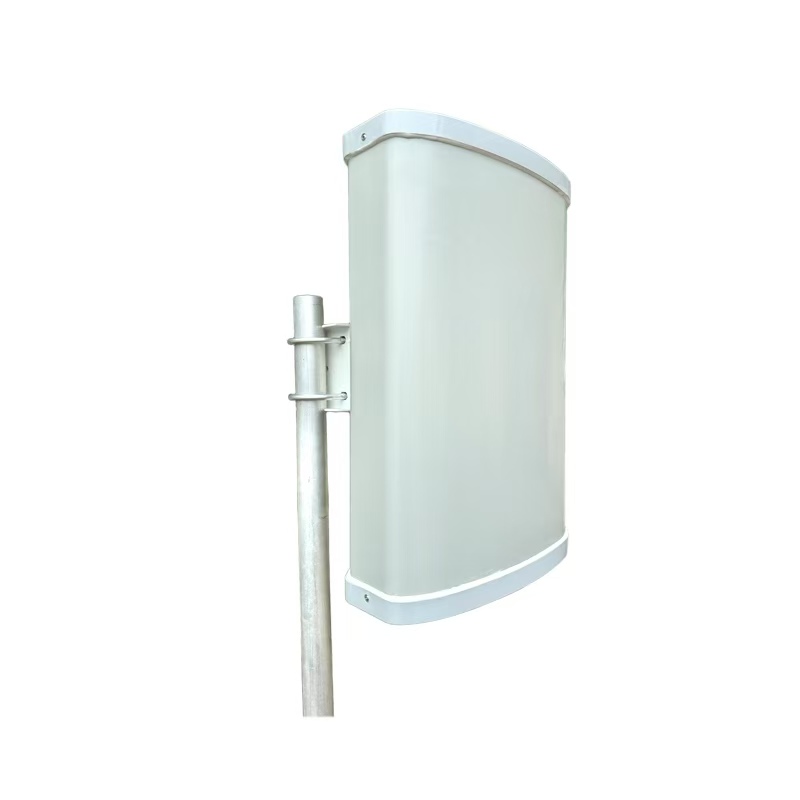

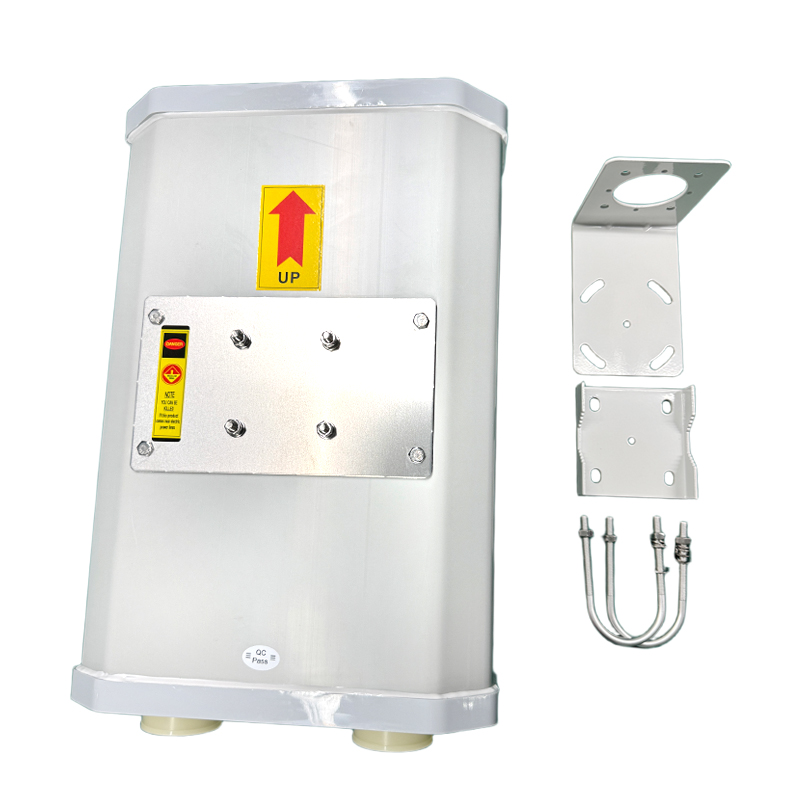

698-3800MHz 5GHz LTE 9dBi ±45° 2x2 MIMO Sector Antenna.jpg

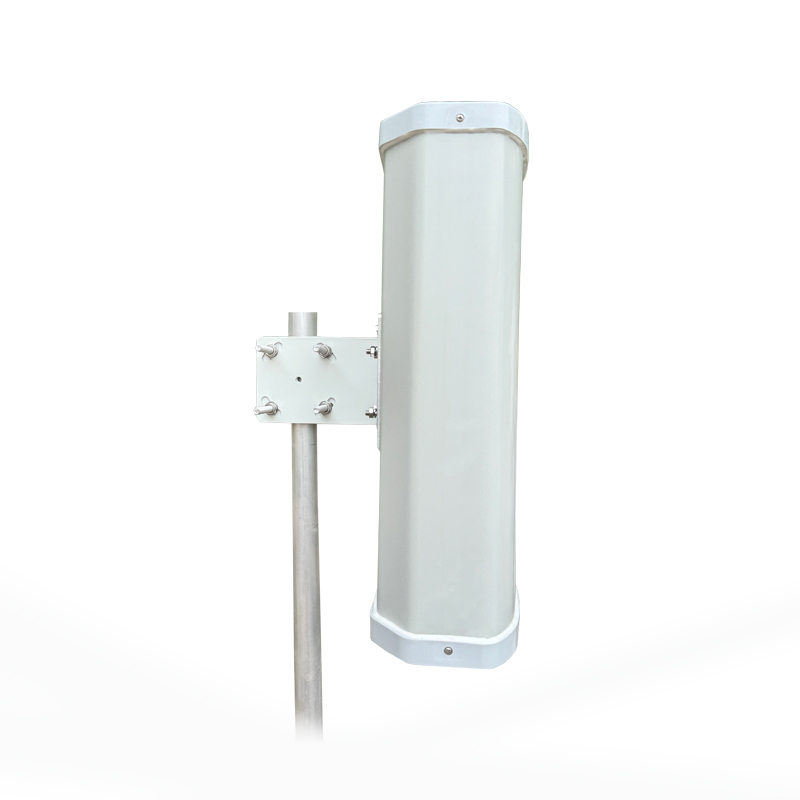

5G LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna.jpg

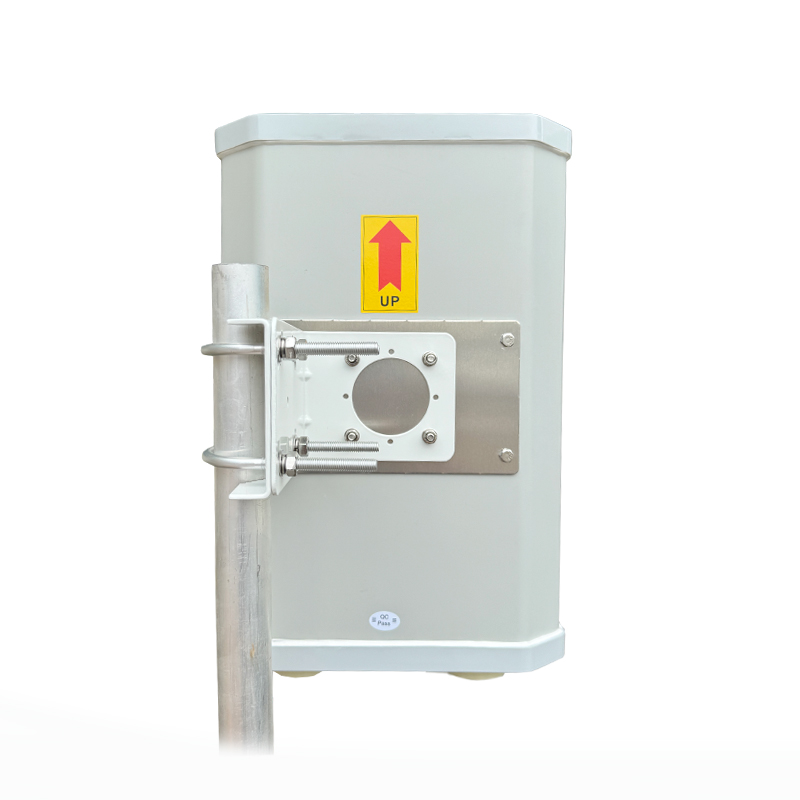

5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Outdoor Sector Antenna.jpg

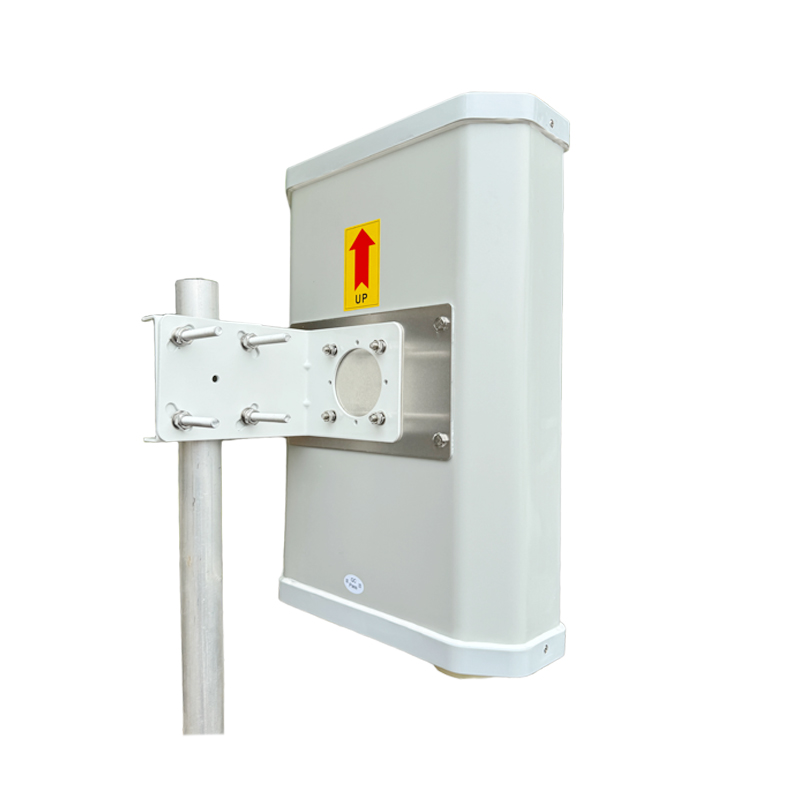

5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna for Outdoor Router Use.jpg

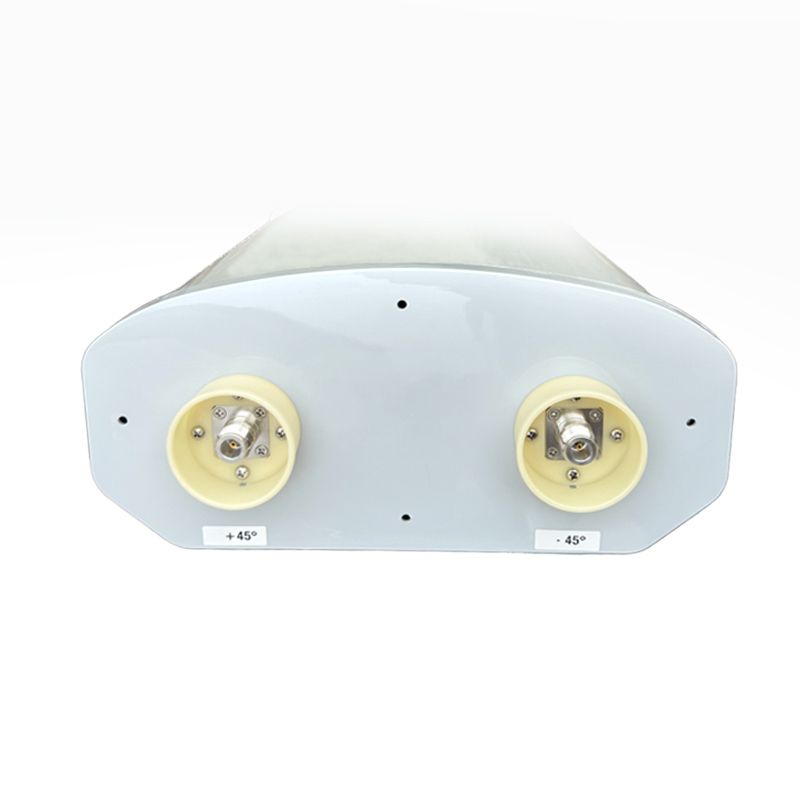

Outdoor 5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna.jpg



Specification of 5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna（AC-D7038V09X2-65X）

Electrical
Frequency Range	2x698-960/1710-2700/3400-3800MHz
F/B Ratio	＞23dB
Gain	9dBi
V.S.W.R	≤1.8
Radiation	Direction
Horizontal Beam width	65°
Vertical Beam width	65°
Polarization	±45°
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	2xN Female
Antenna Radome Material	PVC
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30-Ø50mm
Mechanical
Dimensions	450x280x130mm
Weight	4.3KG
Operating Temperature	-40℃ to+80℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES

Features of 5GHz LTE 698-3800MHz 9dBi ±45°2x2 MIMO Sector Antenna（AC-D7038V09X2-65X）

01

High-gain directional antenna provides wide-area coverage, ideal for Point-to-Multi-Point connections
02

MIMO technology ensures increased throughput and easy installation
03

Weatherproof design offers protection in harsh environments
