4G MIMO Parabolic Dish Antenna 1710-2700Mhz High Gain Long Range （AC-D1727G20-06GSX2）

Name: 4G MIMO Parabolic Dish Antenna 1710-2700Mhz High Gain Long Range （AC-D1727G20-06GSX2）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The MIMO dish parabolic antenna consists of full Parabolic reflector having a diameter of 0.6 meters for use in point to point analogue and digital communication radio link.

The antenna covers 990 MHz bandwidth.The mounting arrangement of dish parabolic antenna permits to change the polarization from horizontal to vertical and vice-versa by mounting hardware fitted at rear

end of the antenna. The antenna is supplied with +/-5 degrees elevation tracking mechanism.

The dish parabolic antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise.

The grid parabolic antenna is highly suitable for long range Outdoor signal coverage.

Get Antenna Price 

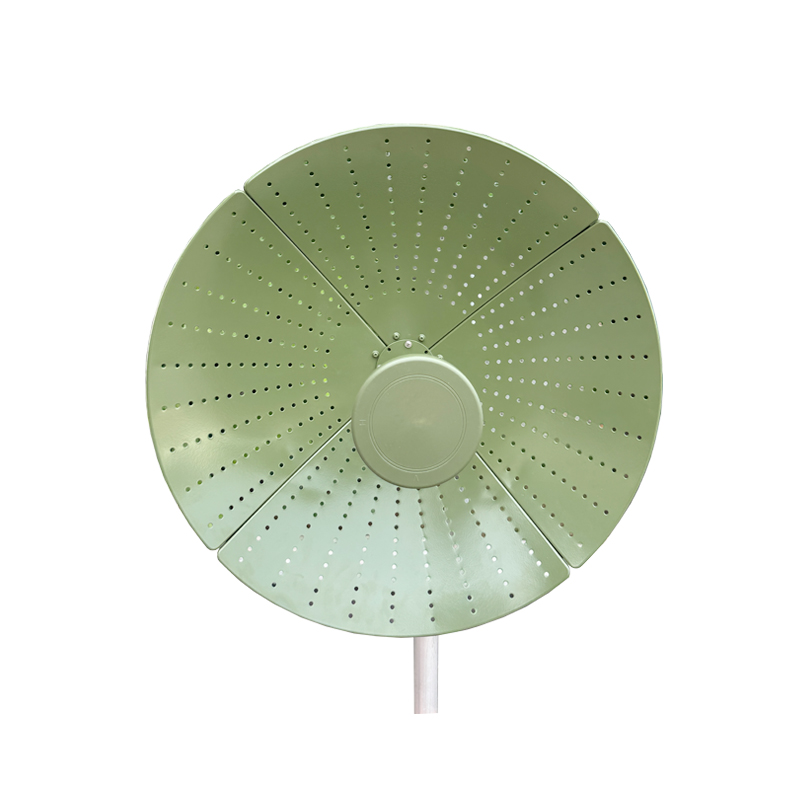

4G MIMO Parabolic Dish Antenna 1710-2700Mhz High Gain Long Range.jpg



Electrical
Frequency Range	1710-2700MHz
F/B Ratio	≥25dB
Gain	18/20dBi
V.S.W.R	≤2.0
Radiation	Direction
Horizontal Beam width	20°
Vertical Beam width	18°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Cable Length	20CM
Cable Type	SFF-141
Connector	2xN Female
Antenna Radome Material	Aluminium alloy
Antenna Radome Color	Green
Mount way	Pole
Diameter of Installation Pole	Ø50~Ø70mm
Mechanical
Dimensions	Φ600mm
Weight	3.3KG
Operating Temperature	-40℃ to+70℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
