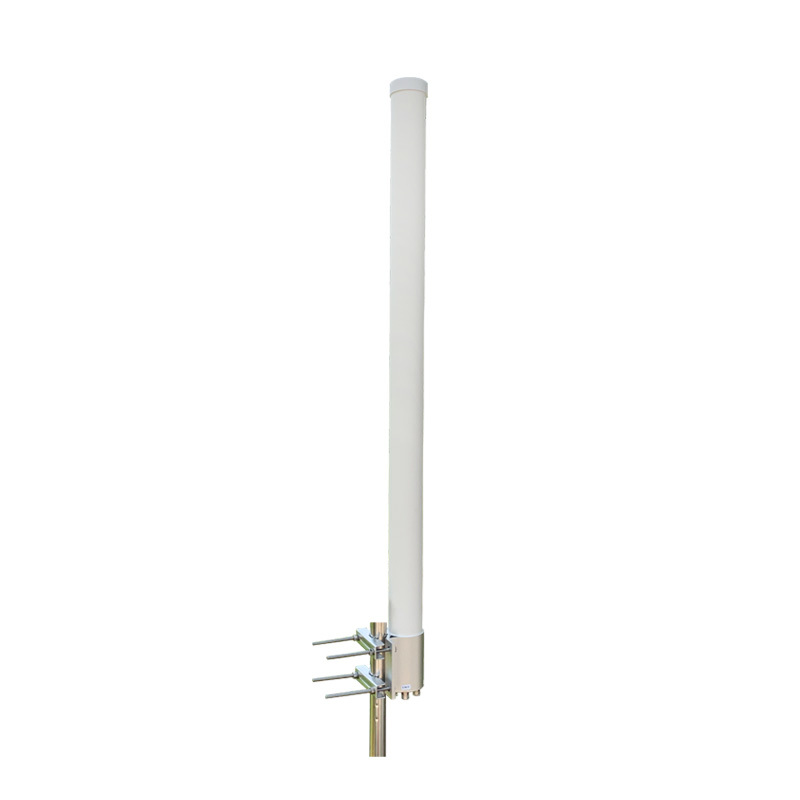

2.4/5.8GHz MIMO Omni Antenna with Dual N Female Connectors（AC-Q2458F09X2）

Name: 2.4/5.8GHz MIMO Omni Antenna with Dual N Female Connectors（AC-Q2458F09X2）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This 2.4/5.8GHz MIMO Omni Antenna is a high-performance communication accessory engineered for modern high-speed wireless networks.Fully supporting 2x2 MIMO technology,it significantly boosts data transmission rates and network stability.

Covering both the 2.4GHz and 5.8GHz dual bands,it is widely compatible with mainstream Wi-Fi standards like IEEE 802.11a/b/g/n/ac,making it ideal for

WLANs,point-to-point,or multipoint wireless video transmission scenarios.

Equipped with two standard N-Female connectors,this antenna ensures reliable RF signal connections and offers flexible integration with various wireless devices or RF jumper cables.

Its omnidirectional design provides seamless 360-degree horizontal coverage, guaranteeing smooth performance even when multiple devices are connected simultaneously.

Get Antenna Price 

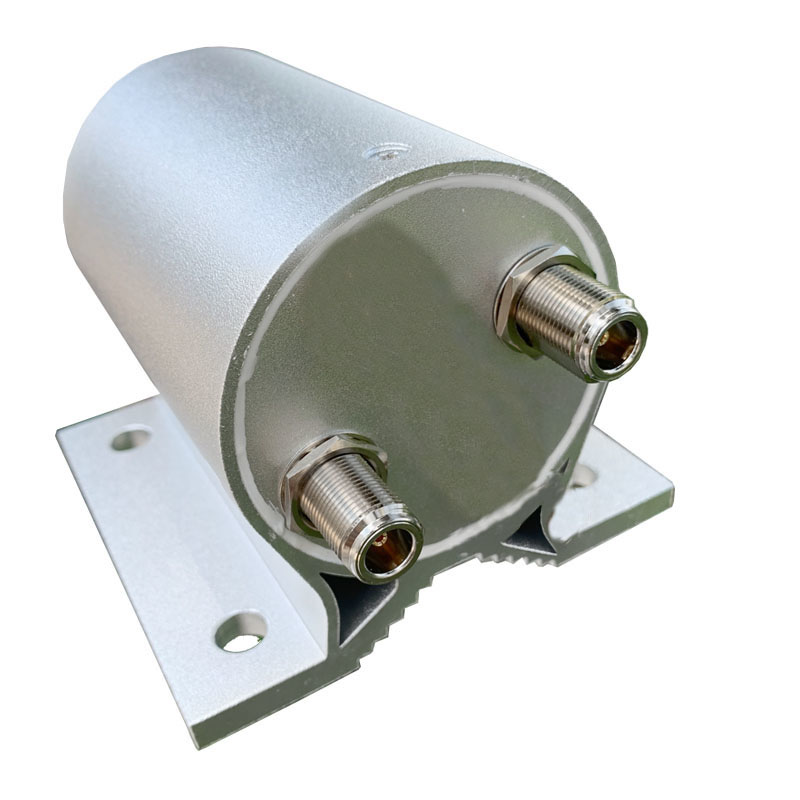

2.4GHz 5.8GHz MIMO Omni Antenna with 2x N Female Connectors.jpg



Specification of 2.4/5.8GHz MIMO Omni Antenna with Dual N Female Connectors（AC-Q2458F09X2）

Electrical
Frequency Range	2400-2500/4900-5800MHz X2
Gain	9dBi
Polarization	Vertical
V.S.W.R	≤2.0
Radiation	Omni-Direction
Horizontal Beam width	360°
Vertical Beam width	21°
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	2xN Female
Antenna Radome Material	PVC
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	Φ75x1100mm
Weight	2KG
Operating Temperature	-40℃ to+80℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
