It is an Flat low-profile patch antennas rang from 600-4000MHz for 5G, NB-IoT, and LTE provide a variety of band solutions. The antennas address various bandwidth demands from cellular Internet of IOT devices. This capability helps to enable lower latency and higher peak data rate connection of 5G network and cellular low-power wide-area network (LPWAN) communication.
They are ready to use with no tuning. Typical applications include small cellular base stations, WLAN, IoT devices, tracking devices, as well as smart building and smart city devices.

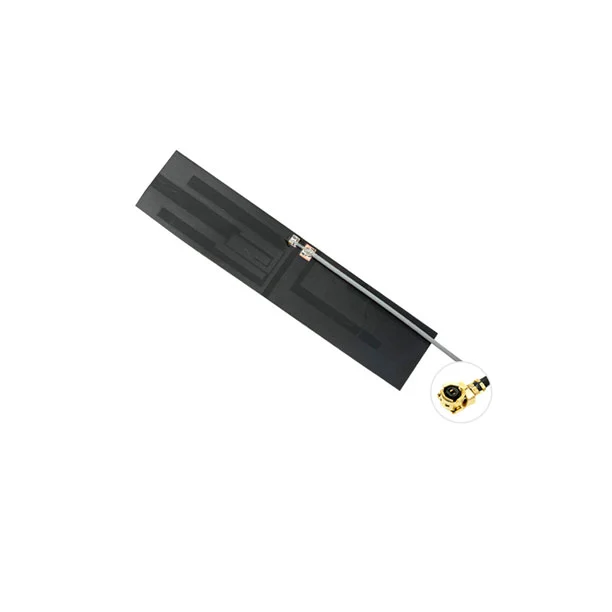

This antenna with U.FL connector includes a strong adhesive pad, easily mount it in the best position/location for minimal obstruction and optimal signal strength.
| Electrical | |
| Frequency Range | 698-960/1700-2690/3300-4000MHz |
| Gain | 2/3/3.5dBi |
| V.S.W.R | ≤2.5 |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 85x15x0.6mm |
| Weight | 4g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Click to see 5G antenna PCB list.
The antenna is internal 5GHz antenna with an U.FL connector.
FPC piamater antenna with back gum,easy to set up.
It is used to transmit and receive electromagnetic waves in wireless optical splitter with stable signal and low loss.
