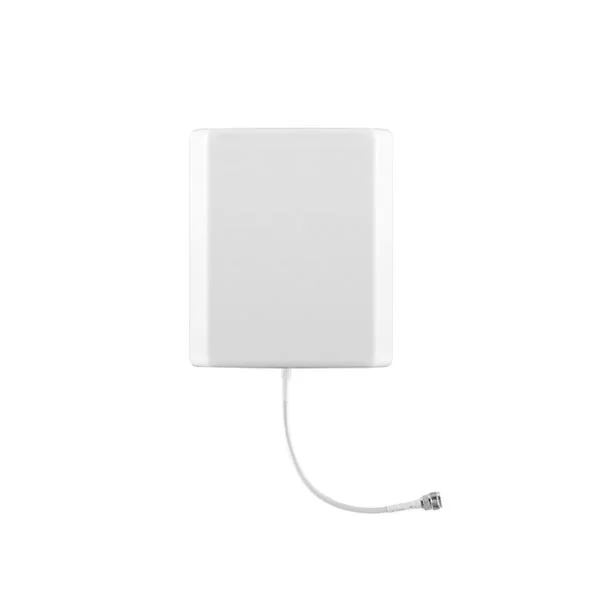

This type wall mount directional antenna is Compact and light weight with Vertical Polarization that in 800-960/1710-2500MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal. Strength Indication. Also works great for telemetry receivers.
The antenna is ideal for both indoor and outdoor applications.
Being Bracket mount it is designed to be mounted on a ground plane for optimal performance.
Cable and Connector can be Customed.
| Electrical | |
| Frequency Range | 824-960/1710-1880MHz |
| Gain | 7/10dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 70° |
| Vertical Beam width | 55° |
| Polarization | Vertical or Horizontal |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | 207x180x45mm |
| Weight | 500g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
Indoor antenna makes sure coverage is transmitted in a wide arc (between 60 and 70° depending on frequency band).
It radiates in a 55-70°directional beam, making them excellent for hallways, long rooms, high ceilings etc.
It is a 7/10dBi directional panel antenna. Directional means that the antenna has to roughly face the direction of the nearest transmission tower.
