Power Splitter, Broadband High Bandwidth 800 - 2500 MHz GSM900, CDMA, GSM1800 and UMTS.
These 2-way power splitters are individually designed to be used with GSM900, CDMA, GSM1800 and UMTS.
The power splitter is designed to equally split one input signal into 2, 3 or 4 outputs. When building an indoor coverage system the splitter is often used to split signals between floors and antennas.
The functionality of handling both transmitting and receiving signals in the same path is highly beneficial since the TX signal is split and the RX signal is combined in the same stage and component.
| Electrical Specifications | |
| Passband | 800-2500MHz |
| Input return loss | ˃20dB |
| Split loss | ˂3.0dB |
| Dissipative loss | ˂0.1dB |
| Max input power/port | 300 W avg |
| Impedance in/out | 50Ω |
| Mechanical Specifications | |
| Dimensions (W x H x D) | 113x70x19mm |
| Weight | 260g |
| Connector | N Female |
| Environmental Specifications | |
| Temp. range (normal operation) | -35 to +75℃ |
| Humidity | Relative 5 - 95% |
| Sealing | IP65 |

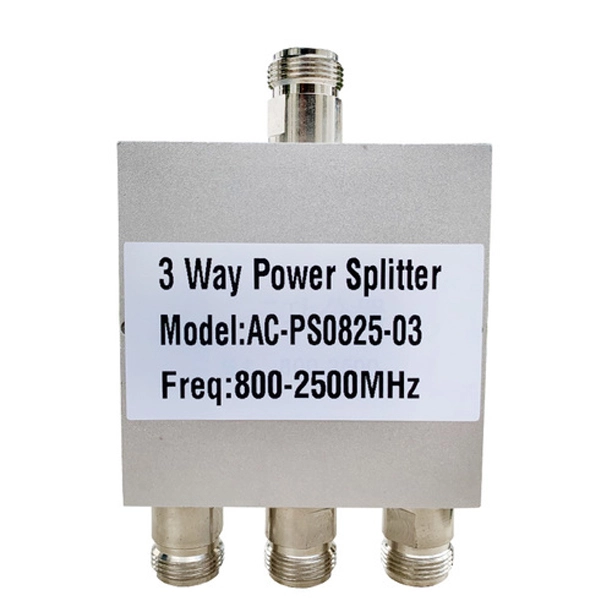

3 way N female power splitter 800-2500MHZ can work for verizon, A T&T, any carriers.
This 3-way microstrip power divider has good in-band flatness, high isolation and small insertion loss.
It has good standing wave performance and easy installation. Frequency range is 800-2500MHz.
