1.7-3.8GHz LTE MIMO 600mm Dish Antenna 22dBi High Gain Outdoor（AC-D1738G22-06BX2）

Name: 1.7-3.8GHz LTE MIMO 600mm Dish Antenna 22dBi High Gain Outdoor（AC-D1738G22-06BX2）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

Wide Band Operation,Vertically and Horizontally Polarized,Extremely Rugged for Extreme Environment.

Antenna is supplied together with the bracket, which is possible to set easily in both directions.

The Parabolic Dish Antenna systems offered by Wireless are constructed of an aluminum alloy dish with powder coat paint finish for excellent mechanical.

The solid dish antenna has been specifically designed for operation on 4G/5G LTE MIMO networks.

Parabolic Dish Antenna can be made larger than a wire mesh reflector without leaking signal through gaps. Thus, it makes a good choice for Point-to-Point applications.

Get Antenna Price 

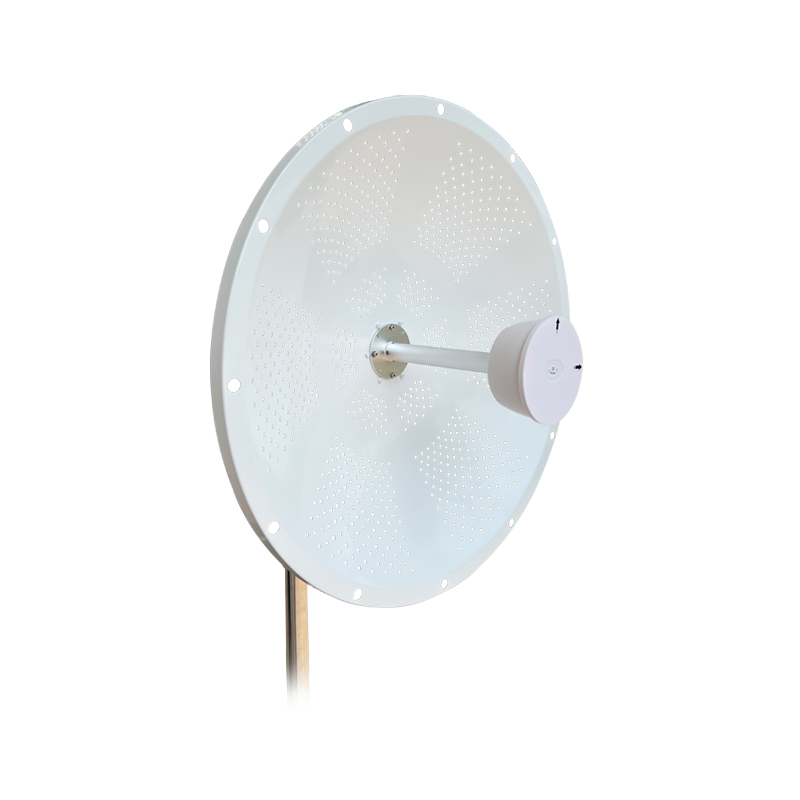

5G LTE MIMO 600mm Dish Antenna 22dBi High Gain Outdoor.jpg

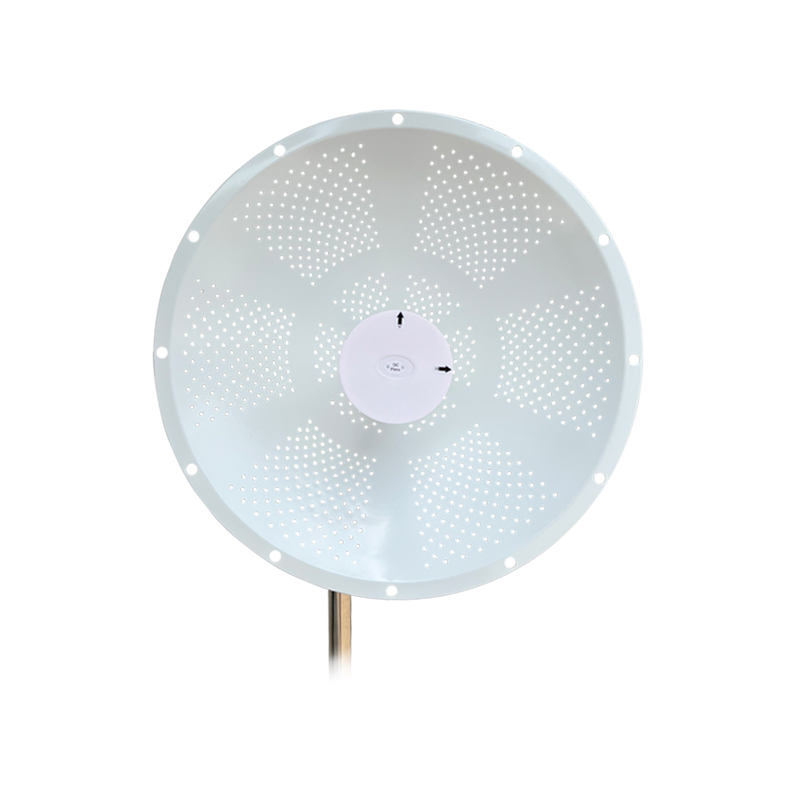

1.7-3.8GHz LTE MIMO 600mm Dish Antenna 22dBi High Gain Outdoor.jpg

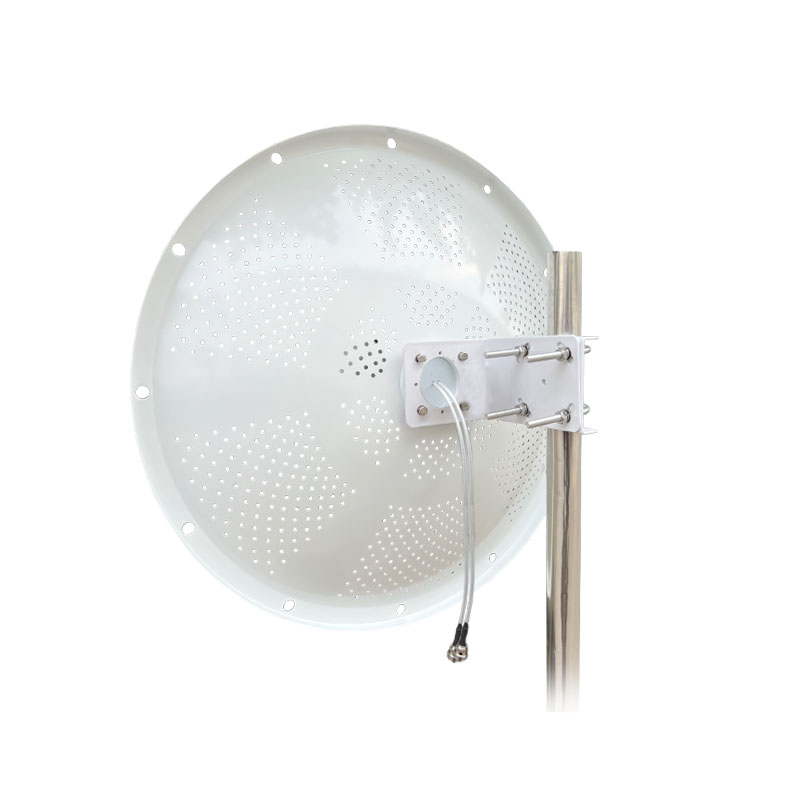

Dish Antenna 22dBi High Gain Outdoor..jpg

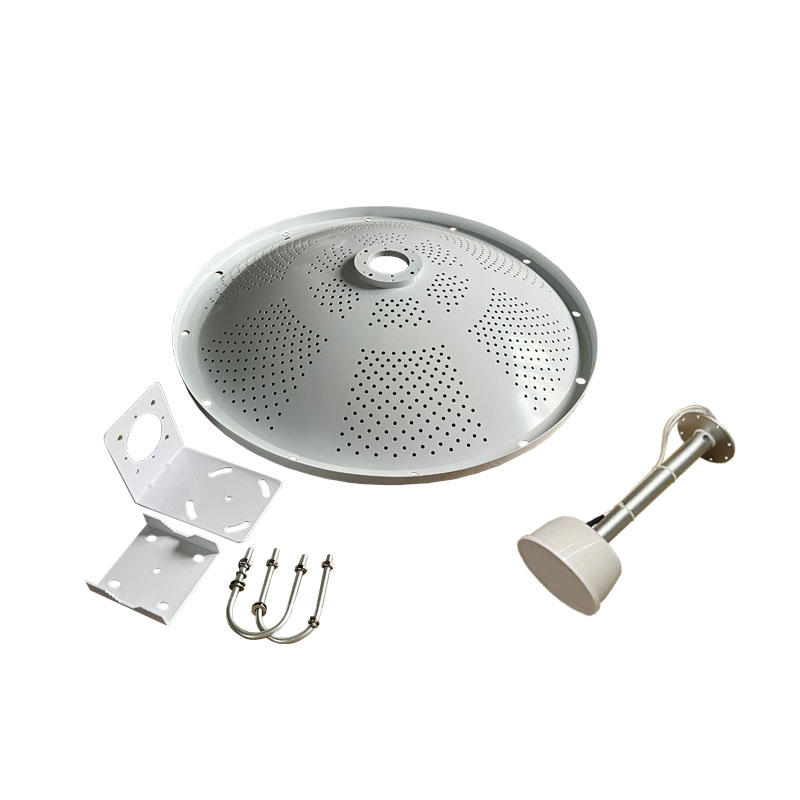

LTE MIMO 600mm Dish Antenna 22dBi High Gain Outdoor..jpg



Specification of 1.7-3.8GHz LTE MIMO 600mm Dish Antenna 22dBi High Gain Outdoor（AC-D1738G22-06BX2）

Electrical
Frequency Range	1710-2700/3300-3800MHz
F/B Ratio	≥25dB
Gain	20/22dBi
V.S.W.R	≤1.8
Isolation	25db
Horizontal Beam width	15°/10°
Vertical Beam width	15°/10°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Cable Type	RG141
Cable Length	20CM
Connector	2xN Female
Antenna Radome Material	Aluminium alloy
Antenna Radome Color	White
Mount way	Pole
Diameter of Installation Pole	Ø50~Ø70mm
Mechanical
Dimensions	Φ600mm
Weight	3.6KG
Operating Temperature	-40℃ to+70℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
