5G/4G LTE MIMO 6-in-1 6x6 MIMO Cellular Multi-Antenna （AC-LTE6-DQX）

Name: 5G/4G LTE MIMO 6-in-1 6x6 MIMO Cellular Multi-Antenna （AC-LTE6-DQX）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This antenna is not just an LTE MIMO antenna operating from 600 MHz to 3800 MHz, it also provides optional WiFi and LTE in a single, sleek low-profile radome.

This antenna operates across the bands of Sprint, Verizon, AT&T, ,ZTE,HUAWEI,and T-Mobile wireless carriers, as well as the Citizens Broadband Radio Service (CBRS) spectrum.

The outer radome is IP67 grade; completely impervious to water, airborne particles, temperature fluctuations, and impact. It withstands extreme cold and heat with a -40 to 85°C operating temperature range.

This outer shell protects the bottom of the antenna and hides it from view.

With the help of cabling, the antenna can be mounted away from its corresponding router, making it possible to place the antenna in the perfect spot to send and receive signals.

All of these elements and features combined make it a worthy contender for whatever it is up against and a great option for all mobile, industrial, and/or outdoor operations.

The only real downside is that it is a significant investment and one of the more expensive MIMO LTE options available.

Get Antenna Price 

5-Port 5G 4G LTE MIMO 6-in-1 6x6 MIMO Cellular Multi-Antenna.jpg

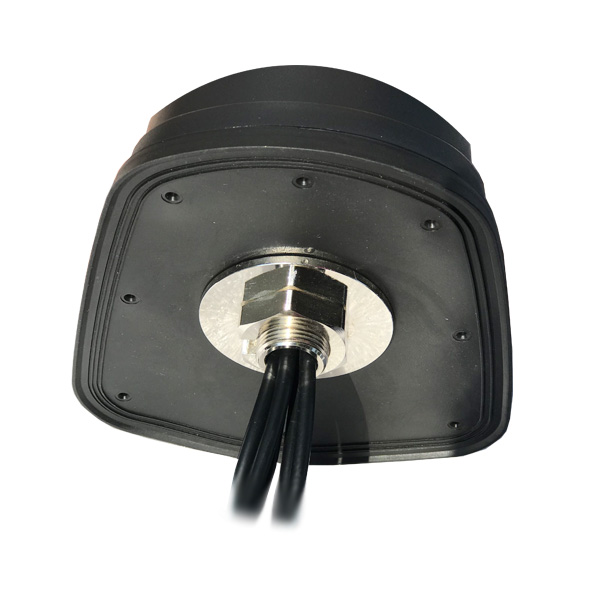

5G 4G LTE MIMO 6-in-1 6x6 MIMO Cellular Multi-Antenna.jpg

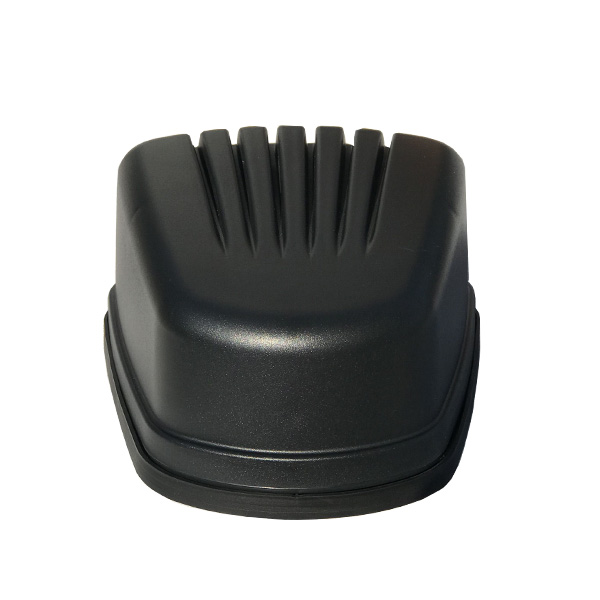

4G 5G LTE MIMO 6-in-1 6x6 MIMO Cellular Multi-Antenna.jpg



Specification of 5G/4G LTE MIMO 6-in-1 6x6 MIMO Cellular Multi-Antenna （AC-LTE6-DQX）

Electrical
LTE Part:	Frequency range	600-960/1710-3800MHz x4 1710-3800MHz x2
	V.S.W.R	＜2.0
	Gain	2.5/5/6dBi
	Polarization	Vertical
	Impendance	50Ω
Mechanical&Environmental	Housing	Black
	Cable	6x RG58U
	Length	6x 3M
	Connector	6x SMA Male standard,fully customizable
	Operation Temperature	-40℃ to+85℃
	Humidity	65%-95%RH
	Waterproof	IP67
	Antenna Radome Material	ABS
	Mounting way	Screw Mount
	Antenna Dimension	161.7x148.6x78mm
	Weight	1.4KG
