2X2 MIMO Sector 800-960MHz Outdoor Antenna(AC-D90V10X2-120)

Name: 2X2 MIMO Sector 800-960MHz Outdoor Antenna(AC-D90V10X2-120)
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This is a high gain directional 2X2 MiMo antenna for GSM 800-960MHz networks.It incorporates two pairs of wideband element assemblies in a single housing and is designed to support fixed site client devices.It offers 10dBi peak gain for 800-960MHz.

The weather resistant housing is designed for wall or mast mounting with the supplied hardware.

The heavy-duty, powder-coated mounting brackets allows installation with pipe diameter from Ø30 to Ø50mm and various degrees of incline for easy alignment.

Get Antenna Price 

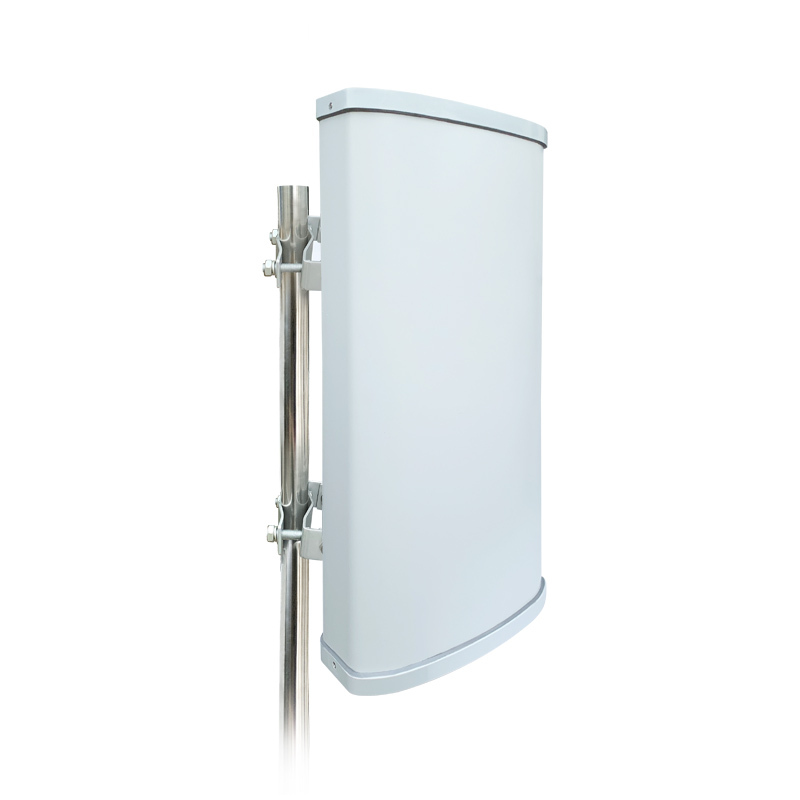

2X2 MIMO Sector 800-960MHz Outdoor Antenna.jpg

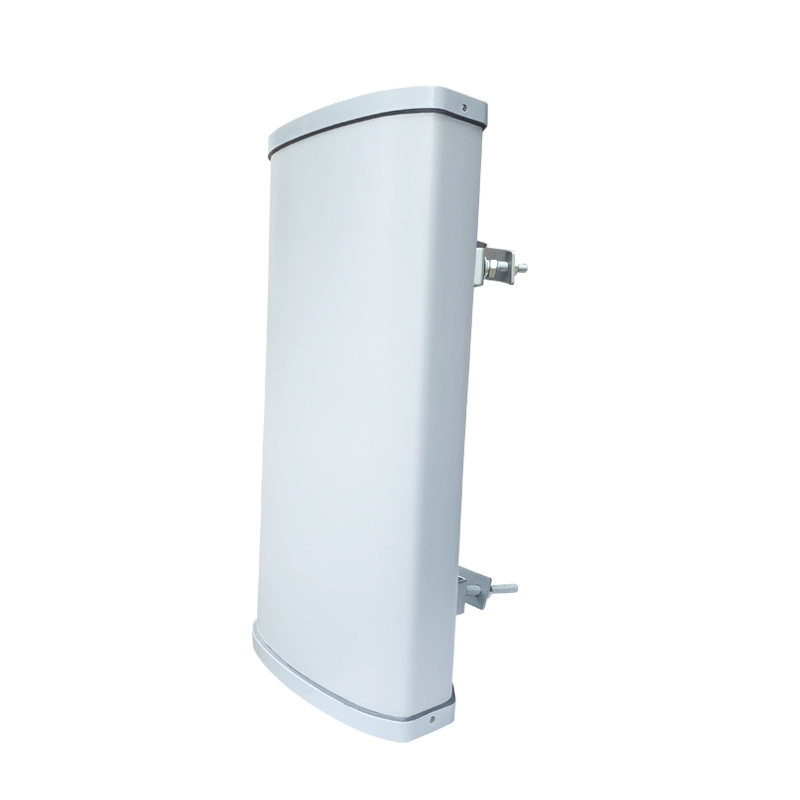

MIMO 2X2 Sector 800-960MHz Outdoor Antenna Pole Mount.jpg

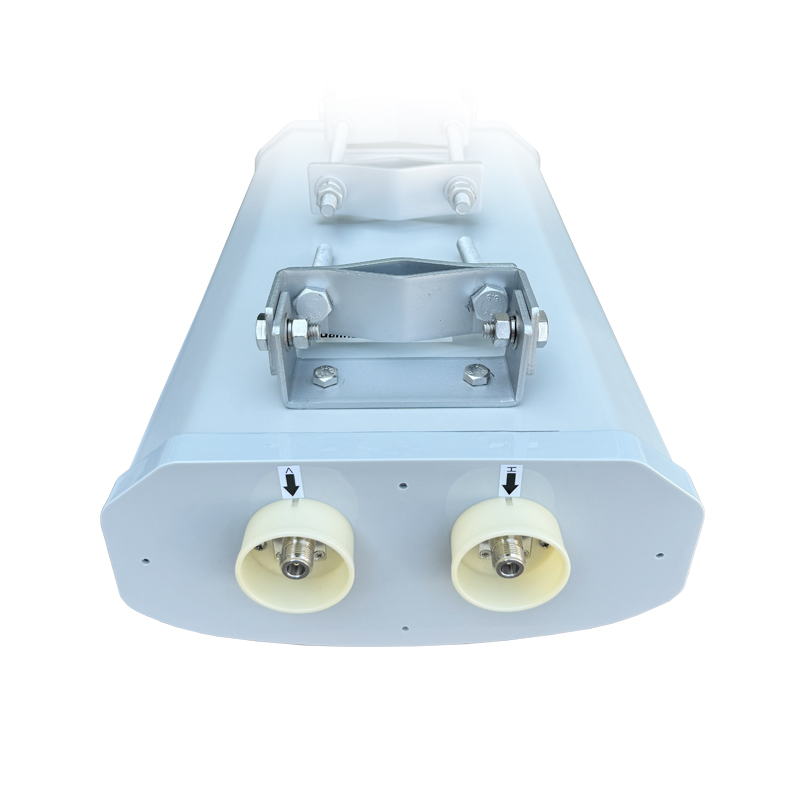

800-960MHz 2X2 MIMO Sector Outdoor Antenna.jpg

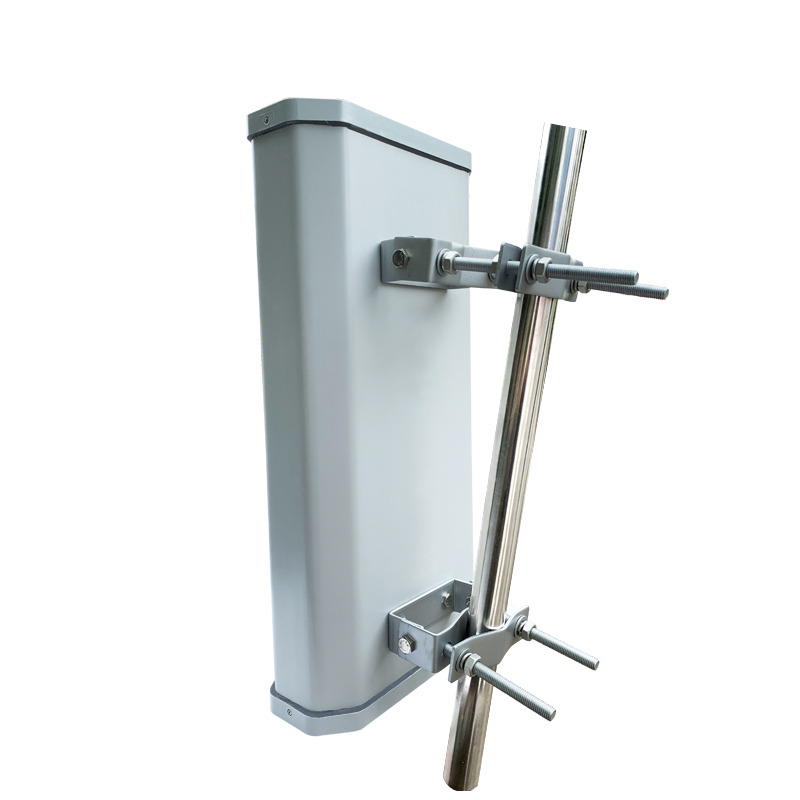

MIMO 2X2 Sector 800-960MHz Outdoor Antenna.jpg

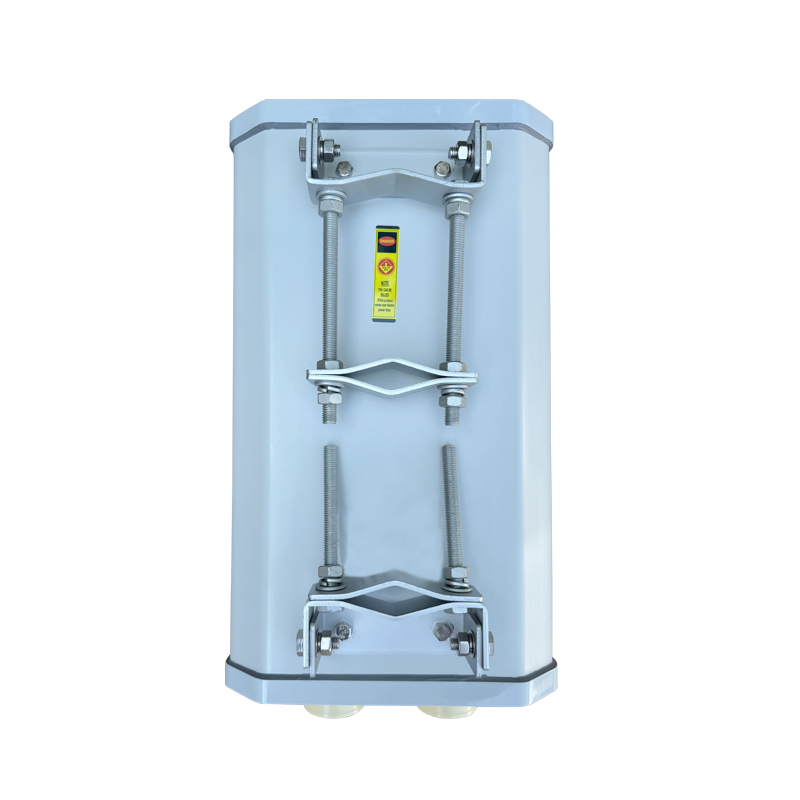

2X2 MIMO Sector 800-960MHz Outdoor Antenna Pole Mount.jpg



Specification of 2X2 MIMO Sector 800-960MHz Outdoor Antenna(AC-D90V10X2-120)

Electrical
Frequency Range	800-960MHzX2
F/B Ratio	＞25dB
Gain	2x10dBi
V.S.W.R	≤1.5
Radiation	Direction
Horizontal Beam width	120°
Vertical Beam width	70°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	2xN Female
Antenna Radome Material	PVC
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30-Ø50mm
Mechanical
Dimensions	500x290x130mm
Weight	5.2KG
Operating Temperature	-40℃ to+80℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
