4G/LTE Terminal Antenna With SMA/RP SMA Connector Embedded（AC-Q7027-80J）

Name: 4G/LTE Terminal Antenna With SMA/RP SMA Connector Embedded（AC-Q7027-80J）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The 4G Whip Antenna is vertically polarized with an omnidirectional radiation pattern.

These antennas are intended for demonstration use or short range communications only.

It does not require a ground-plane to connect to.

It has a quality TPU housing for use with 4G/LTE terminals.

Linear polarized antenna can be made very small and light weight, especially useful for weight-critical application

The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI.

Get Antenna Price 

4G LTE Terminal Antenna With SMA RP SMA Male Type Connector Embedded.jpg

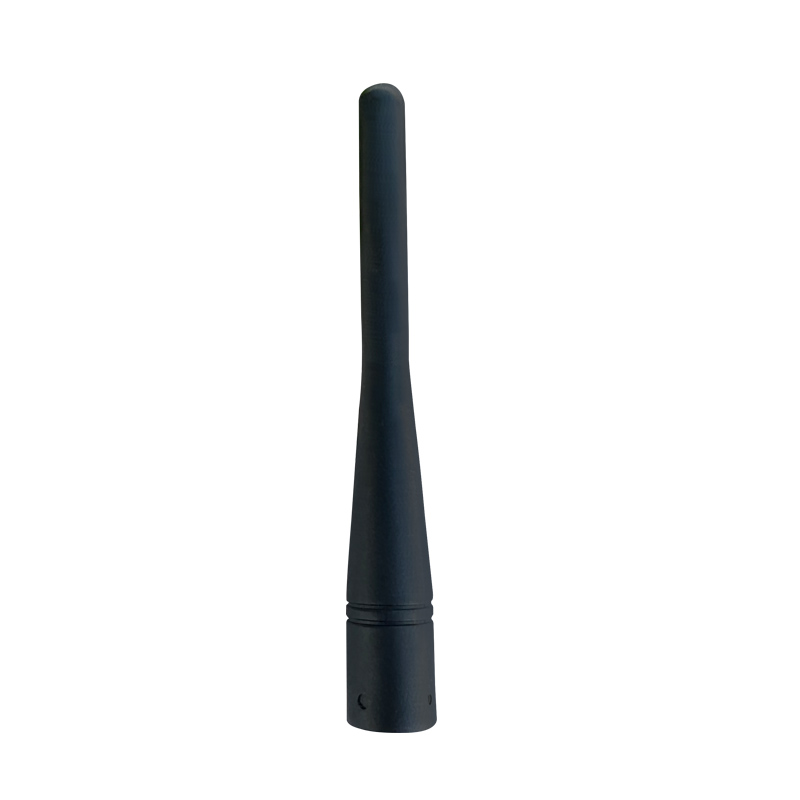

4G LTE Terminal Antenna With SMARP SMA Connector Embedded.jpg

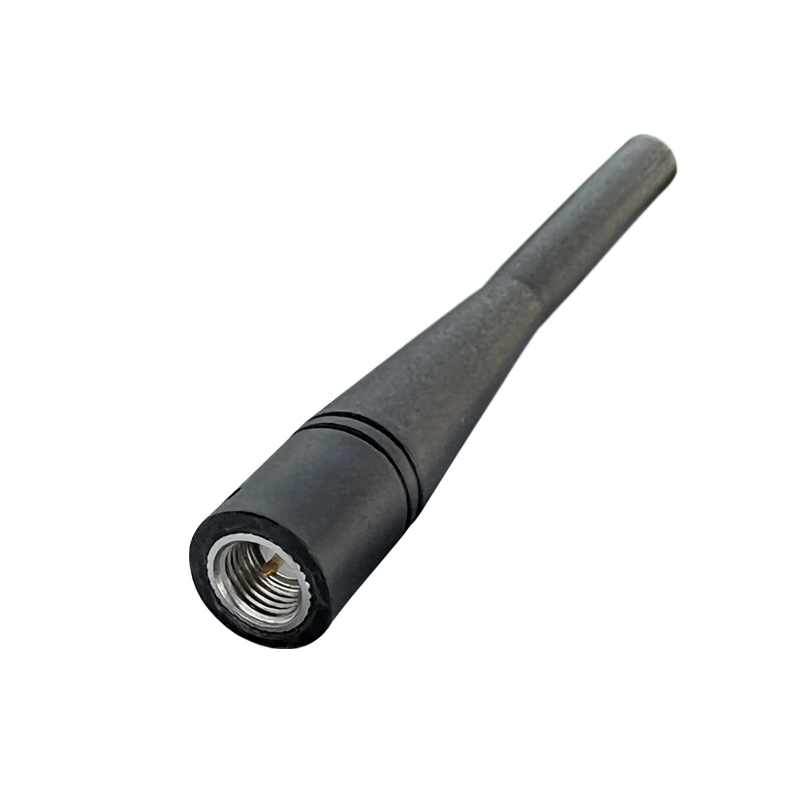

4G LTE Terminal Antenna With SMA RP SMA Male Connector Embedded.jpg



Features of 4G/LTE Terminal Antenna With SMA/RP SMA Connector Embedded（AC-Q7027-80J）

Electrical
Frequency Range	698-960/1710-2700MHz
Gain	2.15dBi
V.S.W.R	≤2.5
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	5W
Impedance	50Ώ
Connector	SMA Male/RP SMA Male
Antenna Radome Material	TPU
Mechanical
Dimensions	Φ11x80mm
Weight	7g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
