This directional WiFi Antenna is designed for the 2.4 GHz frequency band and supports all established WiFi standards (IEEE 802.11 b/g/n).
With its real good technical design and the gain of 23dBi allows you to build up very qulitative links on long distances. The enclosure of this antenna is made of solid ABS.
The robust, light weight and UV resistant construction is weatherproof (IP66 rating), reliable and durable.

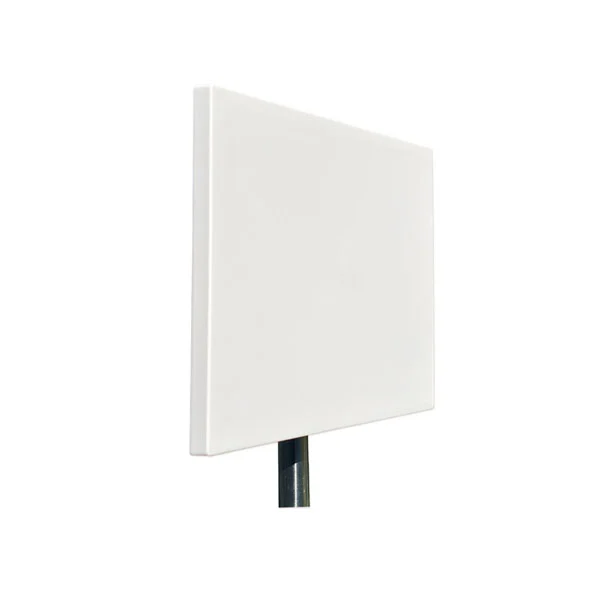

The WiFi Panel Antenna is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles)is included.
The WiFi Antenna has a N female socket connector. Suitable coax antenna cables are available at our Webshop.
| Electrical | |
| Frequency Range | 5150-5850MHz |
| F/B Ratio | ＞28dB |
| Gain | 23dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Horizontal Beam width | 11° |
| Vertical Beam width | 11° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 330x330x25mm |
| Weight | 2KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Low profile, High gain, wide band client antenna is Great for use with Ubiquiti and Mikrotik high power long range radios.
For best performance, users can use an antenna of the same Gain or higher at the other connection end to take advantage of this antenna's powerful signal transmission.
Outdoor Directional Antenna is ideal for operating in modes such as point-to-point and others that require a high gain directional antenna.
