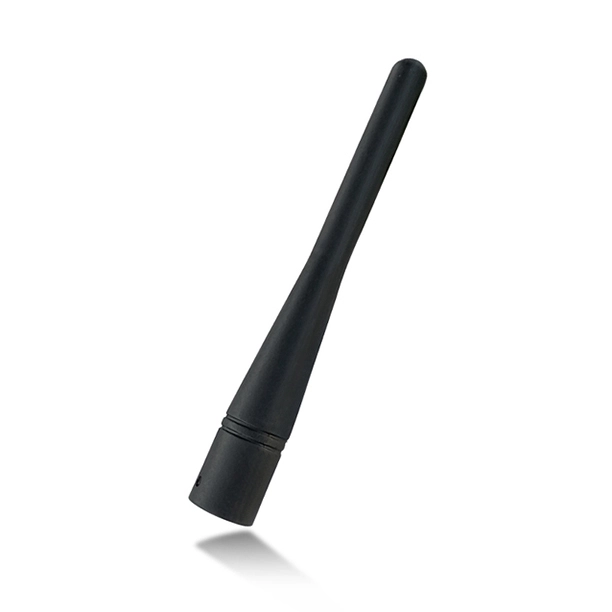

LoRa antenna for metering, industrial, and environmental monitoring operates in the 868 MHz ISM band.
Terminal SMA plug mount antenna is ideal for mobile small form factor applications.
At only 80mm in length an omni-directional pattern with a peak gain 2.15dBi ensures constant reception and transmission.
The antenna housing uses PE material which allows for robust handling while remaining lightweight.
| Electrical | |
| Operating Frequency | 865-868 MHz |
| Bandwidth | ±3MHz |
| Gain | 2.15dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector Type | SMA male /RP SMA |
| Antenna Radome Material | TPU |
| Mechanical | |
| Dimensions | Φ11×80mm |
| Weight | 7g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Using the license-free ISM frequency bands, LoRa is a long-range, but low-power wireless technology that is increasingly being used for IoT technology.
By wirelessly enabling devices and terminals to operate using LoRa technology, applications can be developed for control and monitoring without the need to use mobile cellular networks such as GSM, 3G or LTE.
All of the LoRA enabled nodes will need an antenna of some description and here we look at some options to help enable your 868 MHz IoT environment.
