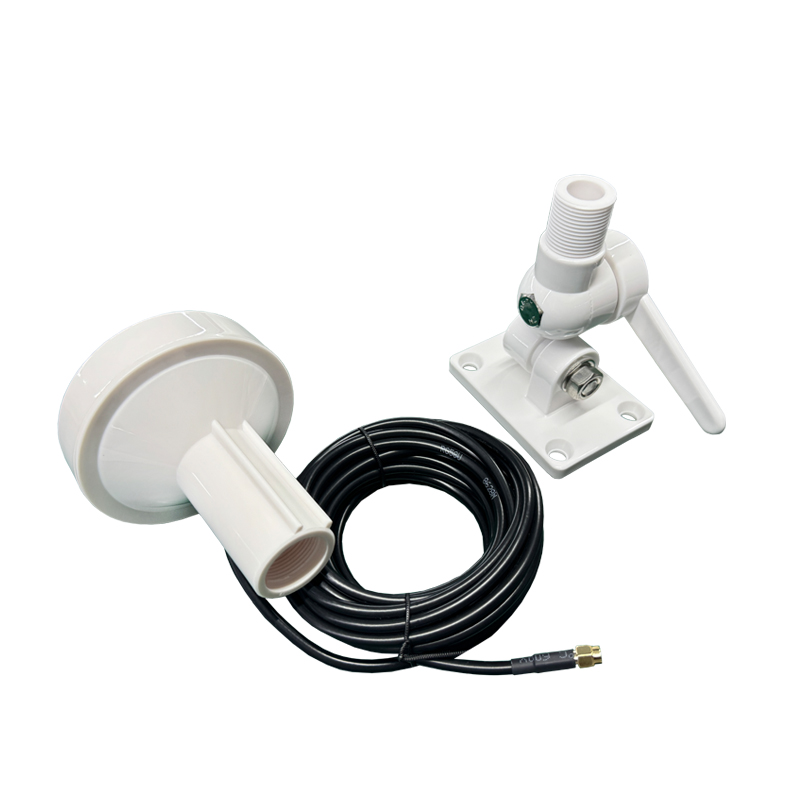

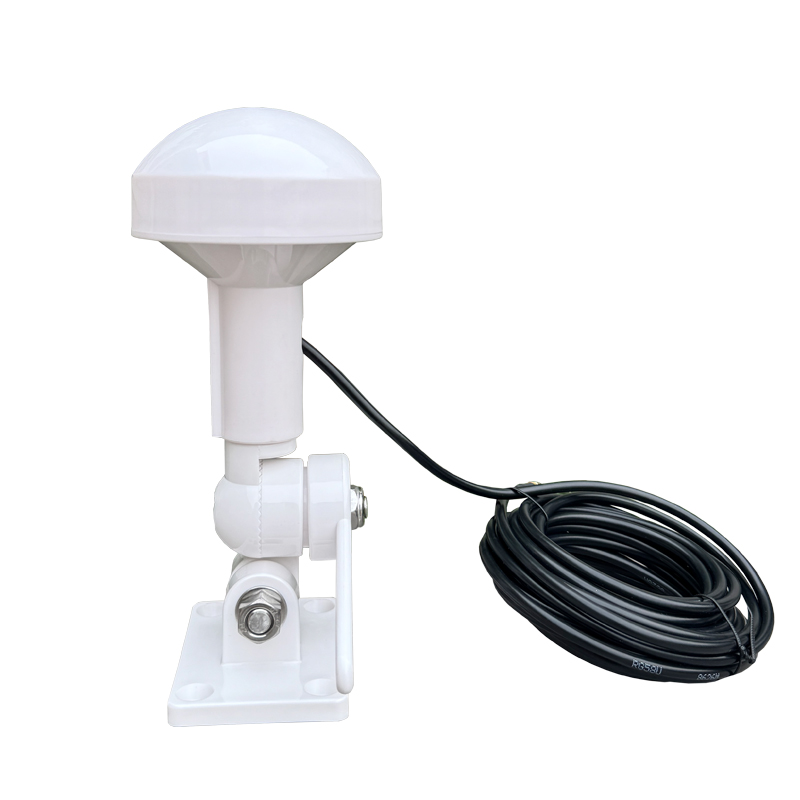

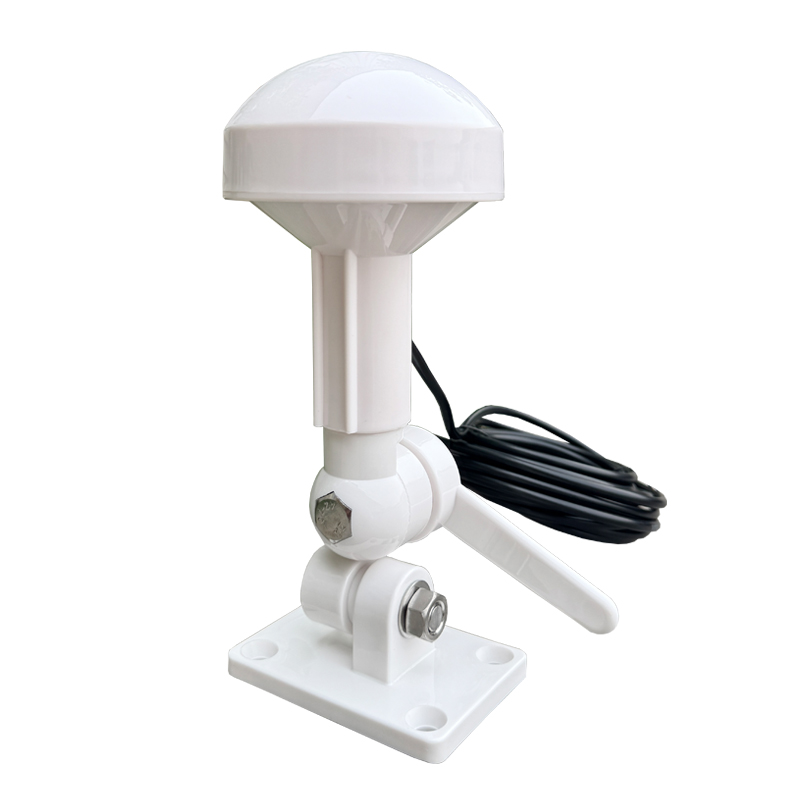

Specifications of Marine GPS Active Navigation Antennas With Base(AC-GPS-09WB)

Electrical
Frequency Range 1575.42MHz±3MHz
Polarization TypeRHCP
Impedance50Ω
LNA Gain38dB
Noise Figure1.5dB
V.S.W.R<1.5
DC Voltage2.2-5.0V
DC current5-15mA
HousingWhite
CableRG58U
Length3M
ConnectorSMA Male
Antenna Radome MaterialABS

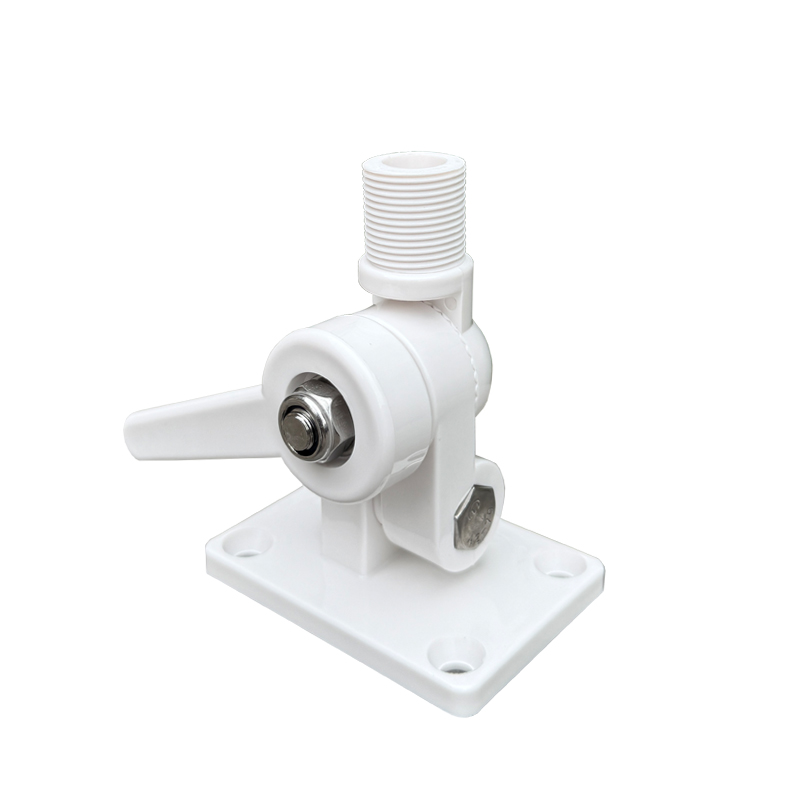

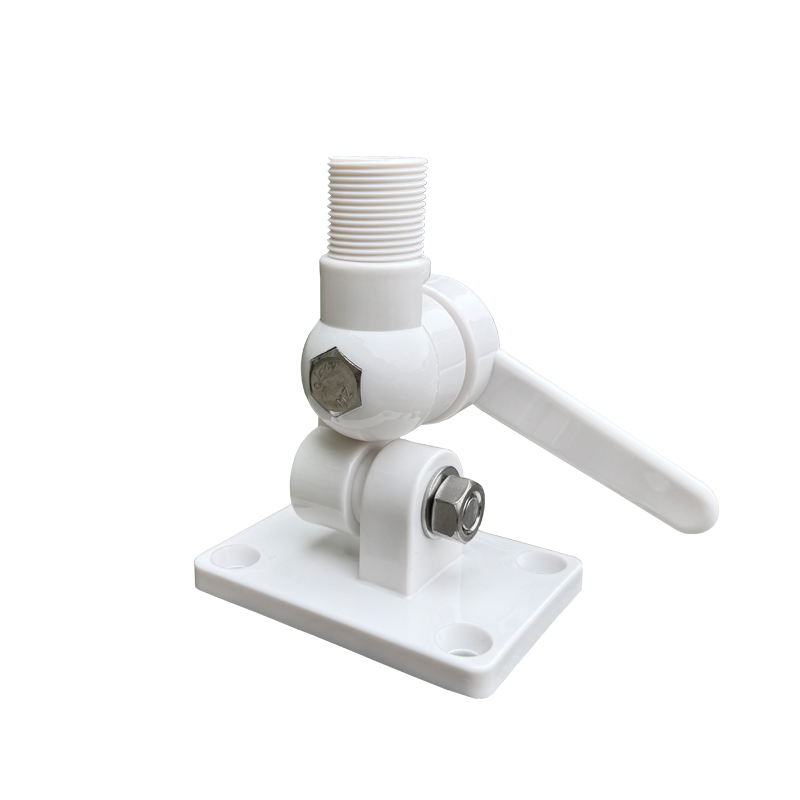

Mounting way Screw Mount
Mechanical
SizeΦ96x126mm
Weight520g
Operating Temperature-40℃~+80℃
Relative Humidity55%-75%RH
WaterproofIP67(Not include the line port)
RoHS CompliantYES
