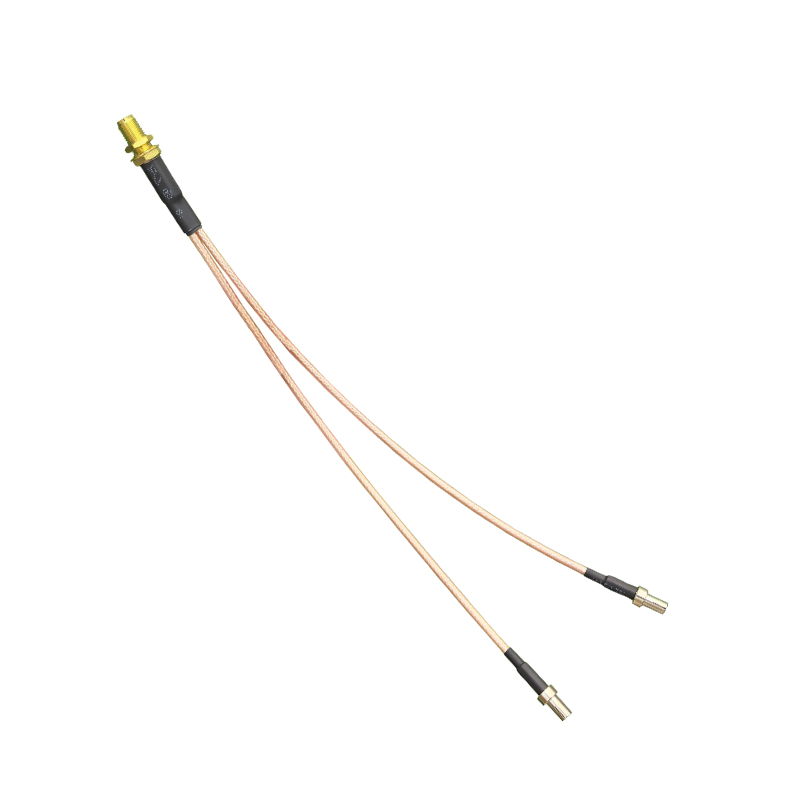

These TS9-Male to SMA-Female adapters use high-quality RG178/316 coxia cable that is durable and strong,with minimal insertion loss. Unlike most other adapters,our pigtail adapters won't fall apart during installation.
With our SMA to TS9 Cable Assemblies, you can be certain of a consistently high level of signal integrity and dependability.
They are the perfect choice for connecting antennas, routers, and a multitude of RF equipment.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | Standard SMA Female Straight |
| Connector 2 | Standard TS9 Male Straight x2 |
| Plating | Goldplated |
| RF Cable Type | RG316/178 |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |
Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams are always enthusiastic and welcome to visit us and join hands for a prosperous future.
