LoRa Radio 868MHz Point to point, point to multi-point system Adopt wideband technology, fast transmission speed, good performance Strong anti-interference capability Small size, install and use conveniently. This RHCP RFID Panel Antenna provides reception and transmission of signals in the 865-868 MHz frequency band. Both VSWR and axial ratios are both excellent and allow the user to achieve the maximum performance for an antenna of this type.
An optional articulating mount allows either wall or mast mounting. Flat panel antenna with circular polarization, designed to be integrated into RFID gates and checkpoints.
Its robust design with IP65 protection class is suitable for industrial applications.
| Electrical | |
| Frequency Range | 865-868MHz |
| F/B Ratio | ≥20dB |
| Gain | 6dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 90° |
| Vertical Beam width | 90° |
| Polarization | Circular or Linear |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Female |
| Antenna Radome Material | ASA |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Dimensions | 130x130x20mm |
| Weight | 345g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |

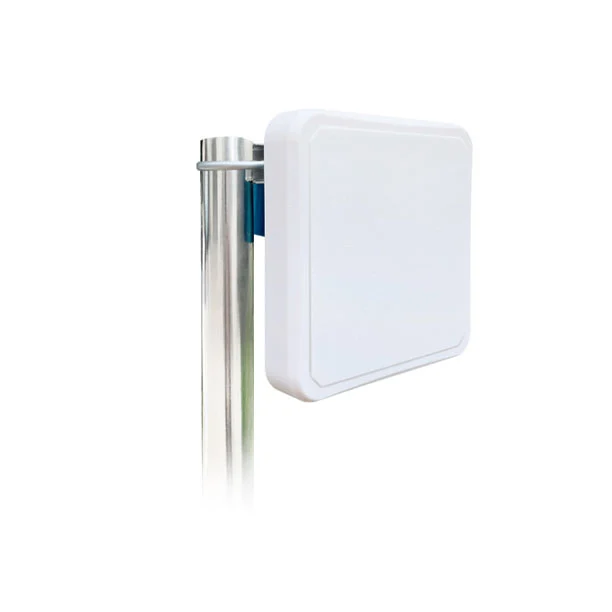

The antenna AC-D868W05P is designed for mast/pole installation.
Antenna Operated at 865-868MHz frequency band suit for Cellular, LoRa, RFID, ISM, Helium etc applications.
The antenna with Outdoor pole mount installation,Rugged and weatherproof,Typical N Female connector.
