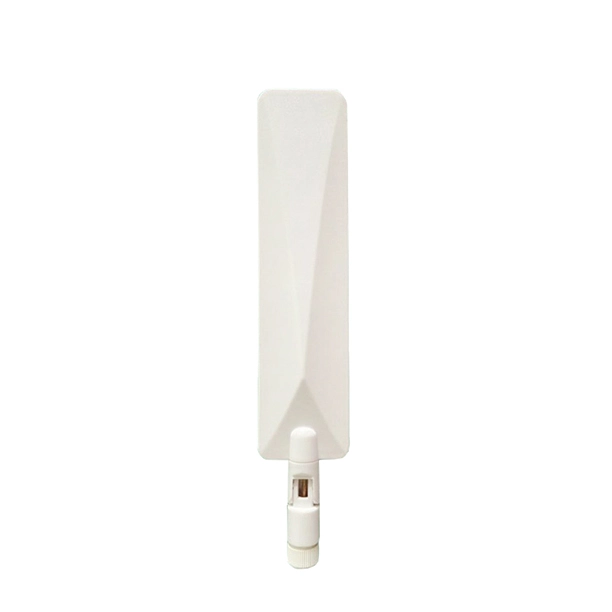

This is an Ultra-Wideband Omni-Directional antenna cover 698-960/1400-2700&3300-6000MHz.
It is primarily designed for use with 4G LTE modules and devices, Its high efficiency across the ultra wide band and is backward compatible with 2G and 3G cellular applications such as UHF, GSM, LTE, UMTS, WI-FI /Wireless applications.
With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance.
The antenna is a ground plane independent antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated.
The antenna blade can swivel 90 degrees from the connector accommodating different installation configurations.
| Electrical | |
| Frequency Range | 698-960/1710-6000MHz |
| Gain | 5dBi |
| V.S.W.R | 698MHz≤2.0; 800-1710MHz≤1.5; 2700MHz≤2.5; 3500-6000MHz≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| Mechanical | |
| Dimensions | Φ13x220mm |
| Weight | 32g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
