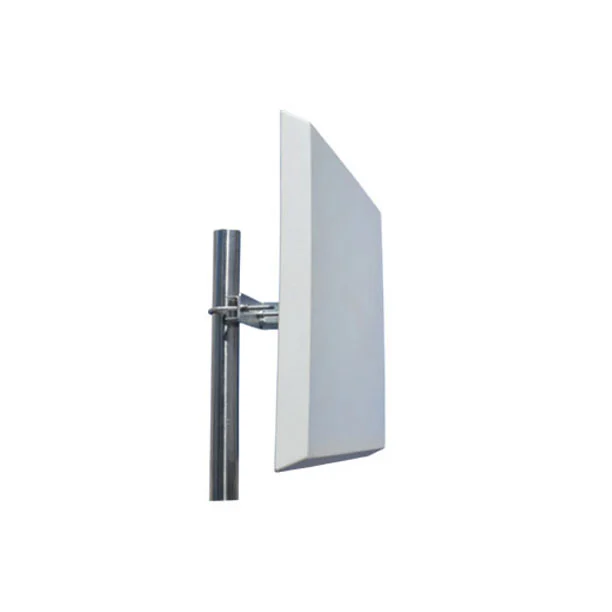

The IP65-rated High-Gain MIMO Panel Directional Antenna is made from weatherproof and corrosion-resistant material, and is suited for both indoor and outdoor applications.
MIMO Panel Directional Antenna extends the coverage range of a wireless network in a single direction.
It is ideal for delivering extended access range. It requires an access point or wireless router with a extra pigtail cable connect.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| F/B Ratio | ≥25dB |
| Gain | 4x15dBi |
| V.S.W.R | <1.5Type;Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 18° |
| Vertical Beam width | 18° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 4xN Female |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 330x330x47mm |
| Weight | 2.8KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This MIMO external antenna can get the absolute best data rates with the 2.4G WIFI router.
The IP65-rated is suited for both indoor and outdoor applications.
Our 4x4 MIMO Panel antenna offers up to 15 dBi high gain.
