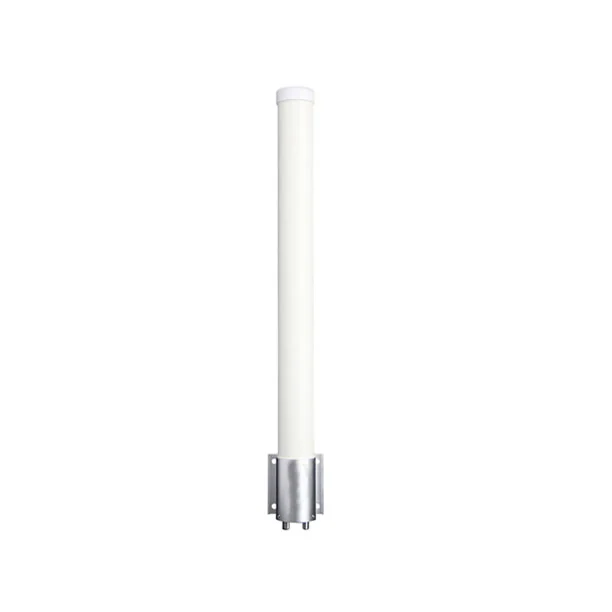

Dual Polarized high gain omnidirectional base station antenna optimized for 2.4 GHz frequencies.
This antenna is ideally suited for multipoint applications where long range and wide coverage is desired. It is actually one antennas have 2 connector, horizontal polarized and vertical polarized for both ports. Rugged and Weatherproof.
The antenna has a peak gain of 3.5dBi across the bands of operation, which relates to a wide vertical beamwidth. This will allow for optimum coverage in harsh sea conditions.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 2x10dBi |
| V.S.W.R | <1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 7° |
| Polarization | Horizontal and Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Ø75x1100mm |
| Weight | 1.8KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Operates from 2400 to 2483 MHz which is ideal for WIFI MIMO 2x2 applications in WIFI band.
The omnidirectional antenna is intended for mounting on a mast or a wall bracket. A corresponding mounting bracket and a pipe clamp are included in the scope of delivery.
Features a compact and unobtrusive UV resistant radome. Its modern design and aesthetics helps it blend into almost any environment or structure.
