This 4G antenna enables you to receive and transmit mobile phone signal in areas where this may be difficult, such as underground buildings, basements, rural areas or weak signal areas in general.
With MIMO technology (Multiple-Input Multiple-Output) the antenna uses multiple transmitters and receivers to transfer more data at the same time.

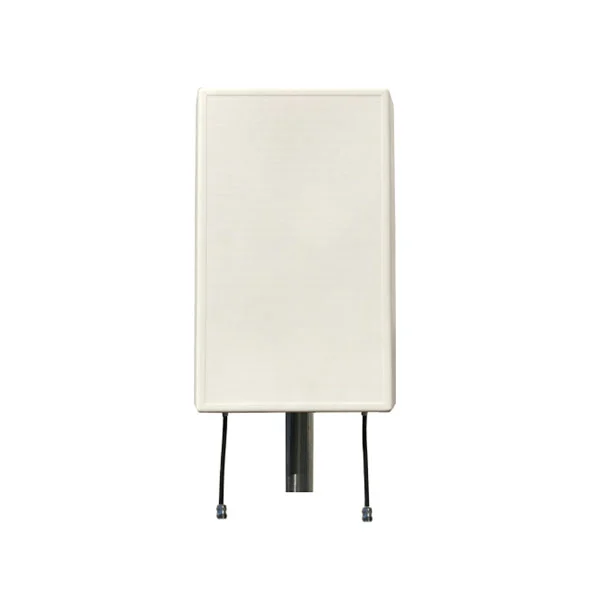

The IP65-rated High-Gain MIMO Panel Directional Antenna is made from weatherproof and corrosion-resistant material, and is suited for both indoor and outdoor applications.
MIMO Panel Directional Antenna extends the coverage range of a wireless network in a single direction.
It is ideal for delivering extended access range.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 9/10dBi |
| F/B Ratio | 20dB |
| V.S.W.R | ≤1.8 |
| Radiation | Direction |
| Horizontal Beam width | 80° |
| Vertical Beam width | 80° |
| Polarization | ±45 |
| Lightning Protection | 50W |
| Maximum Input Power | 50Ώ |
| Impedance | 2XN Female |
| Connector | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Pole mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 340x225x60mm |
| Weight | 1.4KG |
| Operating Temperature | -40℃ to+60℃ |
| RoHS Compliant | YES |
With MIMO technology (Multiple-Input Multiple-Output) the antenna uses multiple transmitters and receivers to transfer more data at the same time.
The directional panel antenna is a dual-polarized 4G LTE antenna that works on the full range of 4G LTE mobile frequencies 698-2700MHz.
The IP65 weatherproof and corrosion-resistant material,and is suited for both indoor and outdoor applications.
