915MHz LoRa IP66 L Bracket Mounting Terminal Antenna（AC-Q915-900BFZJ）

Name: 915MHz LoRa IP66 L Bracket Mounting Terminal Antenna（AC-Q915-900BFZJ）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This Bracket Mount 915MHz Antenna delivers reliable communication performance for Sub-1GHz IoT, M2M telemetry,and LPWAN devices.Operating within the 902-928MHz ISM band,it ensures stable,

long-range connections with excellent signal penetration through walls and physical obstacles.

Its rugged IP66 weatherproof housing protects the antenna,making it perfect for harsh industrial environments and outdoor deployments.Additionally,the integrated ultra-low loss coaxial cable

maximises signal transfer efficiency.The antenna achieves an optimised gain tailored for the 868MHz frequency,significantly improving overall network coverage and battery life for remote sensors.

This bracket mount antenna installs easily on walls, panels,or masts.It works perfectly with LoRa gateways,wireless sensor networks, remote monitoring equipment,and automated control systems.

Get Antenna Price 

915MHz LoRa IP66 L Bracket Mounting Terminal Antenna with N Female Connector.jpg

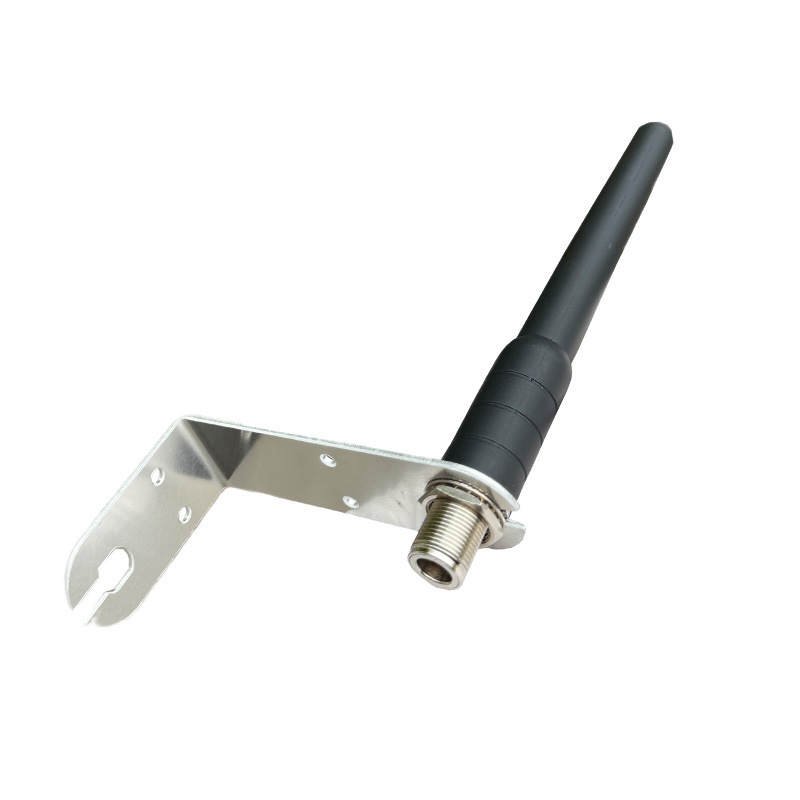

915MHz LoRa IP66 L Bracket Mounting Terminal Antenna with N Type Connector.jpg

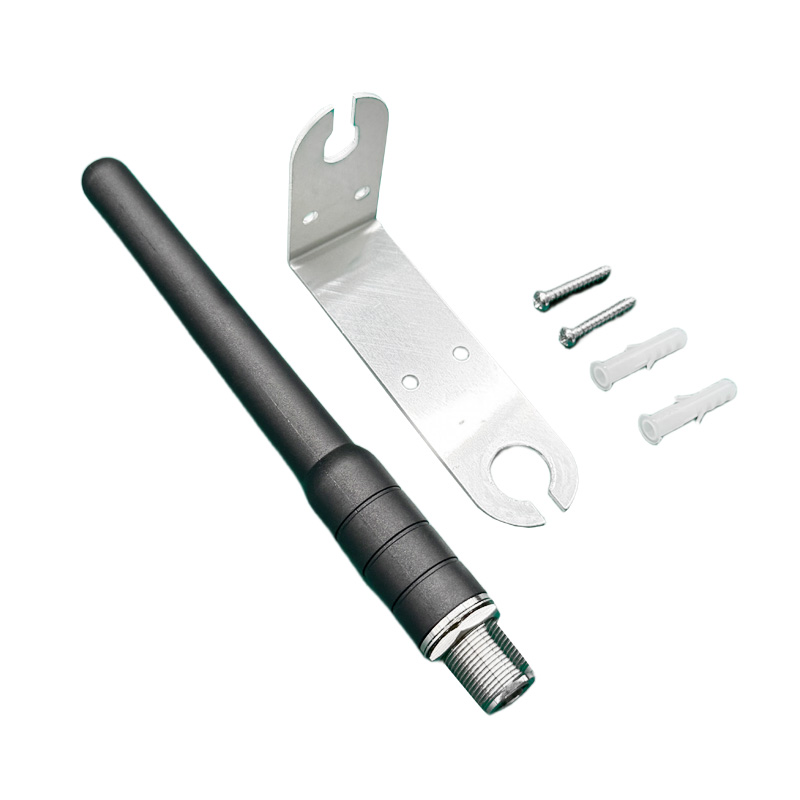

RFID 915MHz IP66 L Bracket Mounting Terminal Antenna.jpg

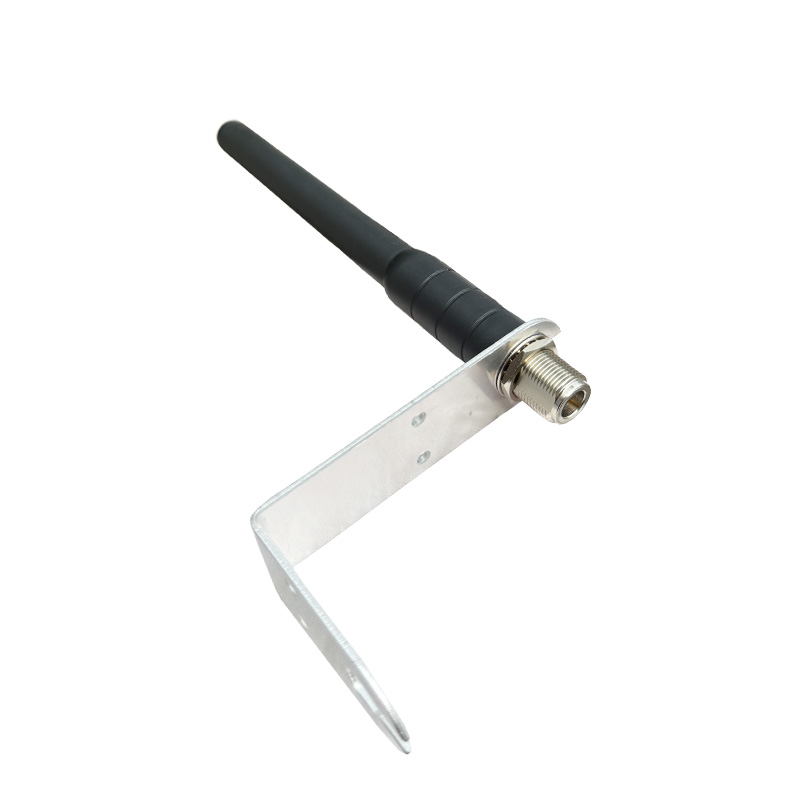

915MHz LoRa IP66 L Bracket Mounting Terminal Antenna with N Female.jpg

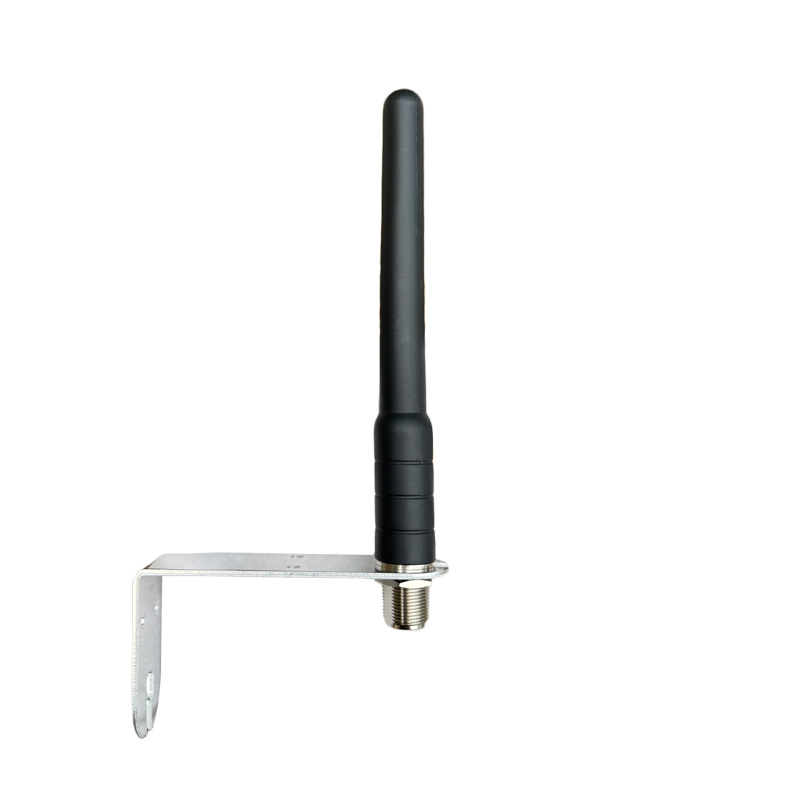

915MHz LoRa IP66 L Bracket Mounting Terminal Antenna.jpg



Specification of 915MHz LoRa IP66 L Bracket Mounting Terminal Antenna（AC-Q915-900BFZJ）

Electrical
Frequency Range	902-928MHz
Gain	3dBi
V.S.W.R	≤2.0
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	5W
Impedance	50Ώ
Connector	N Female
Antenna Radome Material	TPE
Mounting way	Wall Mount
Mechanical
Dimensions	Φ20x184mm
Weight	78g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
