Yagi antennas are typically very directional and are used for point to point,or to extend the range of a point to multi-point system.

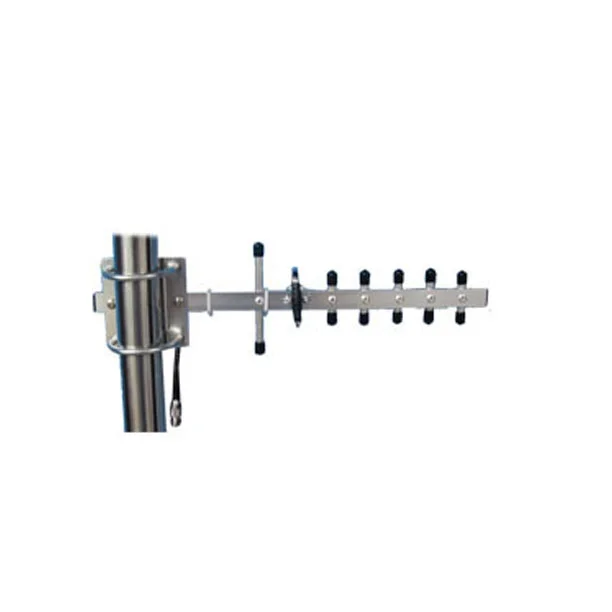

Our AC-D2500Y10-07 antenna offers an extremely wide frequency range, high gain and Aluminum material.
Applications include 4G, 3G, LTE, PCS, DCS, AWS, IMT,WCDMA, and cellular.
This antenna has an excellent front to back ratio to block unwanted signals and provides outstanding corrosion resistance and longevity in the harshest environments.
| Electrical | |
| Frequency Range | 2400-2600MHz |
| F/B Ratio | ＞18dB |
| Gain | 10dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 58° |
| Vertical Beam width | 50° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female or customized |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | Aluminum Alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 400x70x45mm |
| Weight | 0.68KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The Outdoor directional Yagi Antenna features a highly directional design that precisely targets wireless signals
Made of aluminum radiation elements with a traditional structure, it brings you the most durable working performance in rugged outdoor environments.
With its durable construction, easy installation, and excellent directional performance.
