Foldable High-Performance 4G/5G LTE Terminal Dipole Antenna（AC-Q6060-YZ196）

Name: Foldable High-Performance 4G/5G LTE Terminal Dipole Antenna（AC-Q6060-YZ196）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This 4G/5G LTE dipole antenna, designed specifically for fixed and mobile terminals, is an ideal choice for improving network connection stability.Its unique "ground plane independent" design allows it to be flexibly installed on the surfaces of various devices such as routers, modems, and gateways, and can operate efficiently without the need for a metal chassis.

Full frequency support: Perfectly covering the mainstream frequency bands of 600-6000MHz,backward compatible with GSM, 3G (UMTS), and 4G LTE networks, ensuring worry free global roaming.

Flexible adjustment design: equipped with SMA male head rotary joint, supporting three levels of angle locking, helping you easily adjust the direction to capture the best signal.

Get Antenna Price 

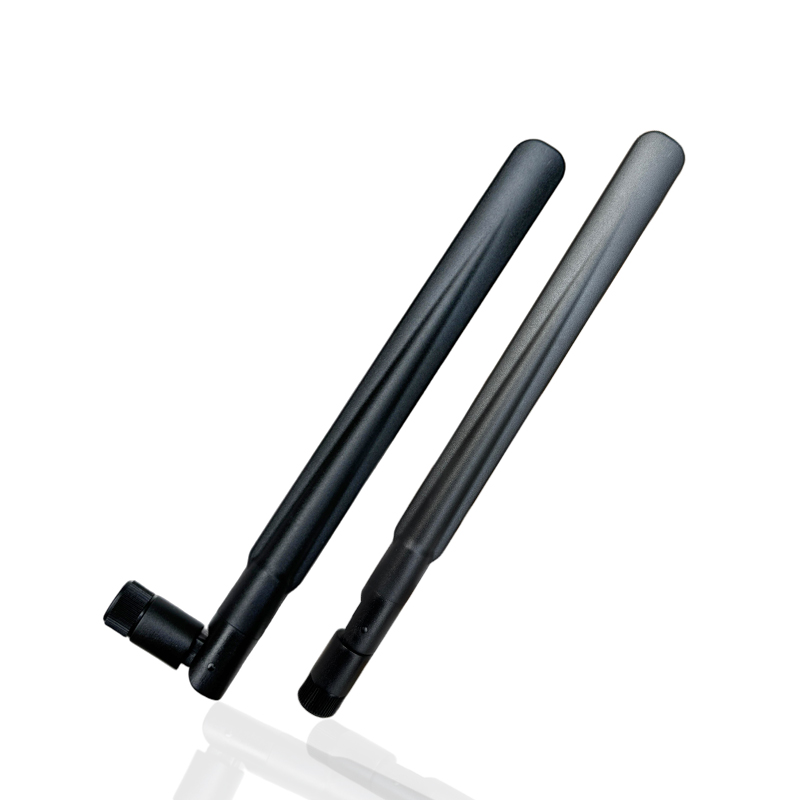

High-Performance Foldable 4G LTE Terminal Dipole Antenna.jpg

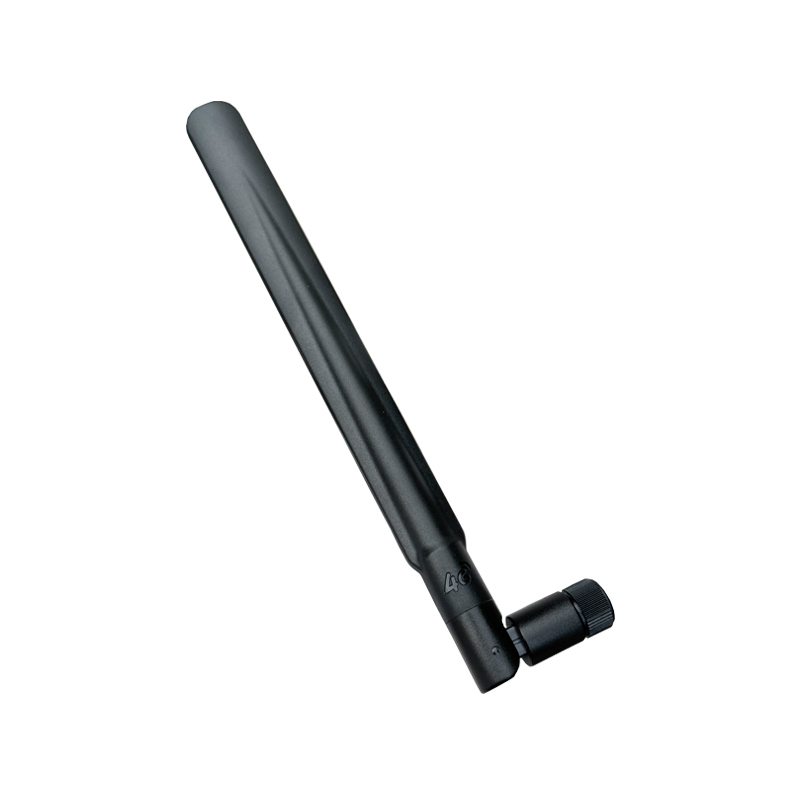

High-Performance Foldable 4G LTE Dipole Terminal Antenna.jpg

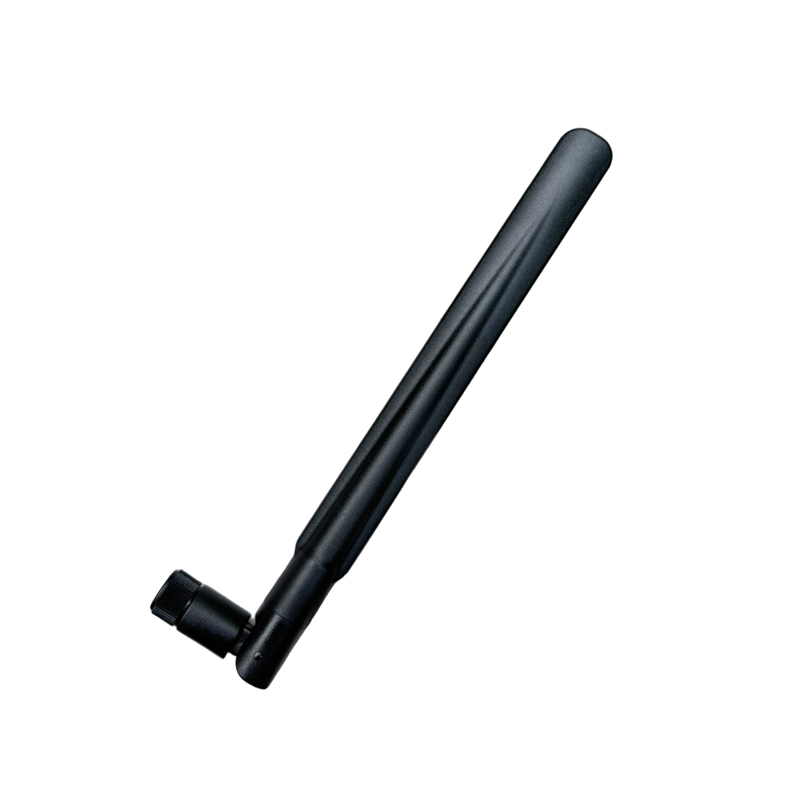

LTE 4G High-Performance Foldable Terminal Dipole Antenna.jpg

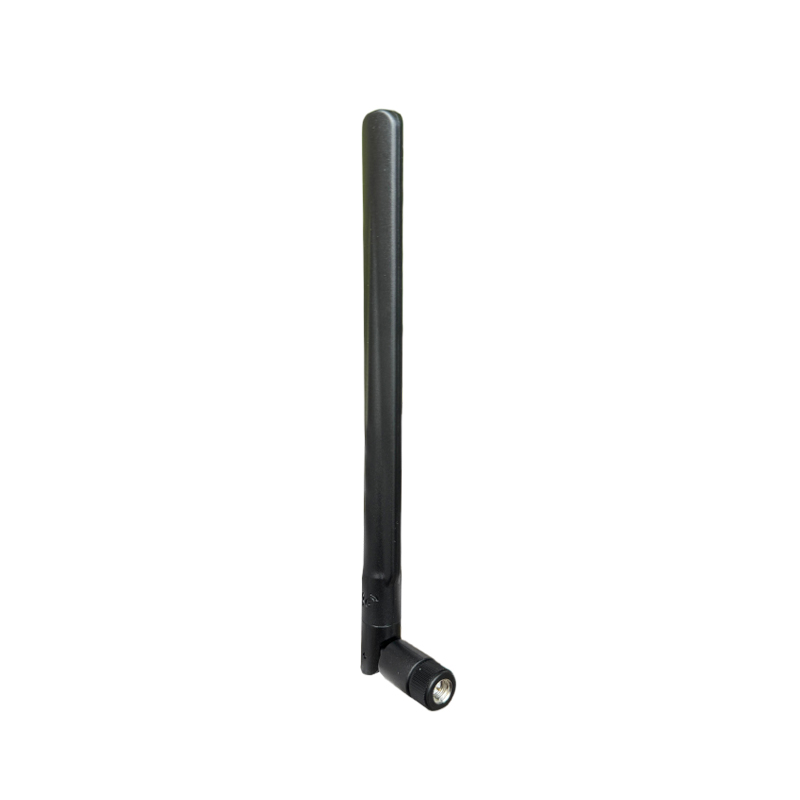

High-Performance Foldable 4G LTE Terminal Dipole Antenna with SMA Male Connector.jpg

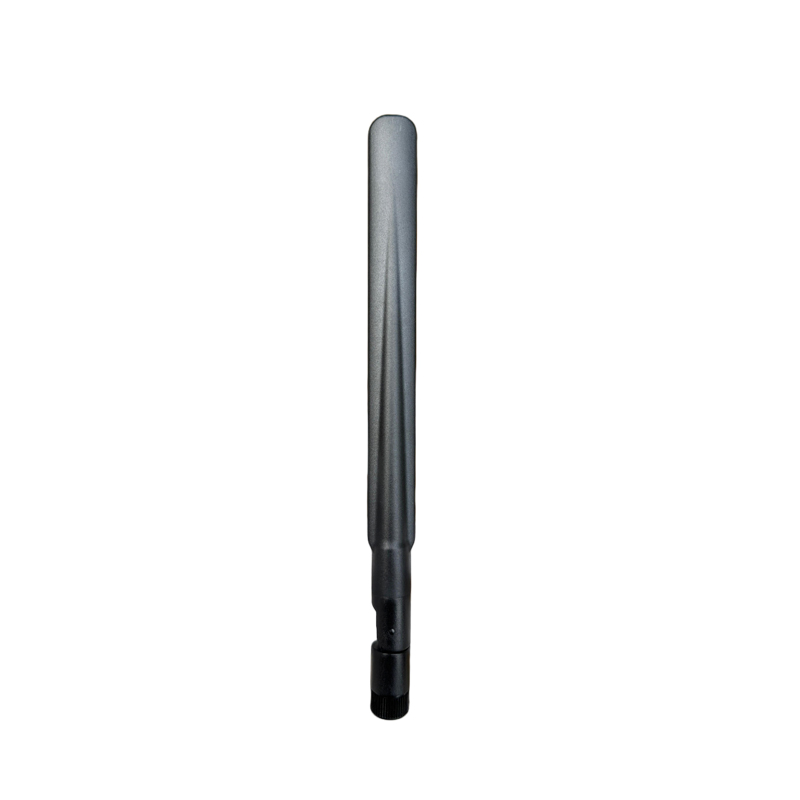

4G LTE High-Performance Foldable Terminal Dipole Antenna.jpg



Specification of Foldable High-Performance 4G/5G LTE Terminal Dipole Antenna（AC-Q6060-YZ196）

Electrical
Frequency Range	600-960/1710-6000MHz
Gain	3/5dBi
V.S.W.R	600-960MHz≤4.5;1710-6000MHz≤2.0
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	5W
Impedance	50Ώ
Connector	SMA Male
Antenna Radome Material	ABS
Mechanical
Dimensions	Φ13x196mm
Weight	18g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES

Features of Foldable High-Performance 4G/5G LTE Terminal Dipole Antenna

01

Frequency response: Supports the full frequency range of 700 MHz to 6000 MHz, covering LTE, GSM, Cellular, and UMTS standards
02

Application areas: Suitable for various scenarios that require wide area cellular network coverage, including but not limited to M2M telemetry, remote signaling, wireless gateways, and mobile routing devices.
03

Durable and sturdy: Equipped with high-quality injection molded casing, the appearance is low-key and the structure is robust, which can adapt to various complex deployment environments.
