Omni-directional antennas are the right choice for situations where you need to be in contact with sources that are in two directions or if you do not know what direction the signals will be coming from.
They may be mounted right side up or tipped upside down depending upon the desired pattern.
They also feature a very versatile clamp mounting system that will fit most every situation you will encounter.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 10dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 12° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-direction |
| Polarization | Vertical |
| Lightning Protection | DC-Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Length | 30CM |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | Φ38x3600mm |
| Weight | 4KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |

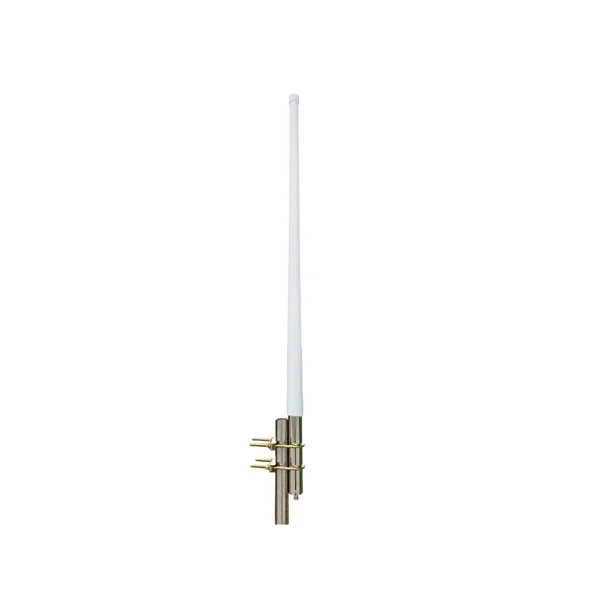

Made of fiberglass this antenna is ideal for heavy-duty and high-power LoRa base stations but can be used with LoRa nodes as well.
This is a Full Wave High Gain Omni Antenna for LoRaWAN Gateway and Base Station applications.
The Outdoor antenna for public and it content RoHS Compliant.
