4.9-6.4GHz Outdoor High Gain 24dBi MIMO Dish Antenna 600mm White Color（AC-D4964G24-06WSX2）

Name: 4.9-6.4GHz Outdoor High Gain 24dBi MIMO Dish Antenna 600mm White Color（AC-D4964G24-06WSX2）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The MIMO dish parabolic antenna consists of full Parabolic reflector having a diameter of 0.6 meters for use in point to point analogue and digital communication radio link.

The antenna covers 1500 MHz bandwidth.The mounting arrangement of dish parabolic antenna permits to change the polarization from horizontal to vertical and vice-versa by mounting hardware fitted at rear

end of the antenna. The antenna is supplied with +/-5 degrees elevation tracking mechanism.

The dish parabolic antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise.

The grid parabolic antenna is highly suitable for long range Outdoor signal coverage.

Get Antenna Price 

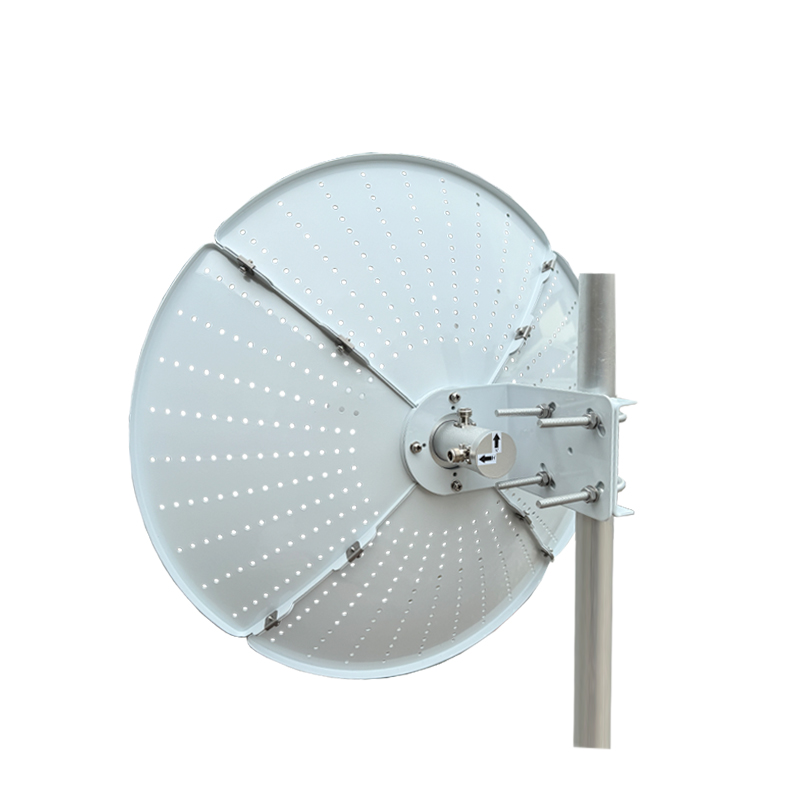

4.9-6.4GHz Outdoor 24dBi MIMO Dish Antenna.jpg

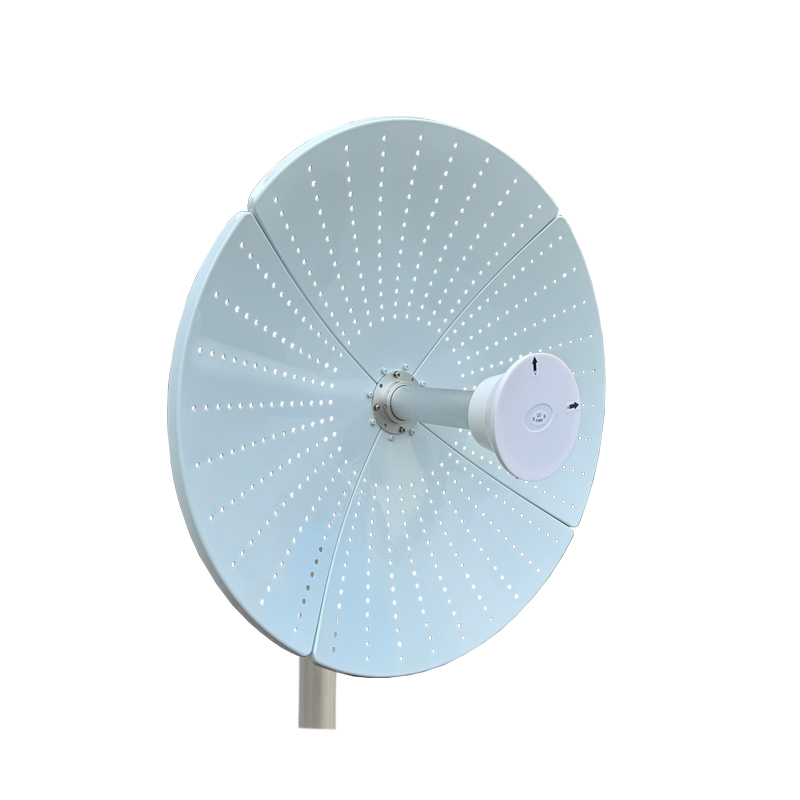

4.9-6.4GHz 24dBi MIMO Dish Antenna 600mm White Color.jpg

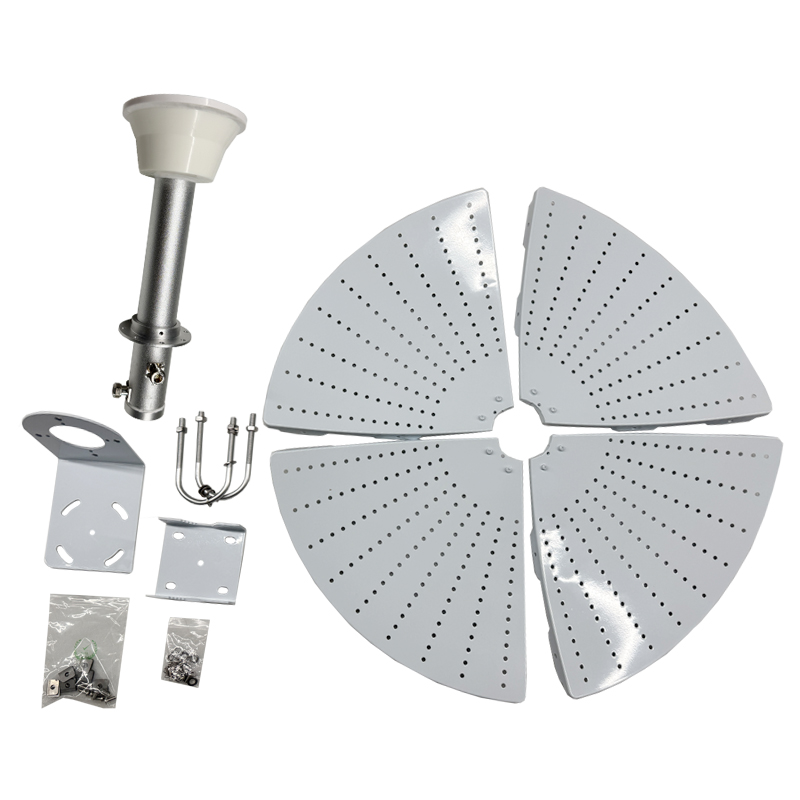

4.9-6.4GHz Outdoor MIMO Dish Antenna.jpg



Electrical
Frequency Range	4900-6400MHz
F/B Ratio	≥40dB
Gain	2x24dBi
V.S.W.R	≤2.0
Radiation	Direction
Horizontal Beam width	7°
Vertical Beam width	9°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	2xN Female
Antenna Radome Material	Aluminium alloy
Radome Color	White
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	Φ600mm
Weight	3.3KG
Operating Temperature	-40℃ to+70℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
