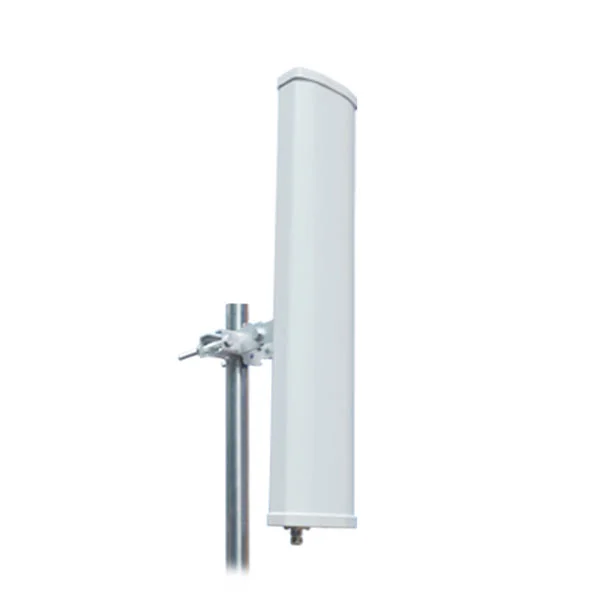

This type 2.4GHz antenna Wide H-plane sectored antenna offers the systems integrator a solution for sectorized base stations.
Enclosed in an attractive, PVC weatherproof radome, the antenna satisfies indoors aesthetic requirements.
It is rugged enough to withstand outdoor exposures too
(1)high gain and good sector pattern, petals small, vertical direction Angle is easy to control
(2)H or V Polarization Full day for working Durable, corrosion resistance Optimized dimension
| Electrical | |
| Frequency Range | 2400-2500MHz |
| Band width | 100MHz |
| F/B Ratio | ≥25dB |
| Gain | 14dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 90° |
| Vertical Beam width | 15° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | 505x120x95mm |
| Weight | 3KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The antenna housing is made of UV-resistant PVC material, which is very durable and can be suitable for all kinds of extreme weather outdoors.
This sector antenna can be use for Planned City Wide / Urban Area Mesh Radio Networks application.
The antenna's long narrow form gives it a fan-shaped radiation pattern, wide in the horizontal direction and relatively narrow in the vertical direction.
