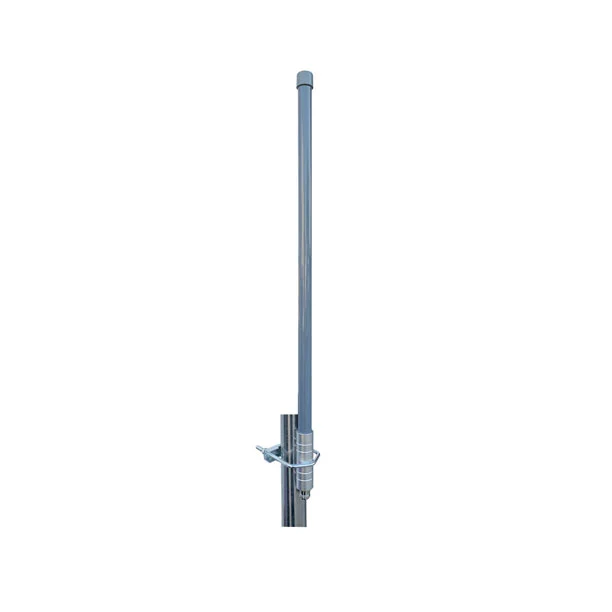

2.4GHz/5GHz WiFi system IEEE802.11a/b/g point to multipoint application .The enclosure of the antenna is made of heavy fiberglass with large barrel spring base
Good impact resistance, waterproofing and anticorrosion ability.The robust, light weight and UV resistant. Only one antenna is needed due to multi-band operation. 360°of coverage area across all bands of operation in a single compact Radome. This heavy duty antenna is designed for installation on bull bars or sports bars with a suitable mounting bracket.
Small size and center mount post make it ideal for mounting on utility, lighting and traffic poles.
| Electrical | |
| Frequency Range | 2400-2483/5150-5875 MHz |
| Gain | 4/7 dBi |
| V.S.W.R | 2400-2483≤1.5@5150-5875≤2.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 35/25° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Male |
| Antenna Radome Material | Fiberglass |
| Antenna Radome Color | White |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Φ30-Φ50mm |
| Mechanical | |
| Dimensions | Φ30x500mm |
| Weight | 450g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The 2.4/5.8G external antenna can be used with many 2.4/5.85G CPE routers, such as Huawei 2.4/5.8G CPE Pro, Vodafone Gigacube 2.4/5.8G router etc.
It is designed for all weather operation.
The benefit to users is that more people can simultaneously connect to the network and maintain high throughput.
