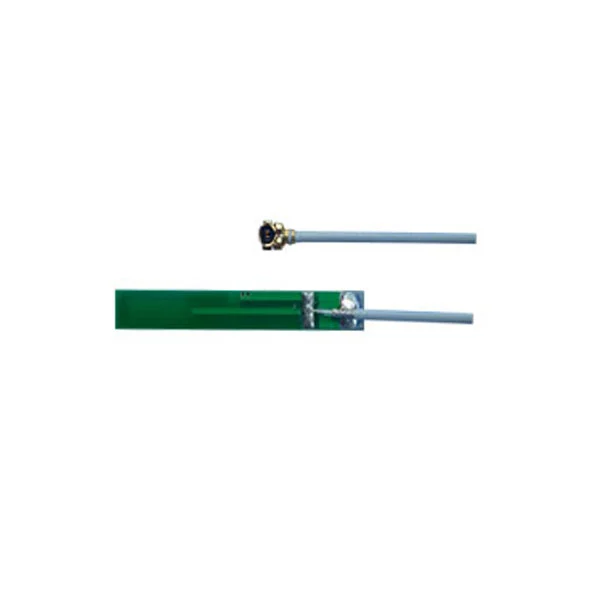

This is a small built-in PCB GSM antenna with IPX connector. Its working frequency is 900/1800 MHz.
Its working frequency is 900/1800 MHz which meets most requirements of GSM applications.
Its very compact size makes it easy to carry and use.
Embedded GSM Systems, For World-wide Use, Vertical Polarization.Electrical connection with the PCB is accomplished by soldering the silver pin through the hole on the PCB.
Compact, ideally suited for stealth applications.Built-in ground plane to allow mounting anywhere.
Cable lengths and connectors are fully customizable.
For good efficiency performance the shortest cable length should however not be less than 100mm.
| Electrical | |
| Frequency Range | 824-896/880-960/1710-1880/1850-1990MHz |
| Gain | 2.15dBi |
| V.S.W.R | ≤2.0 |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Radome Material | FR4 |
| Mechanical | |
| Dimensions | 47x5x1mm |
| Weight | 5g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This PCB antenna is recommended for wide band applications or those using multiple technologies that require an all in one antenna solution.
This embedded antenna include: waterproof/water tight designs, portable solutions, multiband devices.
It is suitable for a host of wireless M2M applications that require an embedded solution.
