4G 5G LTE Band Router And IoT Device 3M Adhesive Antenna（AC-Q7060M03B）

Name: 4G 5G LTE Band Router And IoT Device 3M Adhesive Antenna（AC-Q7060M03B）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This compact 4G 5G LTE adhesive antenna is designed for seamless integration into routers,gateways, and IoT devices requiring reliable cellular connectivity.

Operating across key 4G LTE bands—including 700/800/900/1800/2100/2700MHz and 5G CBRS 3300/3500/3800MHz—it ensures broad network compatibility and stable signal performance for M2M,smart home,and industrial IoT applications.

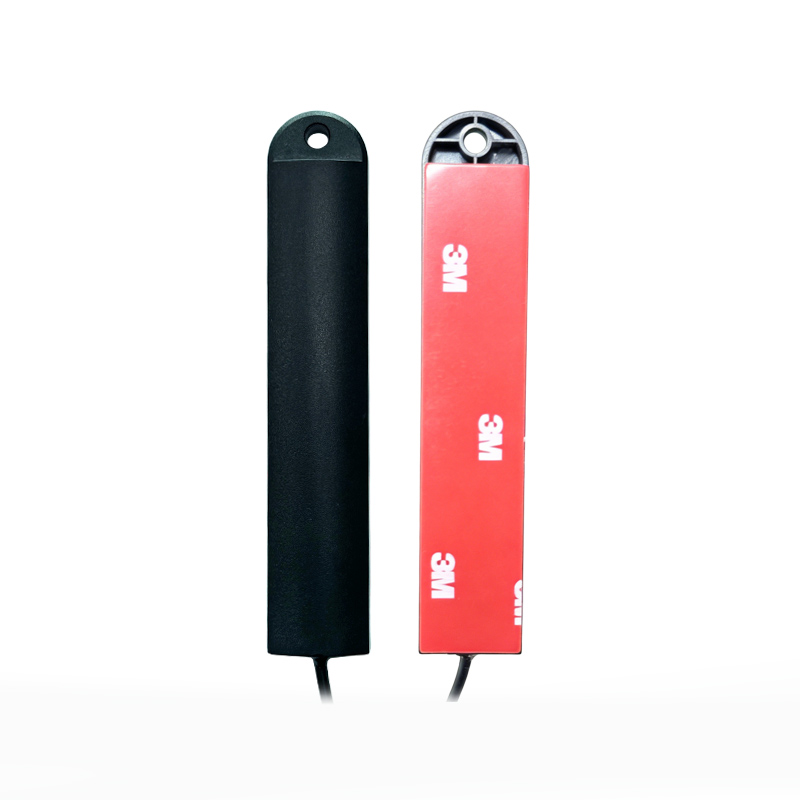

Featuring a low-profile, rectangular housing with pre-applied 3M adhesive backing, the antenna enables quick,tool-free mounting on walls,equipment enclosures,or device casings—ideal for space-constrained or aesthetically sensitive installations.

Its internal PCB design delivers omnidirectional radiation with vertical polarization, 50Ω impedance, and VSWR ≤1.5, maximizing signal efficiency and minimizing reflection loss.

Get Antenna Price 

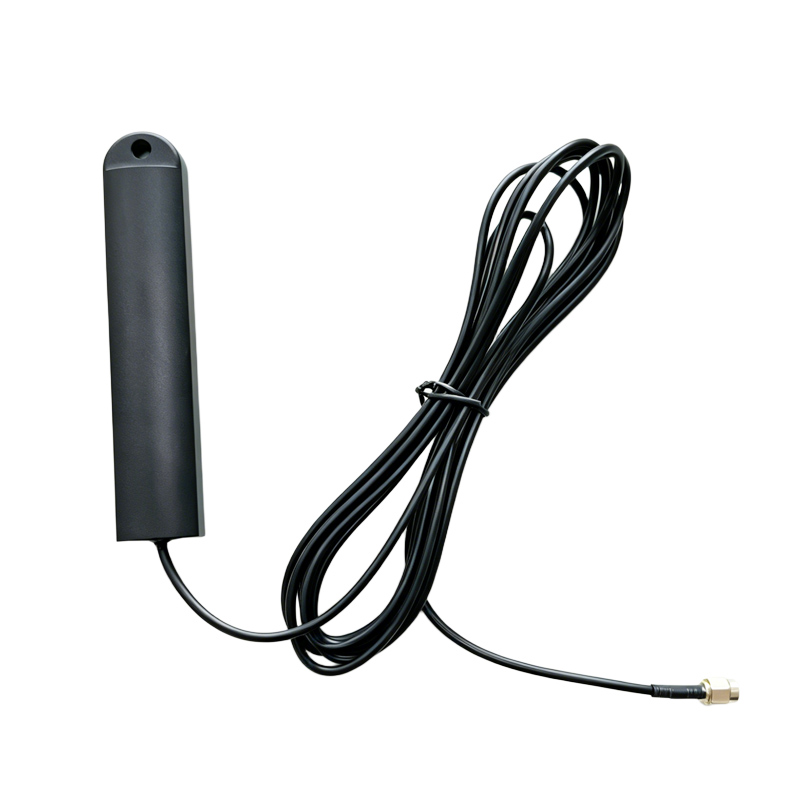

5G LTE Mobile Antenna External Adhesive Mount.jpg

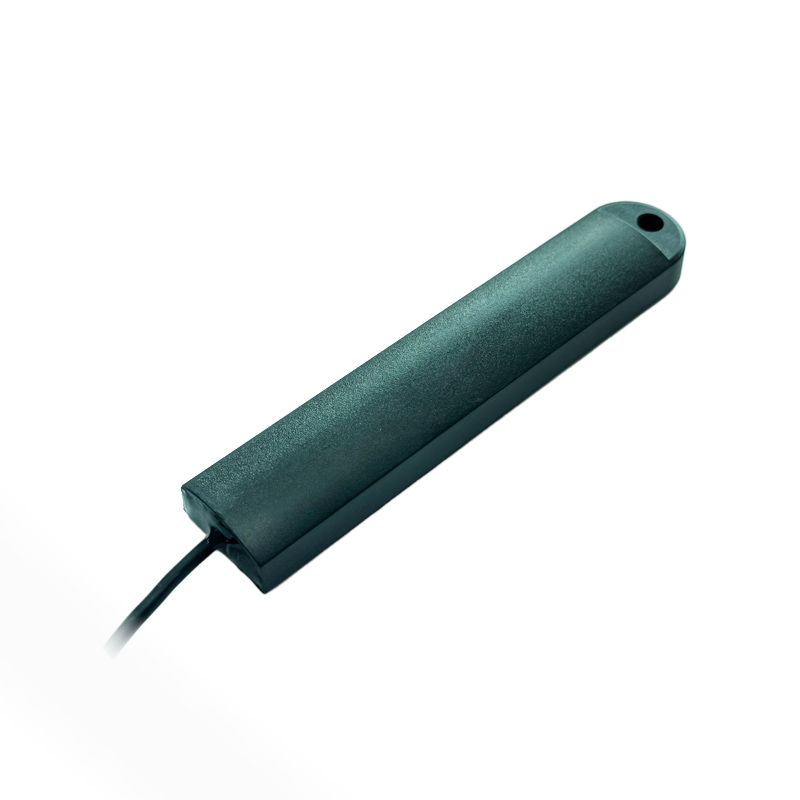

5G LTE Adhesive Mount Mobile Antenna External.jpg



Specification of 4G 5G LTE Band Router And IoT Device 3M Adhesive Antenna（AC-Q7060M03B）

Electrical
Frequency Range	698-960/1700-6000MHz
Gain	3dBi
V.S.W.R	≤2.5
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	50W
Impedance	50Ώ
Connector	SMA Male(can be customization )
Cable Type	RG174
Cable Length	3M
Antenna Radome Material	ABS
Mounting way	Self Adhesive and Screw
Mechanical
Dimensions	122x24x12mm
Weight	48g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
