9dBi Wall Mount CBRS / 5G LTE Directional Antenna (AC-D6038W08-165)

Name: 9dBi Wall Mount CBRS / 5G LTE Directional Antenna (AC-D6038W08-165)
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

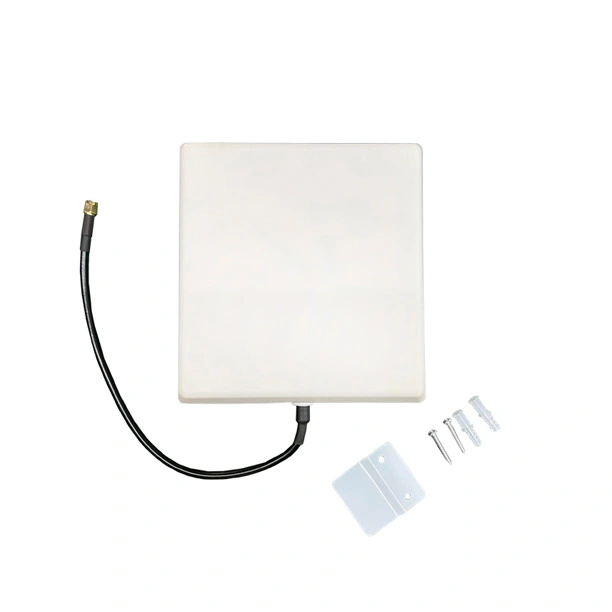

The 4G 5G LTE wall-mount antena is an indoor or outdoor directional antenna. Designed for wall-mounted applications, this antenna is compact whilst offering robust RF performance.

Complementing 4G/LTE routers and devices, this antenna operates across the sub-6 GHz bands from 600 MHz to 6 GHz frequencies.

Measuring just 42mm in height and 165mm in length, it can be surface-mounted onto a metal or non-metal surface, but more typically can be wall-mounted using a metal L-bracket. With gain of 6 dBi in the lowest band, 9 dBi in highest band, this antenna offers consistent performance and can be paired with LMR195, LMR240 low loss cables to extend the distance between the antenna and the router.

Get Antenna Price 

Specification of 9dBi Wall Mount CBRS / 5G LTE Directional Antenna (AC-D6038W08-165)

Electrical
Frequency Range	698-960/1710-2700/3300-3800MHz
F/B Ratio	＞20dB
Gain	6/9/10dBi
V.S.W.R	≤2.0
Radiation	Direction
Horizontal Beamwidth	50°/50°
Vertical Beamwidth	80°/60°
Polarization	Vertical
Lightning Protection	DC Grounded
Maximum Input Power	50W
Impedance	50Ώ
Connector	N Female
Cable Type	RG58U
Cable Length	30cm
Antenna Radome Material	ABS
Mounting Way	Wall Mount
Mechanical
Dimensions	165x155x42mm
Weight	270g
Operating Temperature	-40℃ to+70℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
