2.4/5.8GHz Dual-Band 3M Adhesive Antenna（AC-Q2458M03B）

Name: 2.4/5.8GHz Dual-Band 3M Adhesive Antenna（AC-Q2458M03B）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This compact dual-band adhesive antenna is engineered for 2.4 and 5.8GHz wireless applications, supporting WiFi 802.11 a/b/g/n/ac,Bluetooth,Zigbee,and IoT protocols.

It delivers stable omnidirectional coverage across both frequency bands,making it ideal for routers, access points,smart home hubs,industrial gateways, and wireless surveillance equipment.

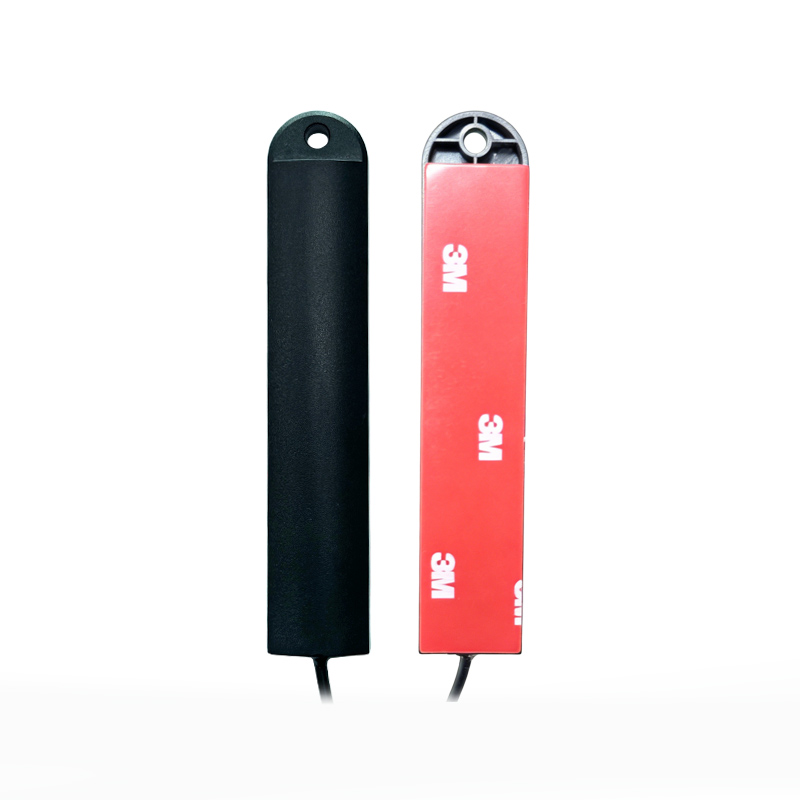

The antenna features a slim,low-profile housing with pre-applied 3M adhesive backing for tool-free, secure mounting on walls,device enclosures,or metal surfaces—perfect for installations where space is limited or external protrusions are undesirable.

Its internal dual-band design ensures balanced performance with 50Ω impedance, VSWR ≤1.8, and vertical polarization, providing efficient signal transmission and minimal interference.

Get Antenna Price 

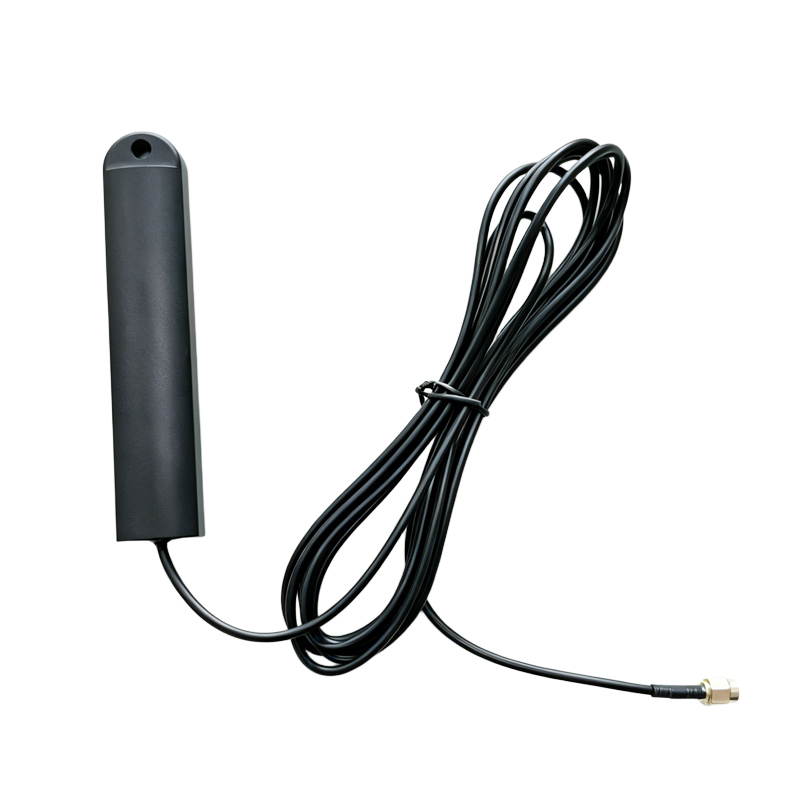

Dual Band Mobile Antenna External Adhesive Mount.jpg

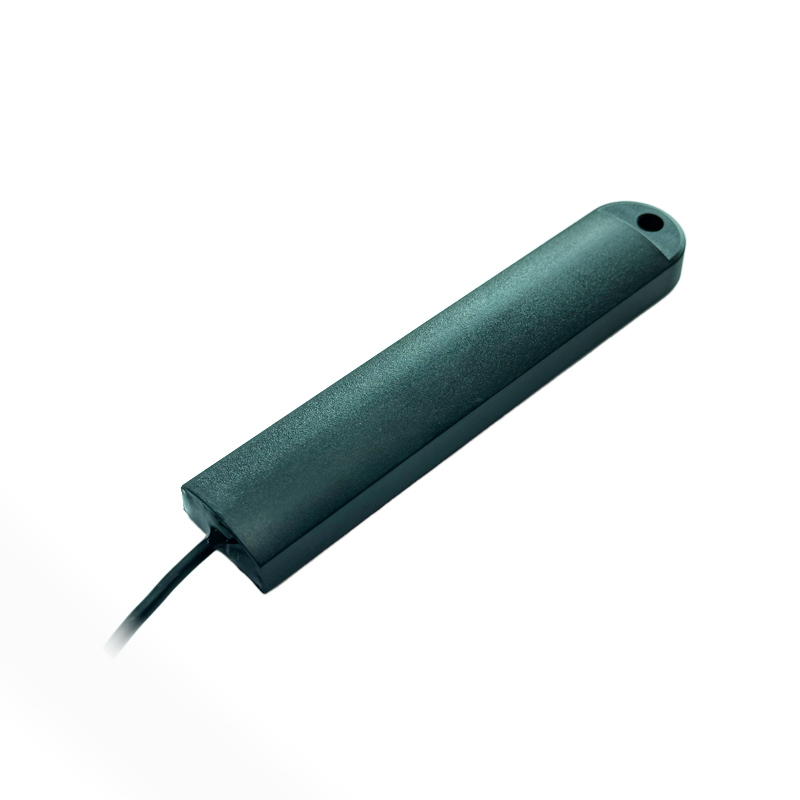

2.4G 5.8G Mobile Antenna External Adhesive Mount.jpg



Specification of 2.4/5.8GHz Dual-Band 3M Adhesive Antenna（AC-Q2458M03B）

Electrical
Frequency Range	2400-2483/5150-5850MHz
Gain	3dBi
V.S.W.R	≤1.8
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	50W
Impedance	50Ώ
Connector	SMA Male(can be customization )
Cable Type	RG174
Cable Length	3M
Antenna Radome Material	ABS
Mounting way	Self Adhesive and Screw
Mechanical
Dimensions	122x24x12mm
Weight	48g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
