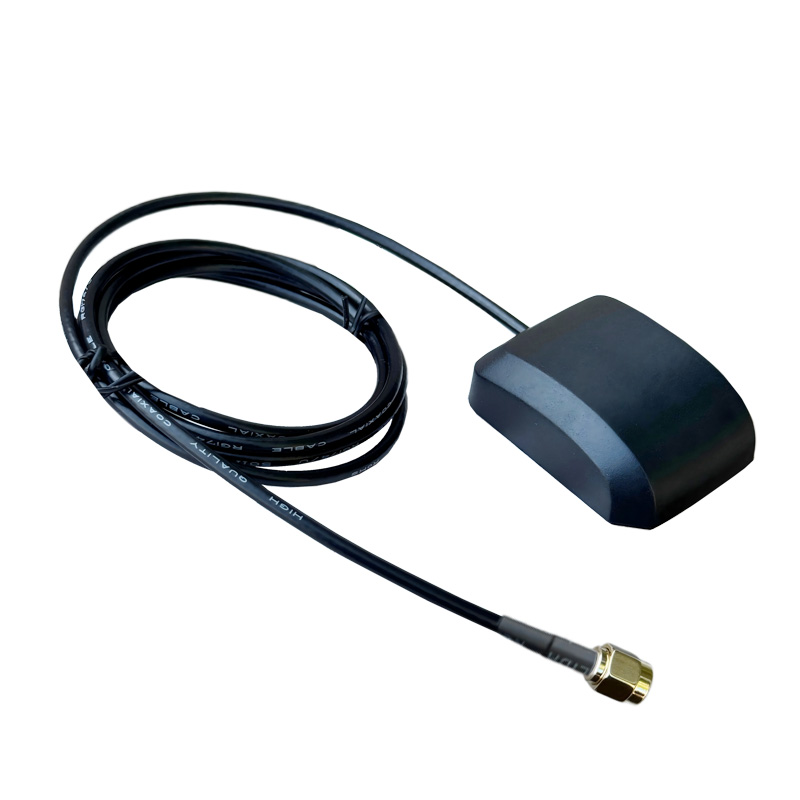

This is a high performance active RHCP antenna, It features a precisely tuned custom ceramic patch antenna element and a matching network. The antenna is enclosed in a rugged, fully weatherproof housing.
This antenna is designed for applications which require high positioning accuracy GPS systems.
High gain wideband patch antenna on a large integral ground delivers maximum performance.
| Electrical | ||
| Antenna | Frequency Range | 1575.42MHz±3MHz |
| Band Width | CF±5MHz | |
| V.S.W.R | ＜1.5 | |
| Polarization Type | RHCP | |
| Gain | 2dBic(Zenith) | |
| Impedance | 50Ώ | |
| Axial Ratio | 3dB(max) | |
| Dimension | 25*25*4mm | |
| LNA | Gain | 28±2 dB Typical |
| Noise Figure | <1.5dB | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| V.S.W.R | ＜2.0 | |
| Mechanical | Housing | Black |
| Cable | RG174 | |
| Length | 3M(Can be customized) | |

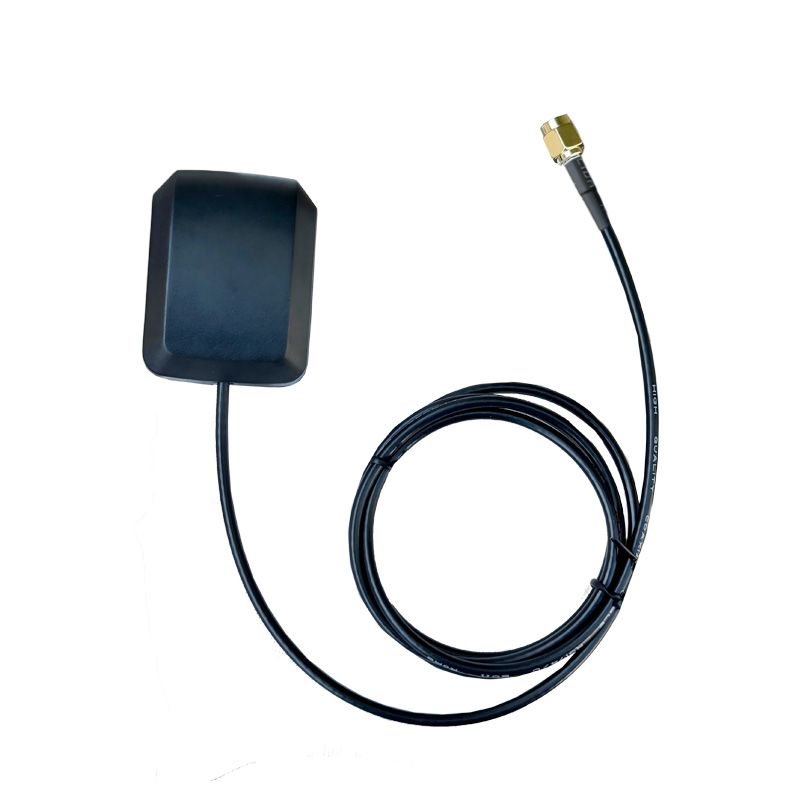

| Connector | SMA Male(Can be customized) | |
| Antenna Radome Material | ABS | |
| Mounting way | Magnetic or Adhesive | |
| Environmental | Dimensions | 50x38x17mm |
| Weight | 60g | |
| Operating Temperature | -40℃~+80℃ | |
| Humidity | UP to 95% | |
| Waterproof | IP65-67 | |
| RoHS Compliant | YES |
Waterproof Construction: Our GPS external antenna is constructed with premium quality waterproof material.
28dBi High Gain:A higher gain antenna can provide better signal reception in areas with poor satellite coverage or in environments with high levels of interference.
RF Series Interface:Rigorous production of international standards, optional SMA、IPEX、Fakra connector.
