This antenna is ideal for downtown urban settings, RV's or marine installations.
It's built with a strong fiberglass casing and is designed to cover 2G/3G/4Gand WLAN systems for Cellular, PCS, AWS and LTE frequencies.

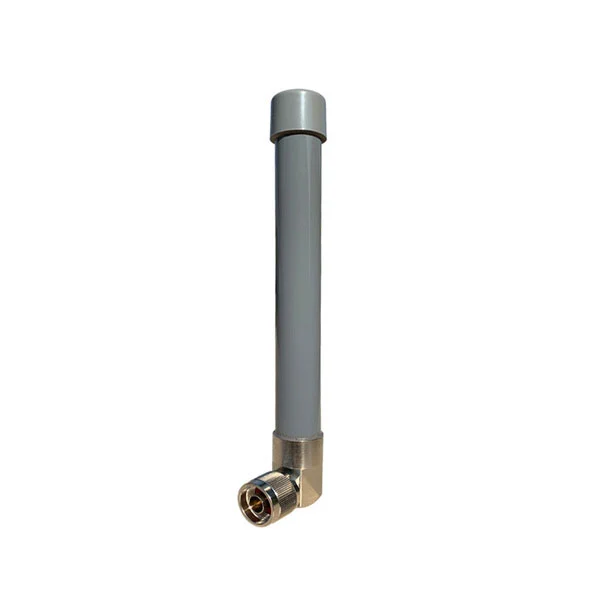

This Full Band Fiberglass antenna is an omni-directional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower. Parts includes mounting equipment for either a flat horizontal surface or a wall. It shall be mounted in an upright position for best results.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x230mm |
| Weight | 0.54KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This is an ideal antenna for remote telemetry and mobile/semi-mobile the while being backwards compatible on all 2G and 3G voice and data networks.
Designed specifically for mast mounting, the antenna's heavy duty aluminium mounting tube can be mounted using the supplied parallel U-bolt clamp.
Weather resistant sleek high gloss white urethane and fiberglass finish.
