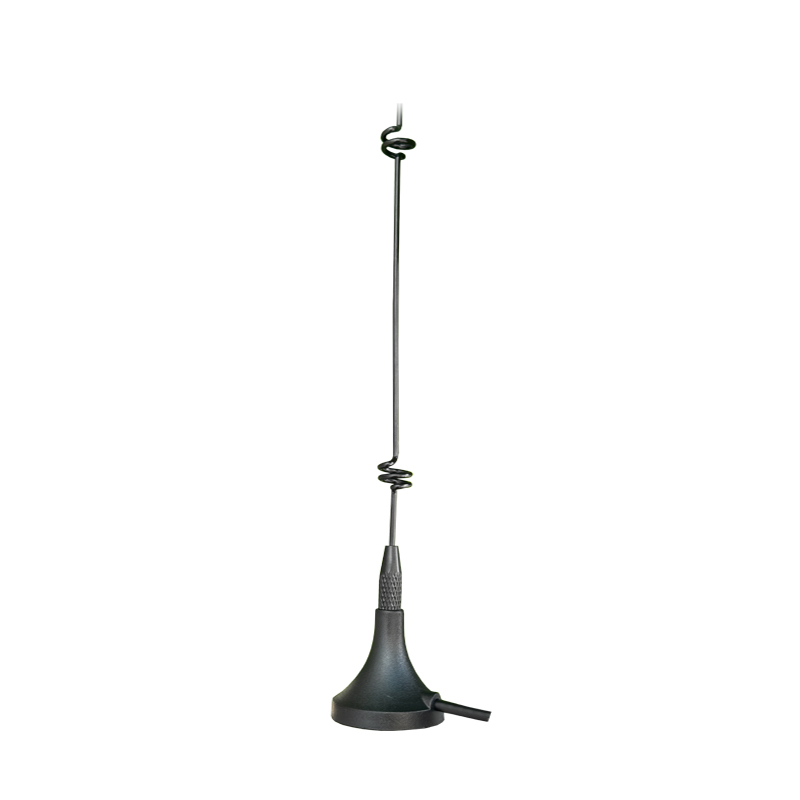

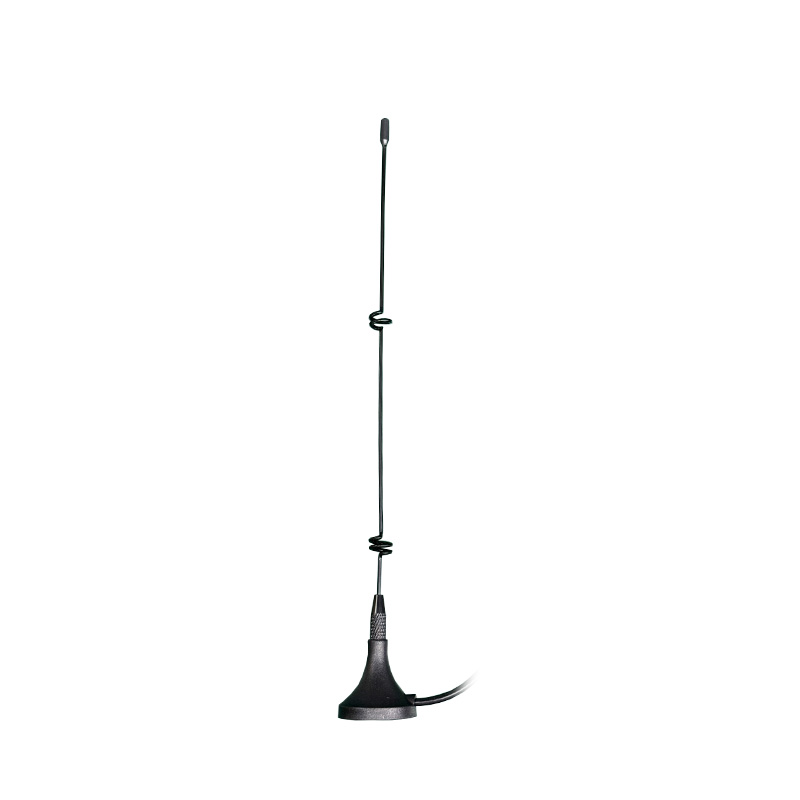

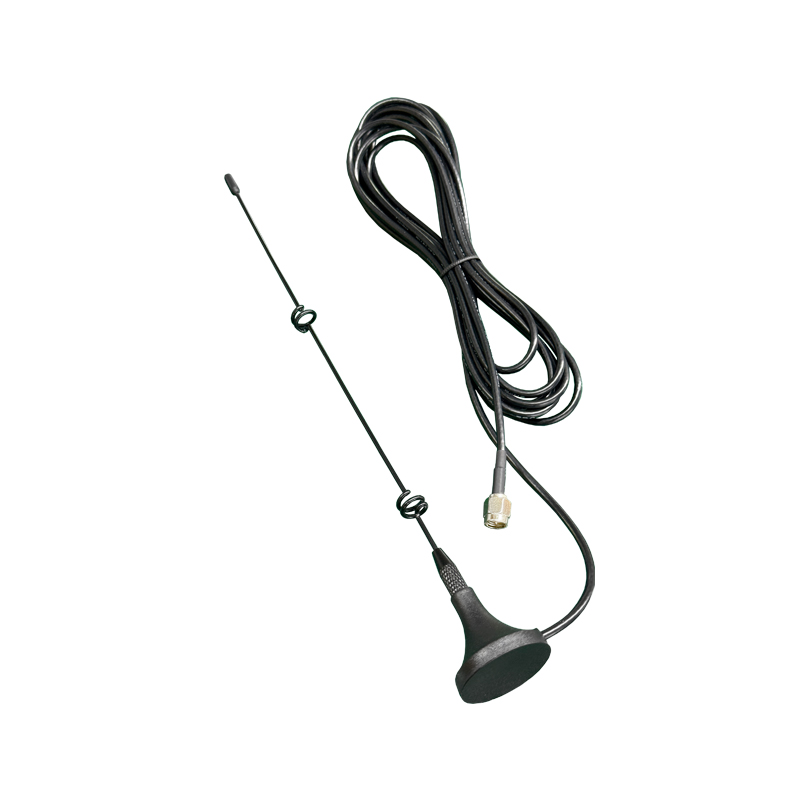

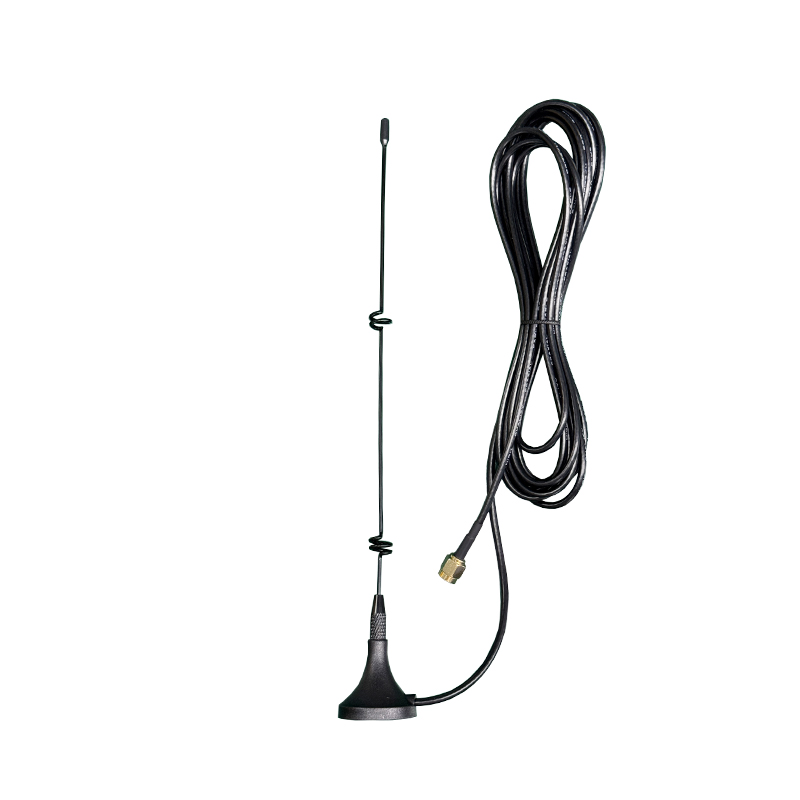

3G Magnetic cellular band antenna delivers marked improvements in efficiency and gain across all common frequencies (800/900/1800/1900/2100MHz) in use for cellular bands.
Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance. Use as a portable antenna or part of a portable cellular amplifier system and move from vehicle to vehicle or vehicle to home or office. This Magnet Mount Antenna with SMA Connector is an outdoor antenna upgrade or replacement for your vehicle cell phone signal booster.
| Electrical | |
| Frequency Range | 824-960/1710-2170MHz |
| Gain | 7dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male(can be customization ) |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | Manganese Steel |
| Mount way | Magnetic |
| Mechanical | |
| Dimensions | Φ29x230mm |
| Weight | 100g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
We carry frequency tuned multi band antennas as well as more narrowly tuned single band antennas for what ever your cellular application requires.
This cellular Magnetic Outside Mobile Antenna is an omni directional, wide band antenna made for 3g in-vehicle boosters.
The connector attaches to weBoost Mobile Signal Boosters that have SMA connectors.
