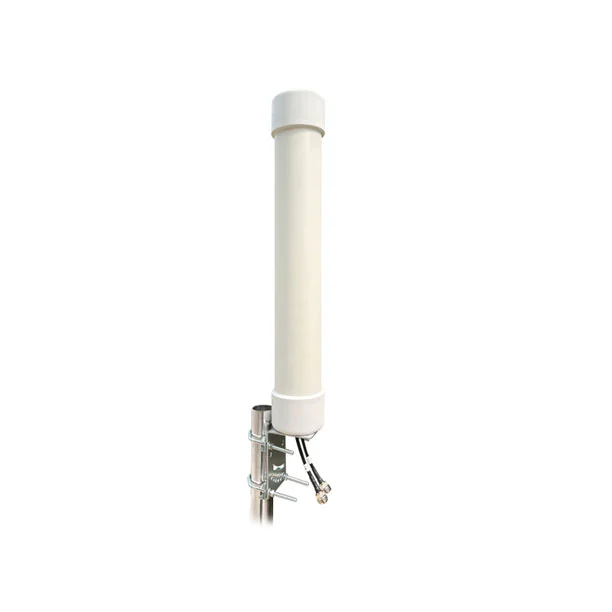

Dual Polarized high gain omnidirectional base station antenna optimized for 2.4GHz frequencies.
This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.
It is actually one antennas have 2 connector, horizontal polarized and vertical polarized for both ports.Rugged and Weatherproof.
The omnidirectional antenna is intended for mounting on a mast or a wall bracket.
A corresponding mounting bracket and a pipe clamp are included in the scope of delivery.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 2x6dBi |
| V.S.W.R | <1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 7° |
| Polarization | Horizontal and Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Ø75x470mm |
| Weight | 1.5KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
It is a High Gain, Dual Polarised, MIMO, WIFI Band, Omni Directional Antenna.
Designed to operate in harsh environments, including maritime use.
Antennas are designed with robust mounting design for outdoor application use.
