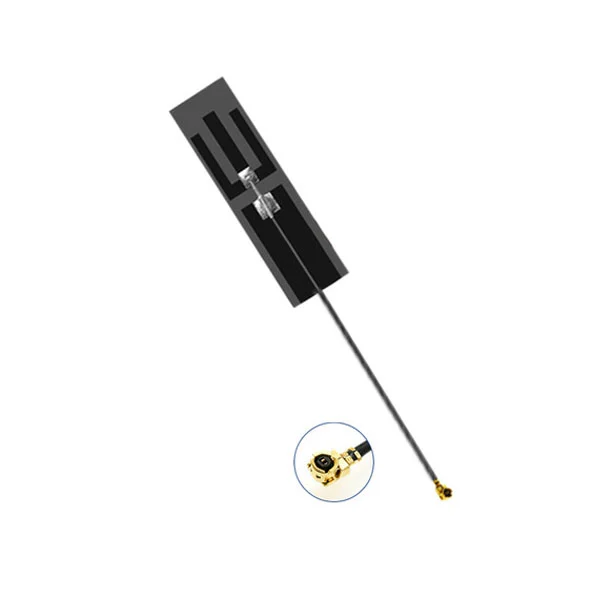

This Flexible Printed Circuit Board Antennas(FPC)Antennas are flexible, low profile, highly reliable and economical antennas that are widely used in the wireless industry.
It can be bent placed on the inside of a non-metallic housing. allowing it to be hidden almost anywhere while providing an invisible solution for many applications.
The combination of multiple frequency bands and an omnidirectional pattern offers a variety of uses suited for indoor applications.The antenna is specifically designed for internal applications covering the 2.4/5.8GHz dual bands.Flexible PCB antennas usually are very thin and have a peelable back strip which when pealed of can stuck onto a surface with a pre-applied adhesive like a sticker.
| Electrical | |
| Frequency Range | 2400-2500/5150-5800MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | RF 1.13 |
| Cable Length | 100mm |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 50x14x0.3mm |
| Weight | 0.1g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Since it is vertically polarized, it is compatible with telemetry applications.
Linear polarized, it is suitable for many of today's machine to machine and communication applications such asremote monitoring applications.
High power levels can be achieved without the cost of an external antenna.
