Outdoor Bracket Mount 2G GSM Antenna With N Female(AC-QGC-900BFZJ)

Name: Outdoor Bracket Mount 2G GSM Antenna With N Female(AC-QGC-900BFZJ)
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This Bracket Mount GSM Antenna delivers reliable communication performance for 2G cellular networks, M2M telemetry,and IoT devices.Operating within the standard GSM frequency bands,it ensures satble

voice and data connections with excellent signal penetration.

Its rugged IP66 weatherproof housing protects the antenna,making it perfect for harsh industrial environments and outdoor deployments.Additionally,the integrated ultra-low loss coaxial cable maximises

signal transfer efficiency.The antenna achieves an optimised gain tailored for GSM frequencies, significantly improving overall network coverage and reliability for remote terminals.

This bracket mount antenna installs easily on walls, panels,or masts. It works perfectly with GSM routers, cellular modems, remote monitoring equipment,and wireless alarm systems.Overall, this is a cost- effective,future-proof solution for robust and dependable 2G cellular connectivity.

Get Antenna Price 

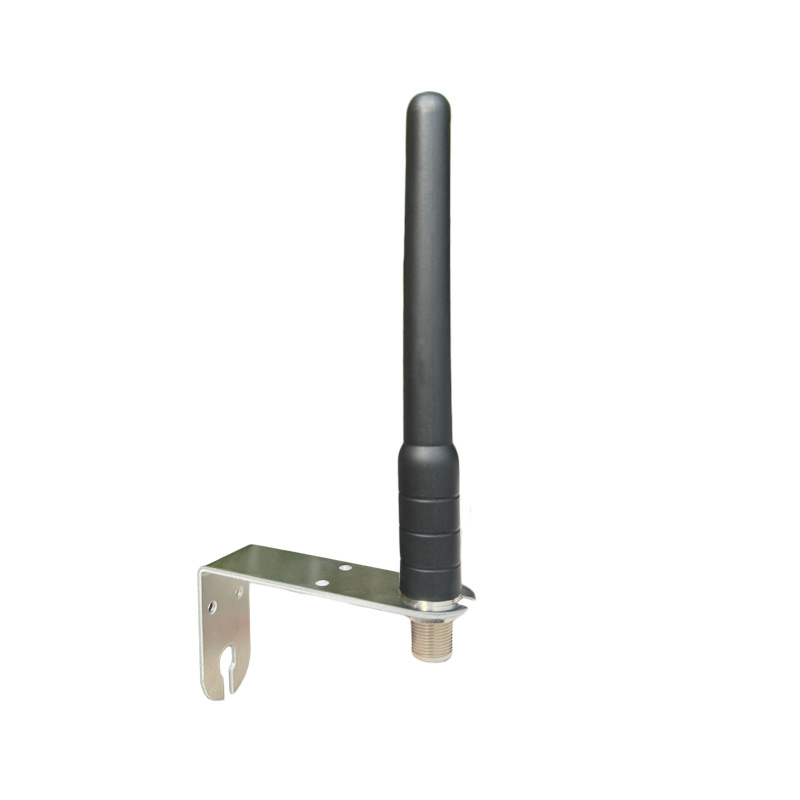

2G GSM Outdoor Bracket Mount Antenna With N Female.jpg

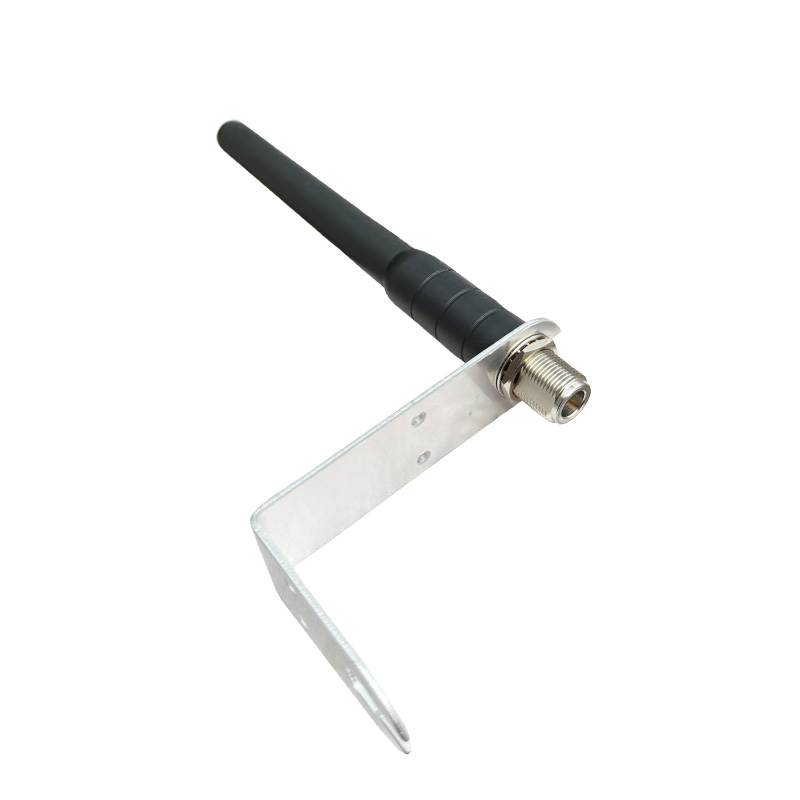

Outdoor L Bracket Mount 2G GSM Antenna With N Female.jpg

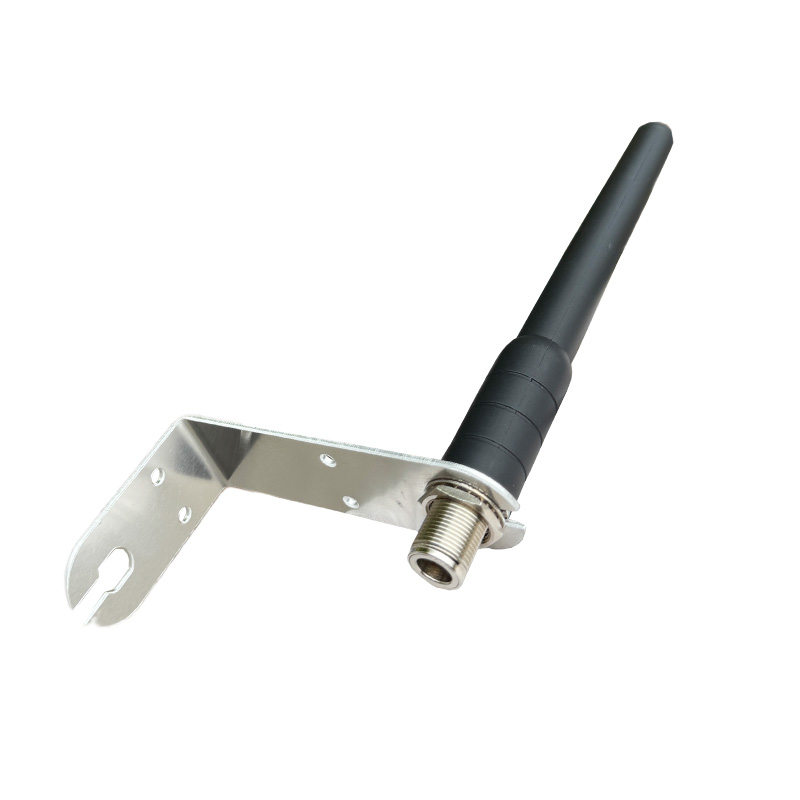

Outdoor Bracket Mount 2G GSM Antenna With N Female Connector.jpg

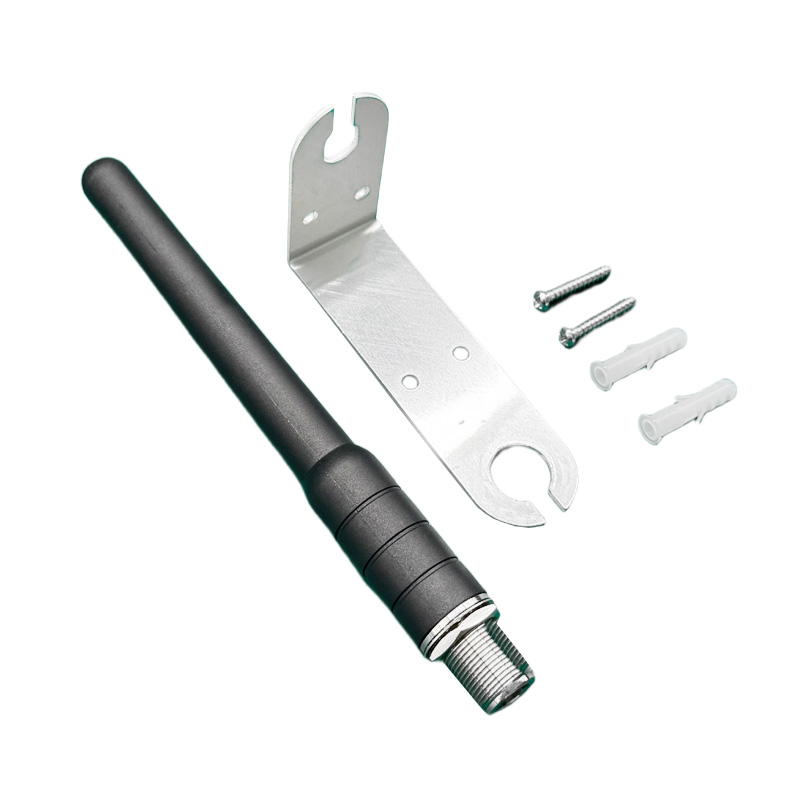

GSM 2G Outdoor Bracket Mount Antenna With N Female.jpg

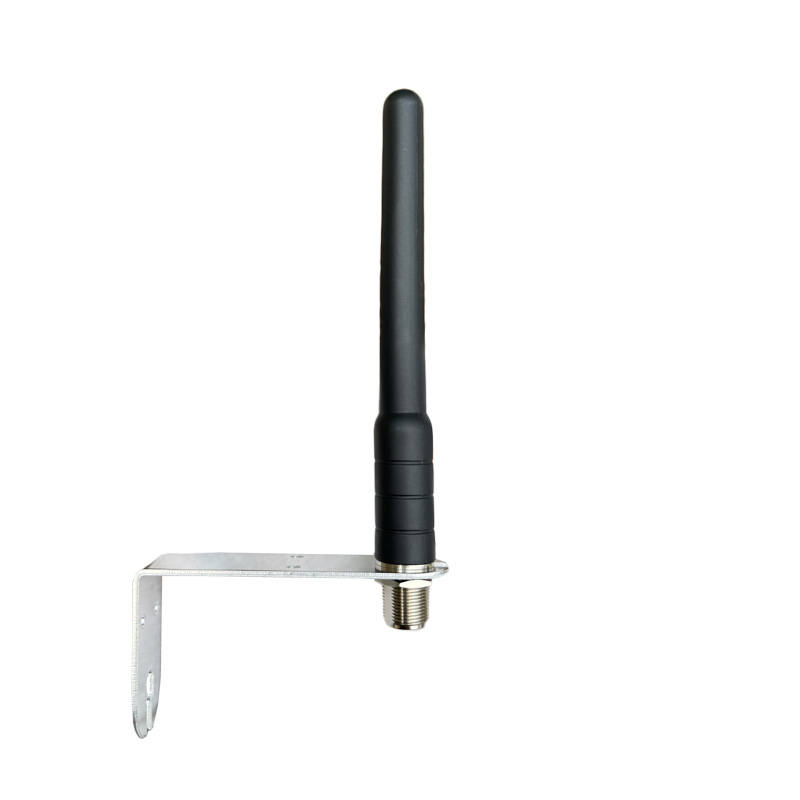

Outdoor Bracket Mount 2G GSM Antenna With N Female.jpg



Specification of Outdoor Bracket Mount 2G GSM Antenna With N Female(AC-QGC-900BFZJ)

Electrical
Frequency Range	GSM850:824-896MHz GSM900:890-960MHz DCS:1710-1880MHz PCS:1850-1990MHz
Gain	3dBi
V.S.W.R	≤2.0
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	5W
Impedance	50Ώ
Connector	N Female
Antenna Radome Material	TPE
Mounting way	Wall Mount
Mechanical
Dimensions	Φ20x184mm
Weight	78g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
