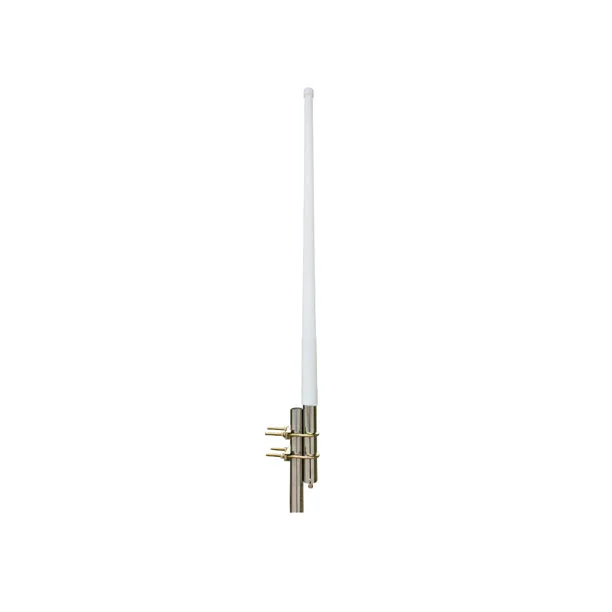

It is Omni Antenna Low signal attenuation, strong anti-interference, high signal quality, easy to operate and install; Work for 430-470Mhz Device to improve signal reception and transmition range.
This is a commonly used frequency band for all types of equipment that require little power, such as garage door gate openers, Intelligent wifi remote, smart home, headphones, baby monitors and remote controls Transmitter. Omni directional antennas are used in most consumer RF wireless devices, including cellular telephone handsets and wireless routers Omni-directional antennas are the right choice for situations where you need to be in contact with sources that are in two directions or if you do not know what direction the signals will be coming from.
They also feature a very versatile clamp mounting system that will fit most every situation you will encounter. The antenna can be customized for 30CM cable with N female connector.
| Electrical | |
| Frequency Range | 430-470MHz |
| Band width | 40MHz |
| Gain | 5.5dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 12° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting Way | Pole Mount |
| Mounting Mast Diameter | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | Φ30x1100mm |
| Weight | 1KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
It is Omni Antenna Low signal attenuation, strong anti-interference, high signal quality.
Easy to operate and install and work for 430-470Mhz Device to improve signal reception and transmition range.
The antenna can be customized for 30CM cable with N female connector.
