This is a dual input omni-directional MIMO antenna and it is ideally suited for locations where wide coverage is desired.
This antenna features 2 X SMA Female or N Female connectors.

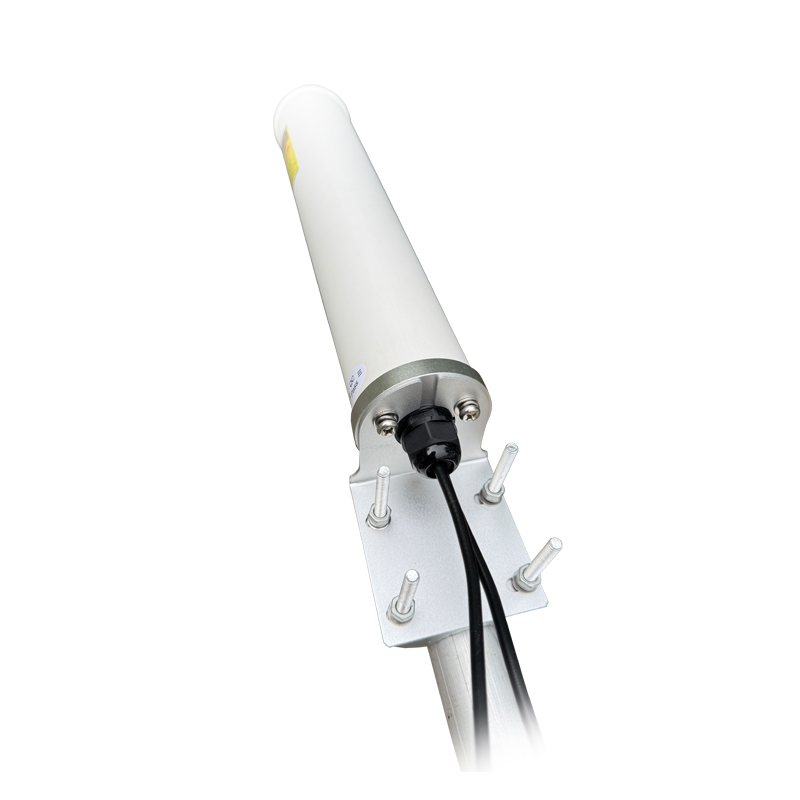

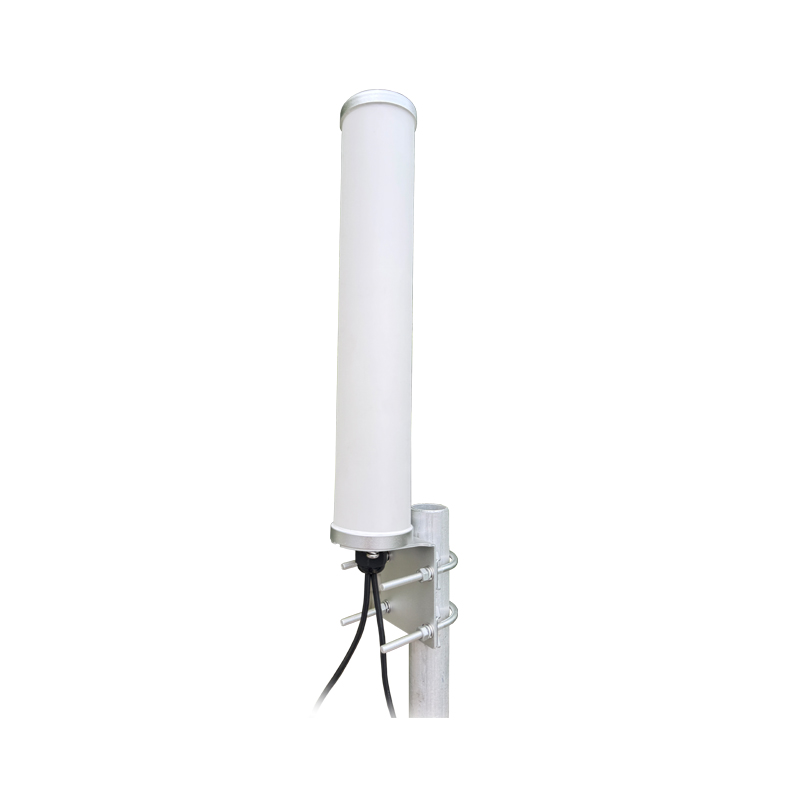

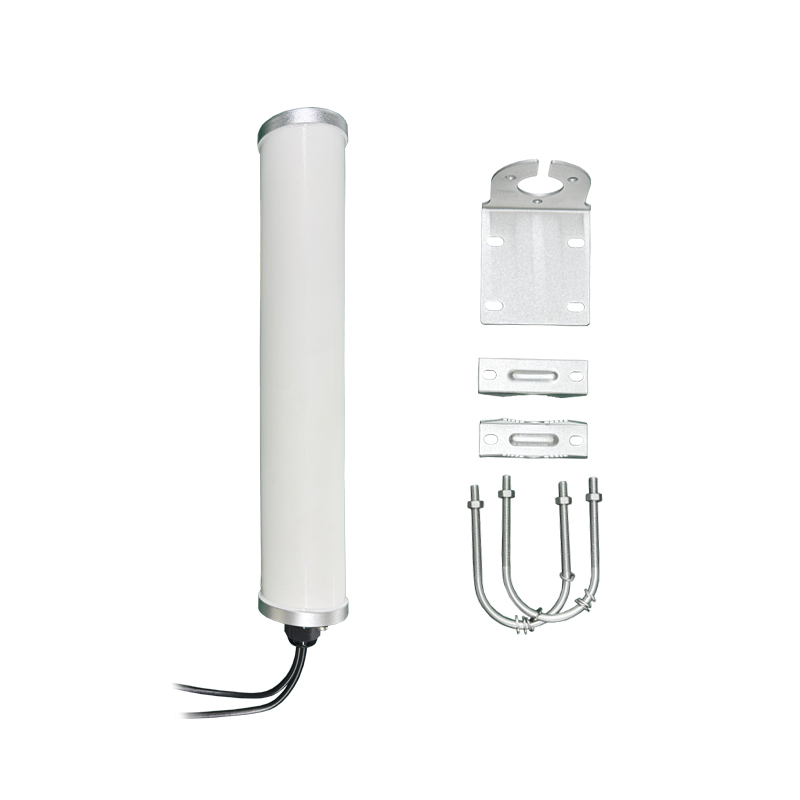

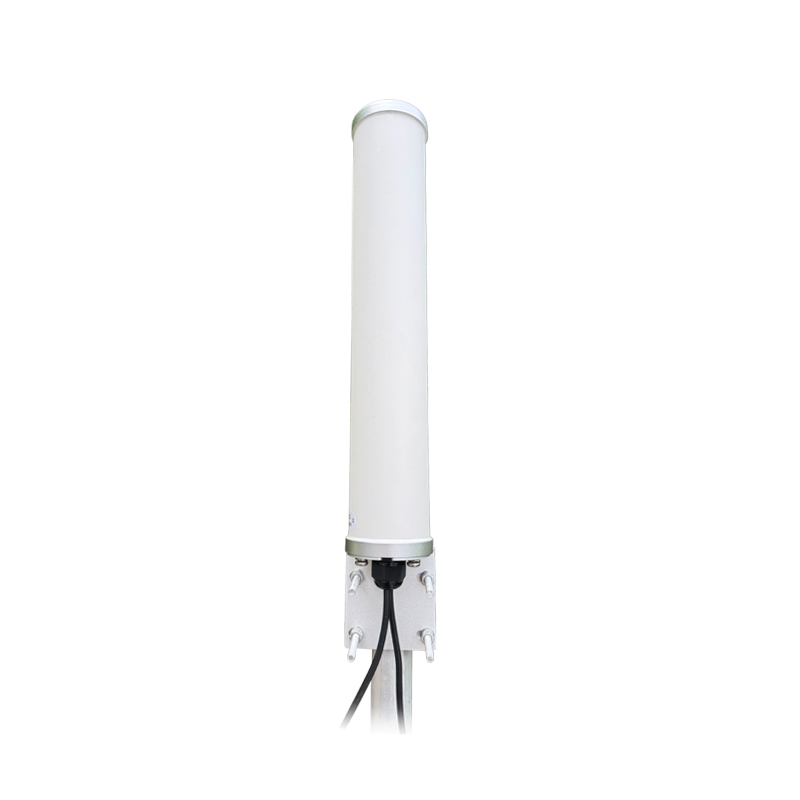

Mounting is made easy with a dual U-bolt mast mounting kit.
This antenna is DC grounded for lightning protection and designed for all weather operation. 6dBi high gain 4G MIMO Omni antenna. Outdoor design with waterproof protection, designed for rugged deployments in outdoor. Wide 4G cellular frequency 698~6000MHz.
Due to high-gain and low V.S.W.R,they provide the high-performance cellular connection with the mobile signal base station and improve the signal reception on wireless-enabled devices including 4G/WIFI router, 4G/WIFI modem, 4G/WIFI CPE, and so on.
Customized cables and connector version available.
| Electrical | |
| Frequency Range | 698-960/1710-6000MHz |
| Gain | 4/6dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2XSMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x370mm |
| Weight | 1KG |
| Operating Temperature | -40℃ to+60℃ |
| Waterproof | IP66 |
| RoHS Compliant | YES |
This is an MIMO antenna for remote telemetry and mobile/semi-mobile the while being backwards compatible on all 2G and 3G voice and data networks.
Antennas are designed with robust mounting design for outdoor application use.
Dual pol antenna has been designed with a moderate gain 6dBi. It is lightweight at around 6KG but is designed to easily withstand winds of over 60m/s.
