It is a dual polarised panel antenna designed for 5G, 4G, LTE, 3G and GSM frequency bands.
It has two radiating elements, one vertically polarised and one horizontally polarised, operating from 800-960, 1710-2170, 2500-2700, 3300-3800 and 4900-6000MHz.
Our 2x2 MIMO Panel antenna offers up to 7.0 dBi gain between 600 MHz and 960 MHz, up to 9.0 dBi gain between 1710 and 2700 MHz, up to 10.0dBi gain between 4900-6000MHz.
| Electrical | |
| Frequency Range | 698-960/1710-2170/2500-2700/3500-3800/4900-6000MHz |
| Gain | 9/10dBi |
| F/B Ratio | 20dB |
| V.S.W.R | ≤1.8 |
| Radiation | Direction |
| Horizontal Beam width | 80° |
| Vertical Beam width | 80° |
| Lightning Protection | DC-Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2XN Female |
| Cable Type | RG58U |
| Cable Length | 30CM |
| Antenna Radome Material | ABS |
| Mounting way | A |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 300x183x70mm |
| Weight | 0.7KG |
| Operating Temperature | -40℃ to+60℃ |
| RoHS Compliant | YES |

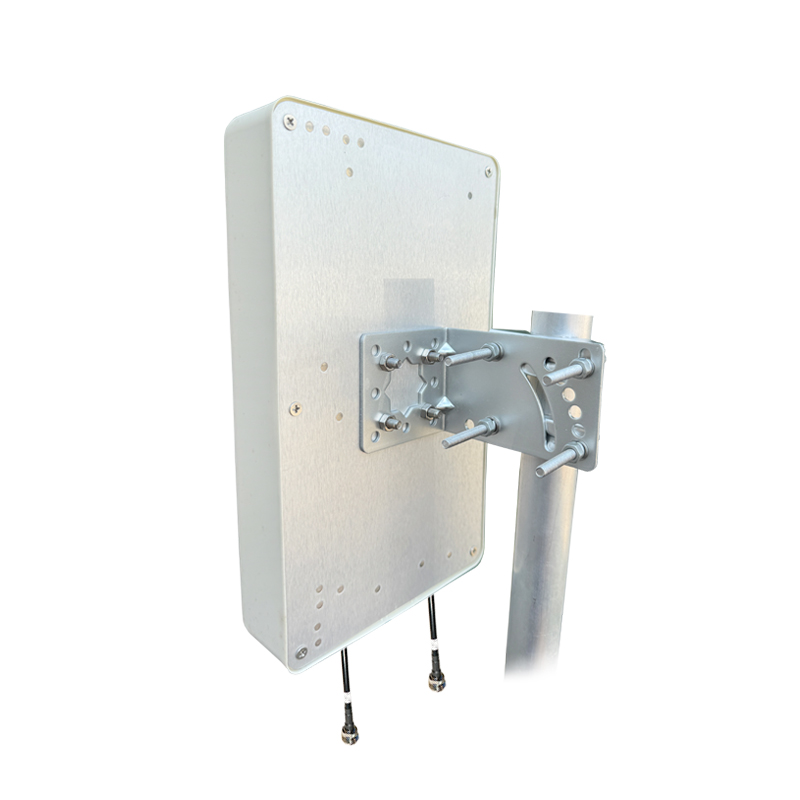

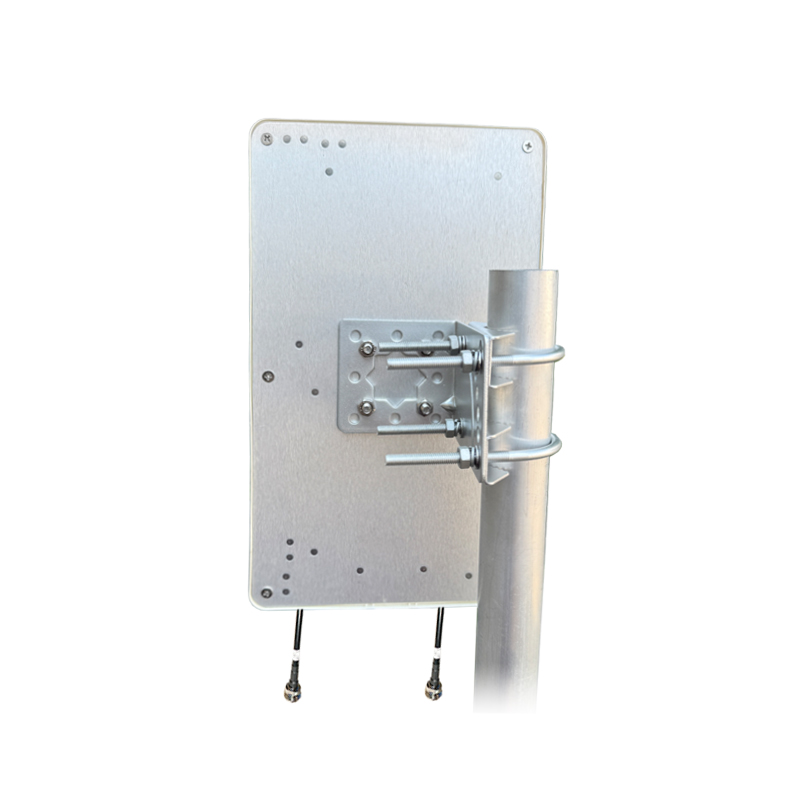

This antenna is suitable for Ourdoor ordinary Pole mounting.
If you're looking to get the absolute best data rates for your LTE or 5G hotspot, using external antennas is often the best option.

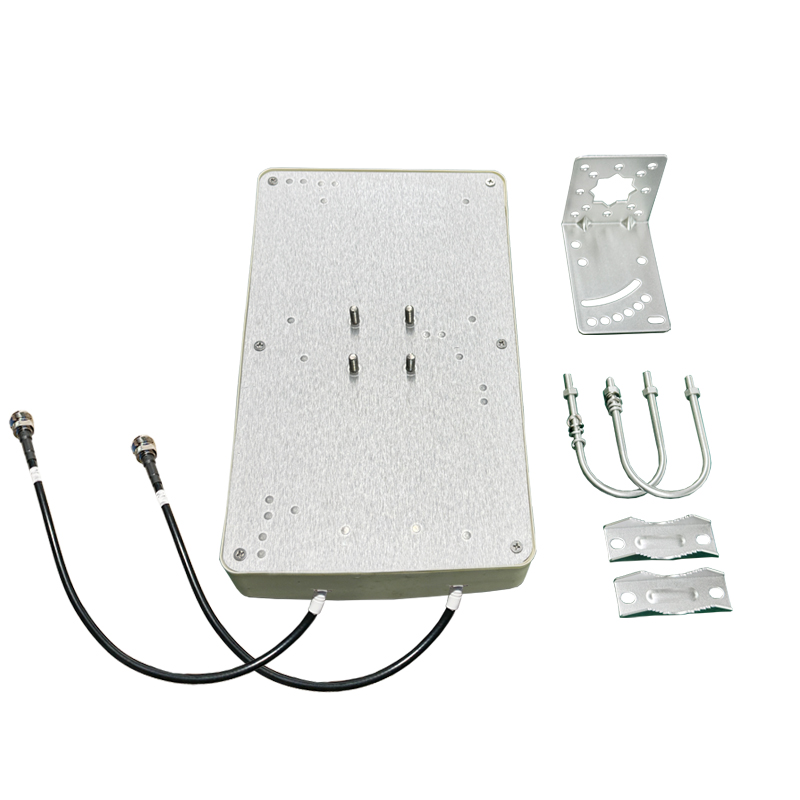

MIMO Panel External Antenna Kit for 4G LTE/5G Hotspots & Routers includes everything you need to mount your external antennas.
