4G 5G LTE MIMO Parabolic Dish Antenna 1700-4200Mhz High Gain Long Range（AC-D1742G15-4028X2）

Name: 4G 5G LTE MIMO Parabolic Dish Antenna 1700-4200Mhz High Gain Long Range（AC-D1742G15-4028X2）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

The MIMO dish parabolic antenna consists of full Parabolic reflector for use in point to point analogue and digital communication radio link.

The antenna covers 2500 MHz bandwidth.The mounting arrangement of dish parabolic antenna permits to change the polarization from horizontal to vertical and vice-versa by mounting hardware fitted at rear end of the antenna. The antenna is supplied with +/-5 degrees elevation tracking mechanism.

The dish parabolic antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise.

The grid parabolic antenna is highly suitable for long range Outdoor signal coverage.

Get Antenna Price 

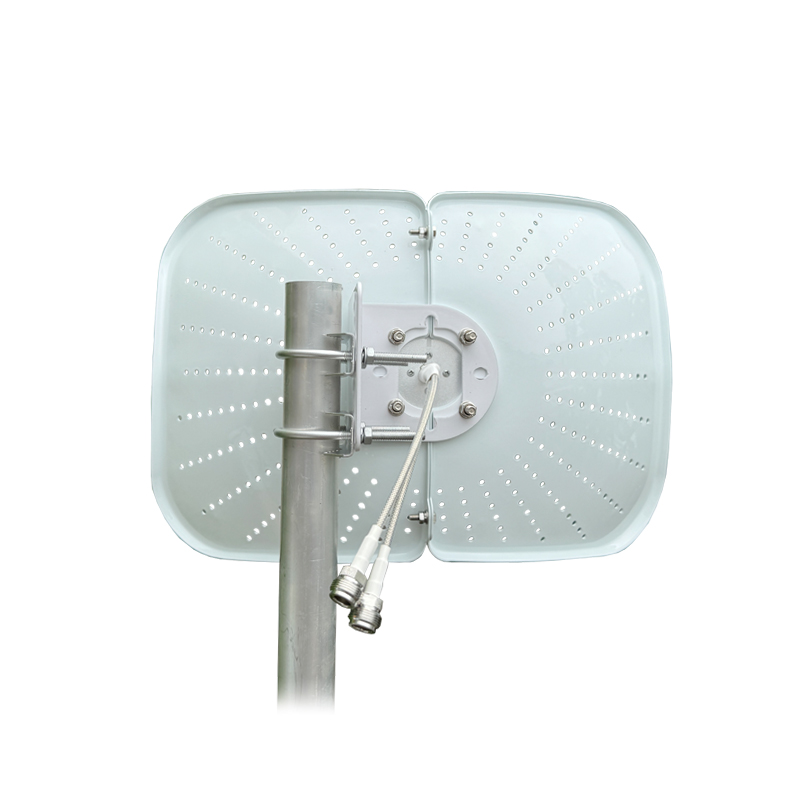

4G 5G LTE MIMO Parabolic Dish Antenna.jpg

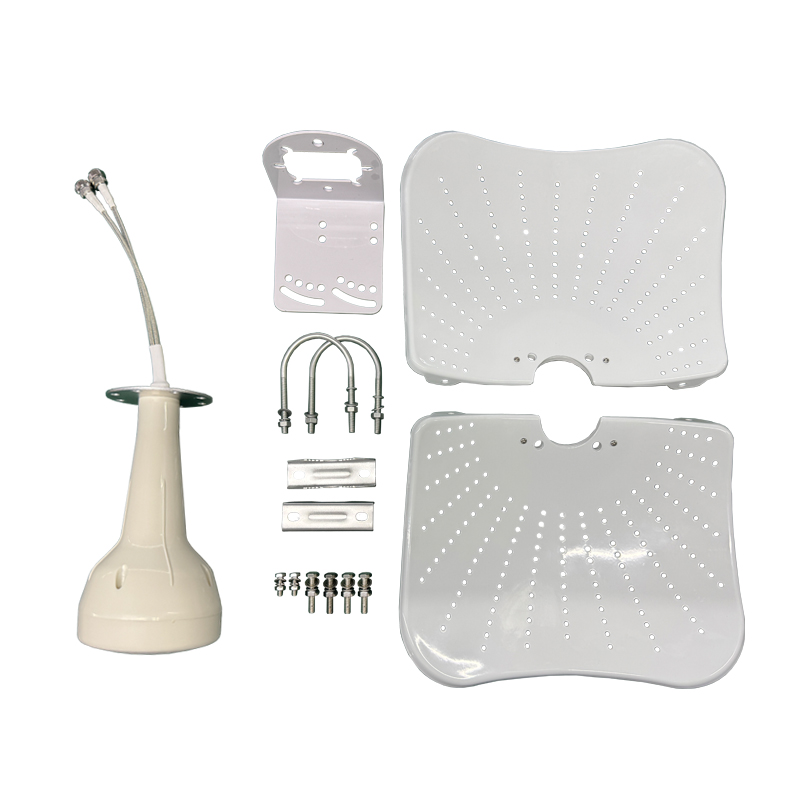

1700-4200Mhz MIMO Parabolic Dish Antenna.jpg

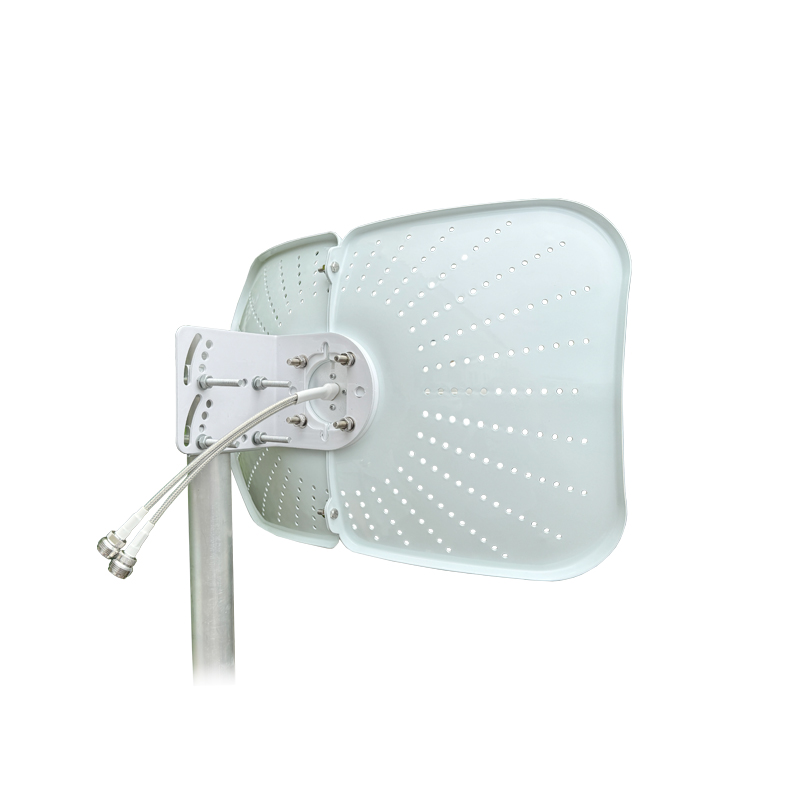

4G 5G LTE MIMO Parabolic Dish Antenna 1700-4200Mhz.jpg



Electrical
Frequency Range	1700-4200MHz
F/B Ratio	≥30dB
Gain	2x15dBi
V.S.W.R	1700MHz≤3.5;2700-4200 ≤1.8
Radiation	Direction
Horizontal Beam width	12°
Vertical Beam width	15°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Length	20cm
Cable	RG142
Connector	2xN Female
Antenna Radome Material	Aluminium alloy
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	405x280mm
Weight	1.1KG
Operating Temperature	-40℃ to+70℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
