The 4G Whip Antenna is vertically polarized with an omnidirectional radiation pattern.
These swivel antennas are intended for demonstration use or short-range communications only.
It does not require a ground plane to connect to.
It has quality TPE housing for use with 4G/LTE terminals. The linear polarized antenna can be made very small and lightweight, especially useful for weight-critical applications The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3/4dBi |
| V.S.W.R | ≤1.5;Max 3.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| Mechanical | |
| Dimensions | Φ13x168mm |
| Weight | 22g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |

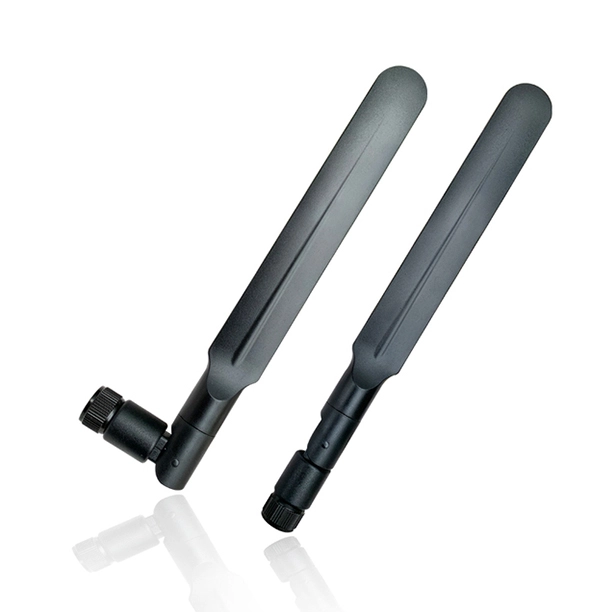

The blade package is a right angle swivel provided in black plastic in the right angle position.
This 4G Swivel Blade Antenna with good performance across the LTE frequency bands.
This swivel antenna supporting 2G/3G/4G is the ideal one-size-fits-all solution for next-generation devices.
