36dBi directional MIMO operation, ideal for extraordinary long distance point to point connection Weather proof design, suitable for all weather conditions.
N Female connector, applicable in most outdoor solutions Outdoor Dish Parabolic Antenna, is applicable for outdoor point-to- point or point to multipoint directional signal transmission.
It is usually mounted on such high-level outdoor locations as towers, roofs, etc.
5G MIMO Dish antenna, which focuses the signal and reflects the power off of the dish, creating very high power in a highly directional beamwidth. You can think of the radio signal beam of a high gain parabolic dish/ grid antenna as shining a high power flashlight directly at your target.

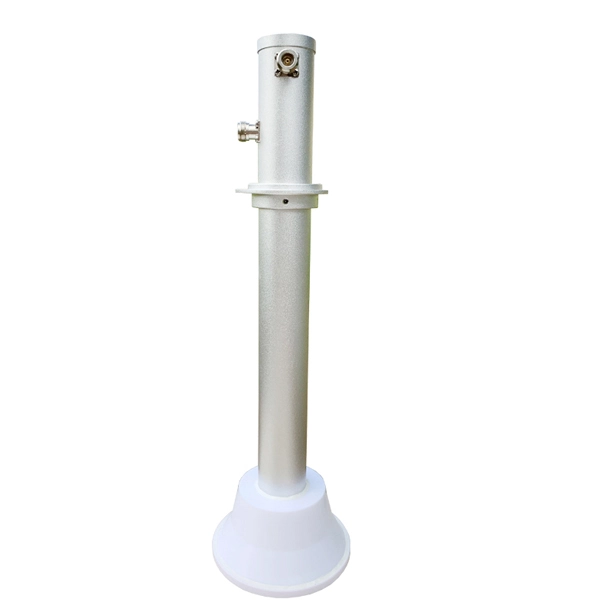

We offers feedhorns for your parabolic Dish. These kits consists of the feedhorn and mounting hardware. This is the feedhorn for our AC-D4958G25-04X2 antenna.
| Electrical | |
| Frequency Range | 4950-5850MHz |
| Band width | 900MHz |
| F/B Ratio | ≥40dB |
| Gain | 2x36dBi |
| V.S.W.R | ≤1.5,Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 3° |
| Vertical Beam width | 3° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Mechanical | |
| Antenna Dimension | Φ13x594mm |
| Weight | 900g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This replacement feedhorn is sold separately and is not intended for use with the entire antenna.
It features a focal length of 234" and an N connector with an outside thread.
The product is designed for use with the 5.8 GHz frequency band 1.2meter dish.
