3G 800/900/1800/1900/2100MHz 3M Adhesive Antenna（AC-Q3GM03B）

Name: 3G 800/900/1800/1900/2100MHz 3M Adhesive Antenna（AC-Q3GM03B）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This compact 3G adhesive antenna is designed for reliable cellular connectivity across all major 3G standards,including WCDMA/UMTS and HSPA networks.

Operating across the 824-960MHz and 1710-2170MHz frequency bands,it delivers stable omnidirectional signal coverage for mobile communication terminals, 3G routers, data cards, and M2M devices.

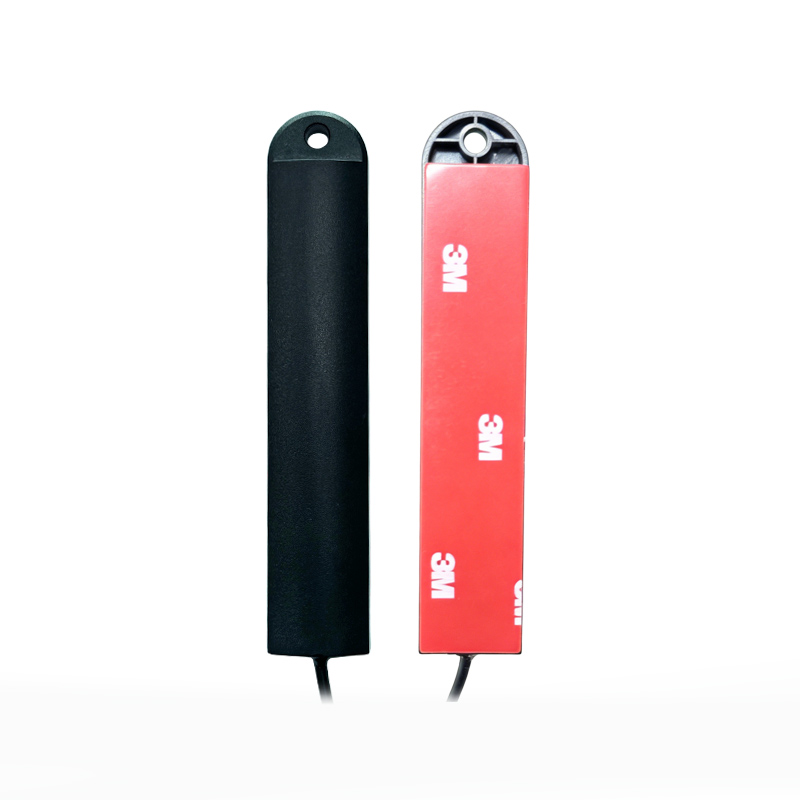

The antenna features a low-profile housing with pre-applied 3M adhesive backing for quick,tool-free mounting on device enclosures,vehicle surfaces,or equipment panels—ideal for installations where drilling or magnetic mounts are not suitable.

Its internal design provides vertical polarization, 50Ω impedance,and VSWR ≤2.0,ensuring efficient power transfer and consistent signal quality across the full 3G spectrum.

Get Antenna Price 

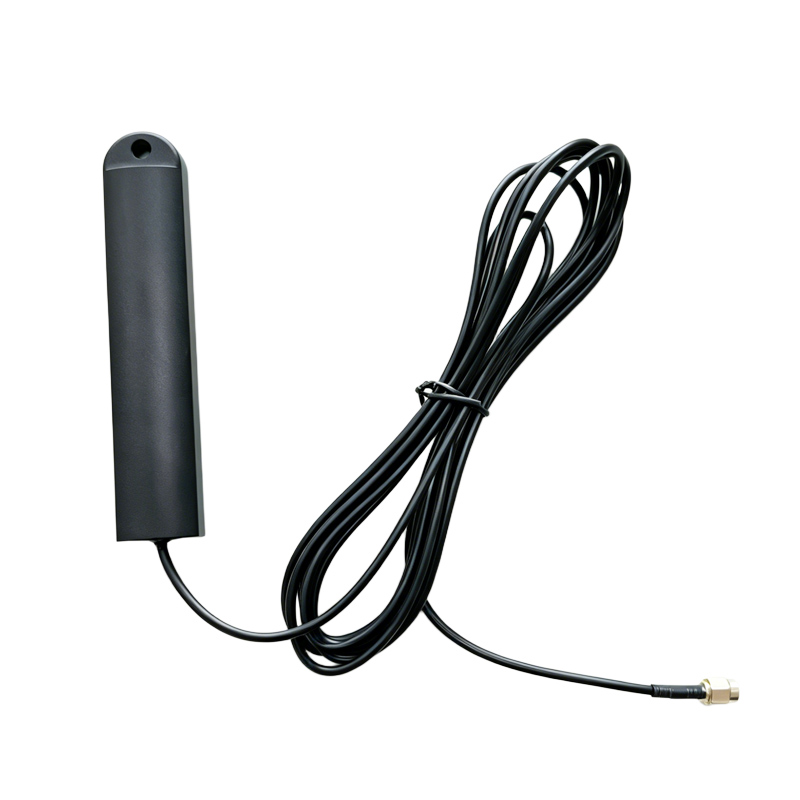

3G Cellular Mobile Antenna External Adhesive Mount.jpg

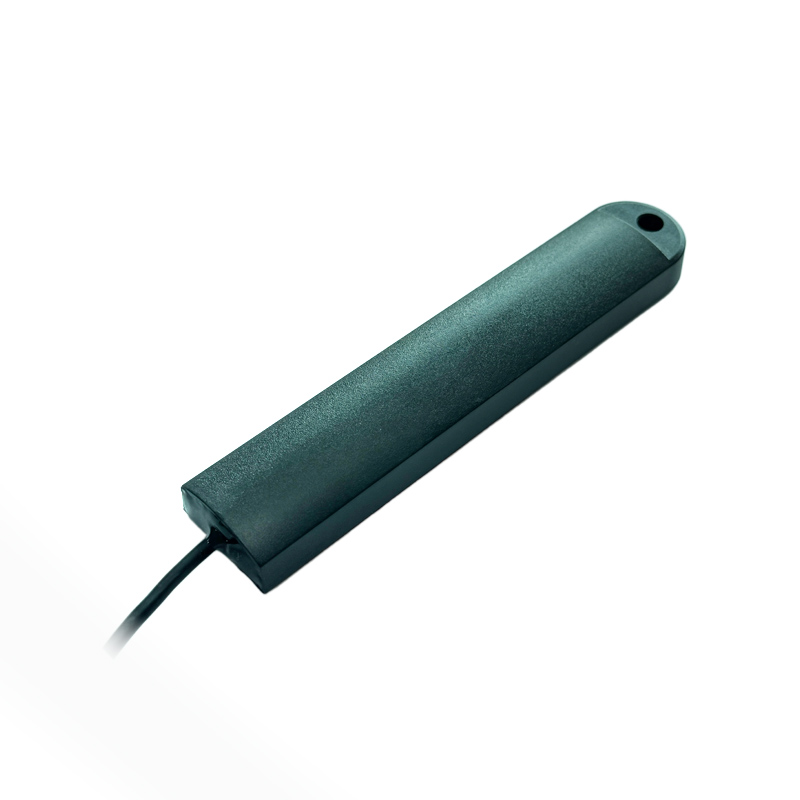

Cellular Mobile Antenna External Adhesive Mount.jpg



Specification of 3G 800/900/1800/1900/2100MHz 3M Adhesive Antenna（AC-Q3GM03B）

Electrical
Frequency Range	824-960/1710-2170MHz
Gain	3dBi
V.S.W.R	≤1.8
Radiation	Omni-Direction
Polarization	Vertical
Maximum Input Power	50W
Impedance	50Ώ
Connector	SMA Male(can be customization )
Cable Type	RG174
Cable Length	3M
Antenna Radome Material	ABS
Mounting way	Self Adhesive and Screw
Mechanical
Dimensions	122x24x12mm
Weight	48g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
