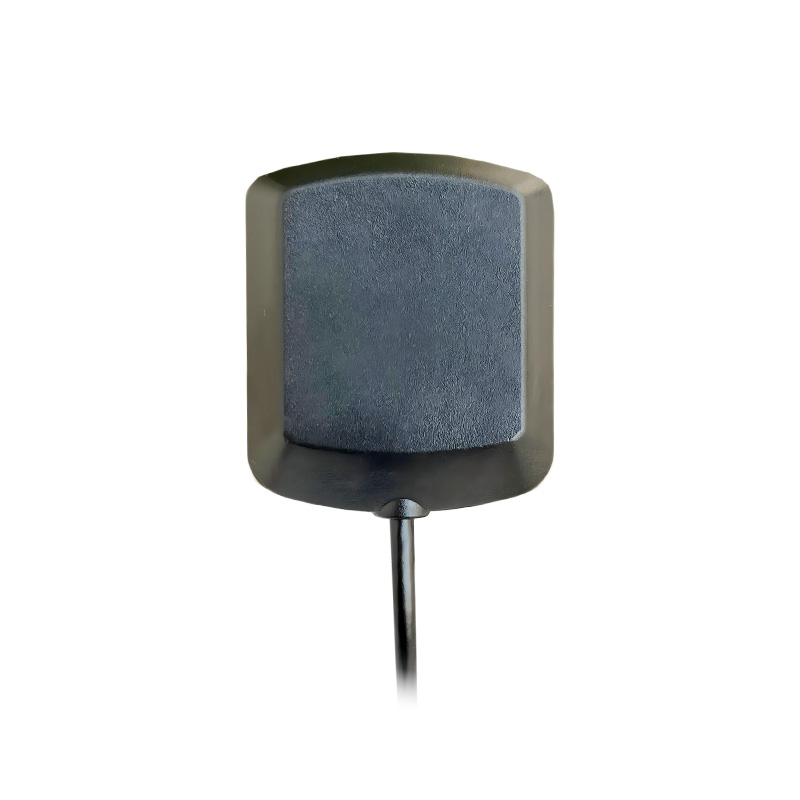

GPS antennas AC-GPS-DHG complement 1575 42MHZ Antenna with performance of 28+2 db Typicalmax(frequency dependent ground plane is required to maximize gain)
The antenna radome consists of blackABS UV resistant plastic, with a heavy duty metabaseand threaded feed thru
This antenna for GPS applications where high performance is required from small size.
The antenna includes a low noise amplifier and incorporates both screw fixings and stick mount.
| Electrical | ||
| Antenna | Frequency Range | 1575.42MHz±3MHz |
| Band Width | CF±5MHz | |
| V.S.W.R | ＜1.5 | |
| Polarization Type | RHCP | |
| Gain | 2dBic(Zenith) | |
| Impedance | 50Ώ | |
| Axial Ratio | 3dB(max) | |
| Dimension | 25*25*4mm | |
| LNA | Gain | 28±2 dB Typical |
| Noise Figure | <1.5dB | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| V.S.W.R | ＜2.0 | |
| Mechanical | Housing | White |
| Cable | RG174 | |
| Length | 3M(Can be customized) | |
| Connector | SMA Male(Can be customized) | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Environmental | Dimensions | Φ50×49mm |
| Weight | 80g | |
| Operating Temperature | -40℃~+80℃ | |
| Humidity | UP to 95% | |
| Waterproof | IP65-67 | |
| RoHS Compliant | YES |
This GPS Active antenna compatible with Vehicle Location Systems application and fleet management systems.
This is the Reception antenna for satellite signals for processing in navigation systems.
This is the antenna with Screw mounting on metallic ground.Traffic Guidance Systems and Vehicle Location GPS Active Antenna.
