LTE terminal antennas AC-Q7027-SY complement Mobile LTE broad line of antenna products for Cellular applications.
Antenna with performance of 3 & 5 dBi max(frequency dependent).
A ground plane is required to maximize gain.

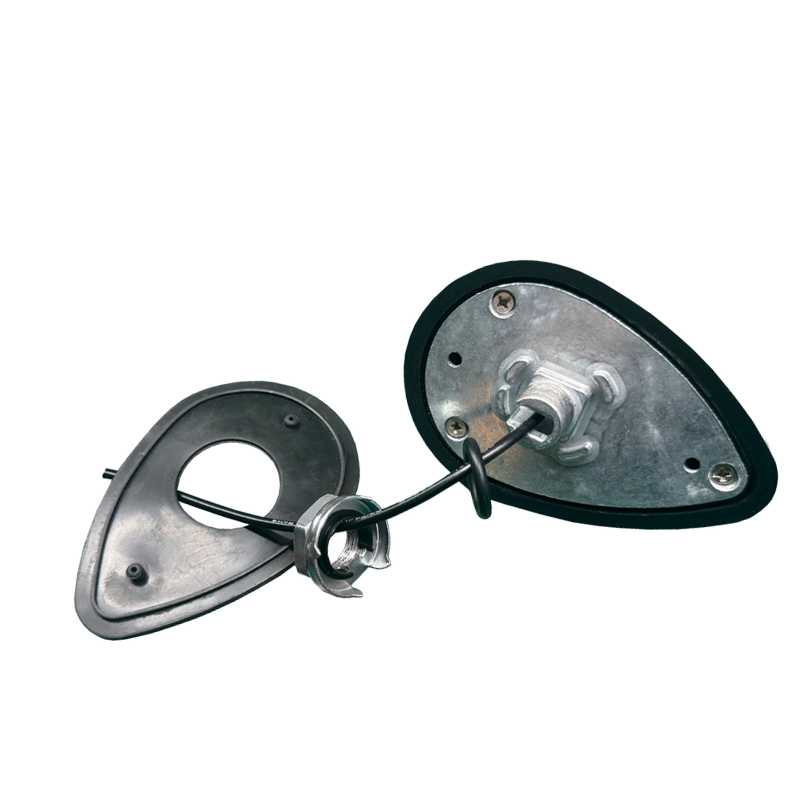

The antenna radome consists of black ABS UV resistant plastic, with a heavy duty metal baseand threaded feed thru.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.5:1 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mounting way | Screw Mount |
| Mechanical | |
| Dimensions | 91x62x62 mm |
| Weight | 160g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
4G Terminal Antennas are designed for 4G, 3G, and 2G applications.Covering the LTE, HSPA+, WCDMA, CDMA, GSM, GPRS, DCS1800, and PCS1900 bands.
This is an omnidirectional 5G/4G LTE antenna, primarily designed for use with 5G/4G modules and devices that require the highest possible efficiency and peak gain .
These high-performance dipole antennas feature a blade design and are suitable for routers, industrial devices, remote devices, and smart meter applications.
