3.3-3.8GHz 4-Port MIMO Panel Antenna for 3.5G and 5G C-Band （AC-D35W15X4-38）

Name: 3.3-3.8GHz 4-Port MIMO Panel Antenna for 3.5G and 5G C-Band （AC-D35W15X4-38）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This high-gain 4-port panel antenna is specifically engineered for the 3.3-3.8GHz (C-Band) frequency range,a critical spectrum for 5G NR and high-capacity Wi-Fi 6E/7 applications.

Designed to support 4x4 MIMO technology, it delivers exceptional data throughput, spectral efficiency, and signal reliability for demanding wireless environments.

The antenna features a sleek,low-profile white radome that blends seamlessly into modern architectural settings,making it ideal for indoor enterprise deployments,campus networks,or discreet outdoor installations.

Its directional radiation pattern focuses signal energy toward specific target areas, maximizing coverage range and minimizing interference from unwanted directions.

Get Antenna Price 

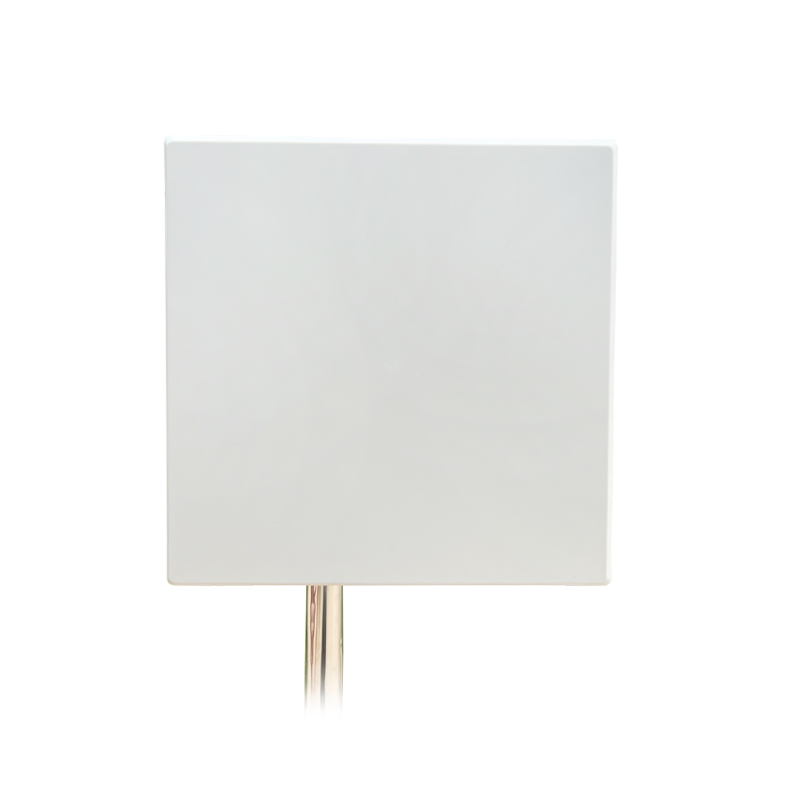

MIMO 4x4 Panel Antenna With N Female.jpg

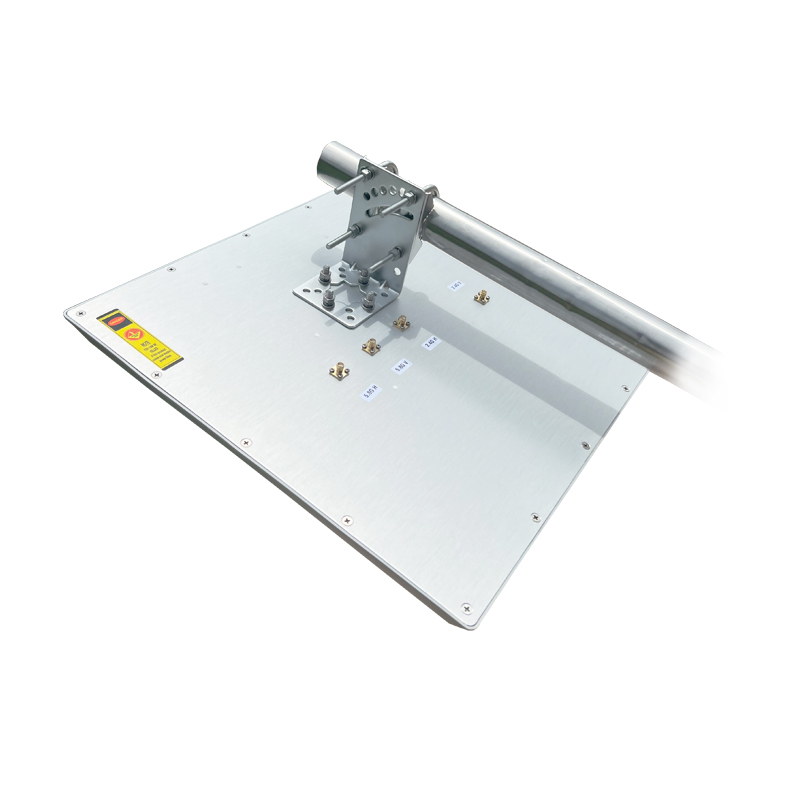

3.3-3.8GHz & 5G 4x4 MIMO Panel Antenna With N Female.jpg

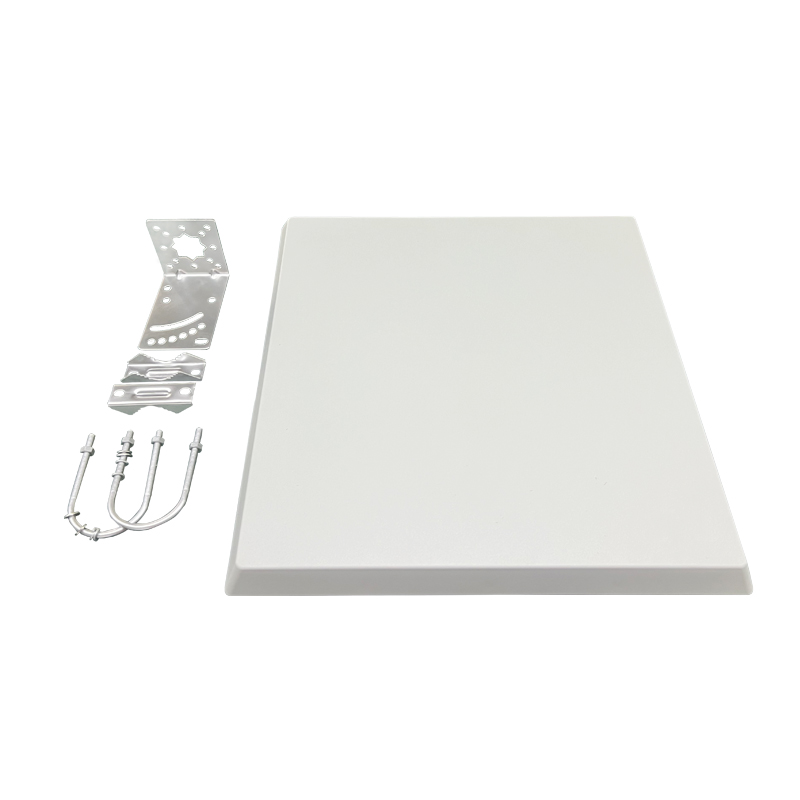

4x4 MIMO Panel Antenna With N Female.jpg



Specification of 3.3-3.8GHz 4-Port MIMO Panel Antenna for 3.5G and 5G C-Band （AC-D35W15X4-38）

Electrical
Frequency Range	3300-3800MHz X4
F/B Ratio	≥28dB
Gain	15dBiX4
V.S.W.R	<1.5Type
Radiation	Direction
Horizontal Beam width	11°
Vertical Beam width	11°
Polarization	Vertical and Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	N FemaleX4
Antenna Radome Material	ABS
Mounting way	Pole Mount
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	385x385x30mm
Weight	2KG
Operating Temperature	-40℃ to+80℃
Rated Wind Velocity	60m/s
RoHS Compliant	YES
