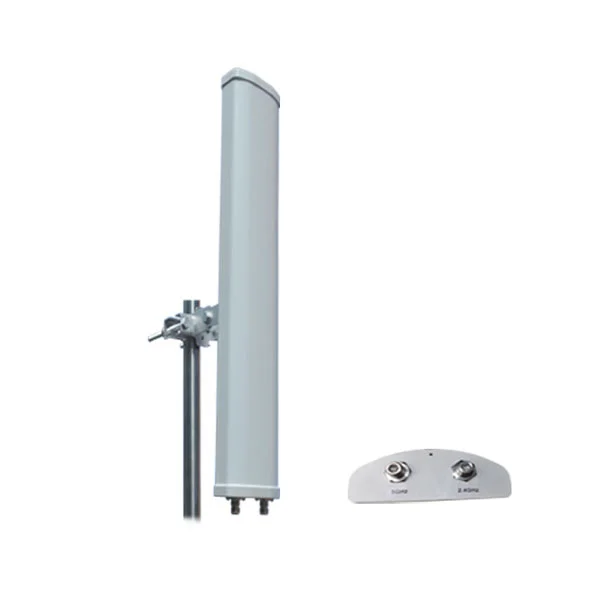

The Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate.High Performance, Long Rang.Excellent Cross-Polarization Isolation.This versatile combination gives network architects unparalleled flexibility and convenience.
The sector antenna ideal for providing client coverage over focused areas or creating backhaul links.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| F/B Ratio | ≥23dB |
| Gain | 2x16dBi |
| V.S.W.R | <1.5Type;Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 90° |
| Vertical Beam width | 7.5° |
| Polarization | ±45 ° |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 750x120x60mm |
| Weight | 5.5KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This antenna offers high-gain, 90-degree wireless beam performance for broad coverage.
Combine with other sector antennas to create 360-degree area coverage. Apply to a variety of point-to-multipoint scenarios.
This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radio transmit and receive paths.
