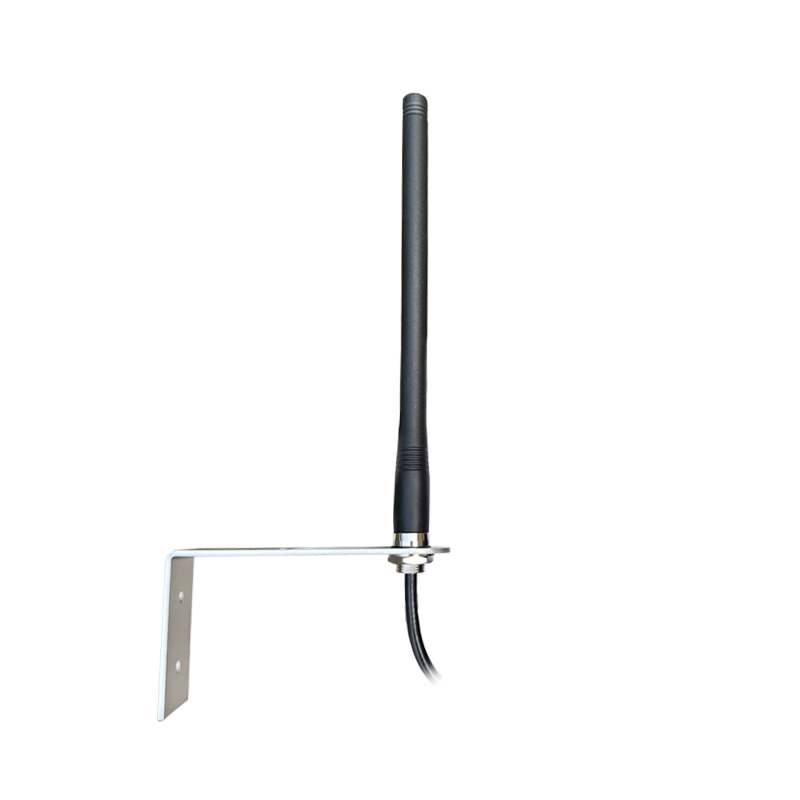

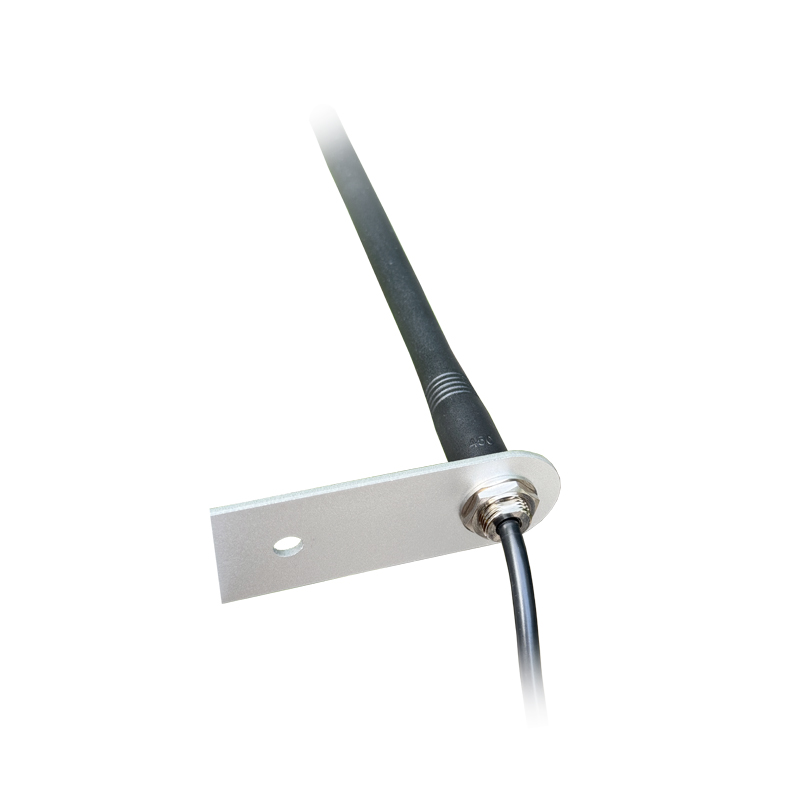

This wall mount ahntenna is designed for 433MHZ as pread spectrum communication system.
After optimizing the design and tuning carefully, it has good VSWR. The small dimension and light structure make it easy to install. It also has good shockproof and anti-aging performance.

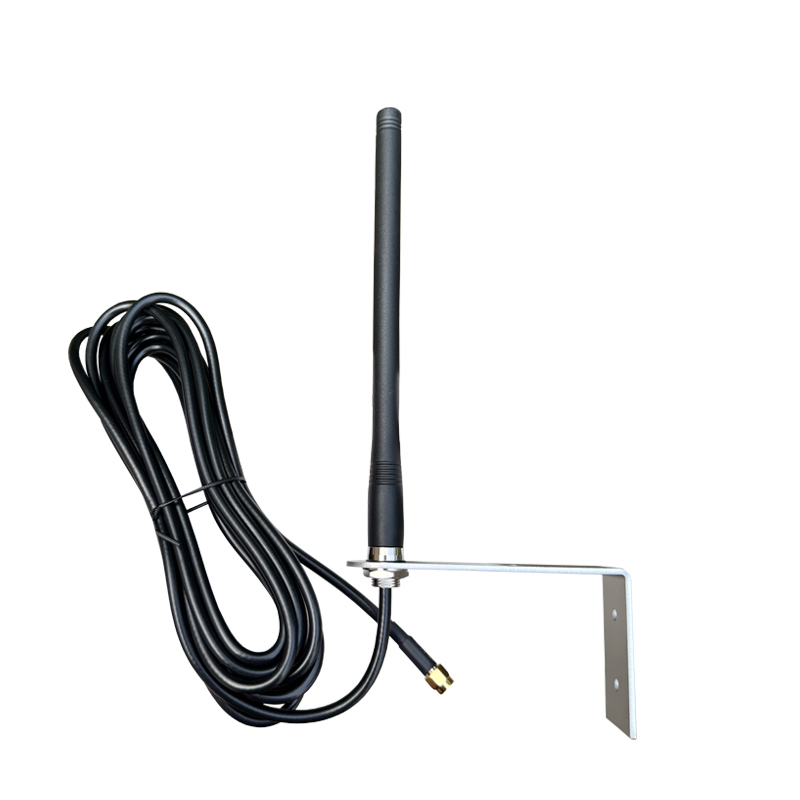

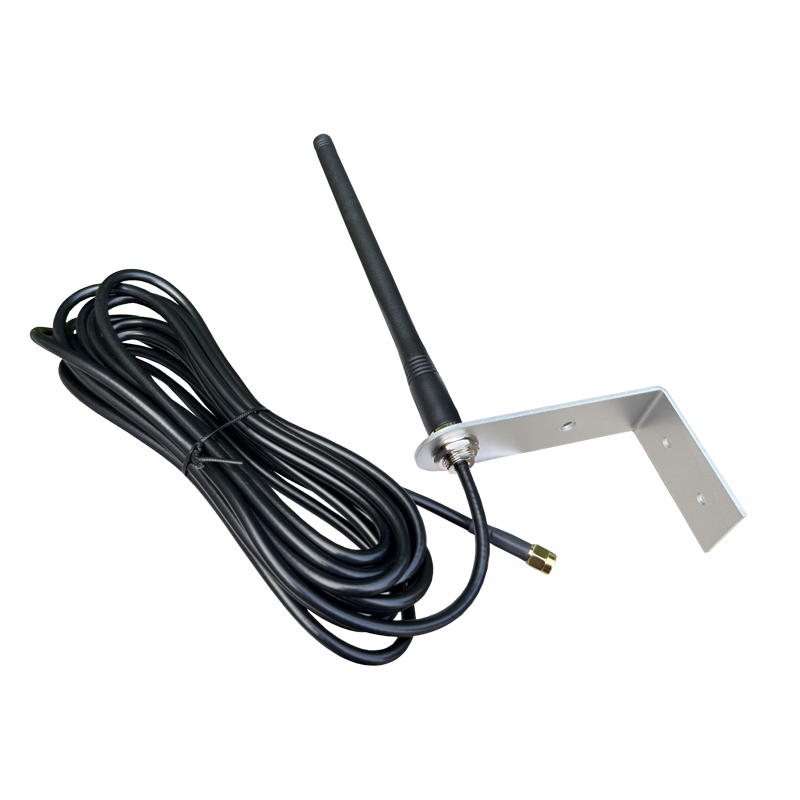

With 3 meters,5meters or 10 meters low loss extender cable will offer the best choose of the installation place.
| Electrical | |
| Operating Frequency | 433MHz |
| Gain | 3.5dBi |
| V.S.W.R | ≤2.0 |
| Polarization | Vertical |
| Radiation | Omni-Direction |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable type | RG174 |
| Cable Length | 30cm |
| Antenna Radome Material | TPE |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | Φ15x205mm |
| Weight | 30g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | Yes |
This is a 433 MHz wall mount omni antenna ideally suited for access applications in the RFID frequency band.
Standard order includes a SMA-Male connector and 30 cm long RG58 cable that has been tuned for optimal performance.
The omnidirectional 360-degree signal optimization offers a powerful signal strength through walls and buildings ideal in urban environments.
