600-6000MHz 4X4 MIMO UWB 5G LTE Omni-Directional Antenna（AC-Q6060F05X4DP）

Name: 600-6000MHz 4X4 MIMO UWB 5G LTE Omni-Directional Antenna（AC-Q6060F05X4DP）
Brand: ASIAN CREATION COMMUNICATION CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

This is a high-performance omnidirectional antenna designed specifically for the next generation of communication networks. Its core advantage lies in its ultra wide frequency band coverage of 600-6000 MHz,which is fully compatible with all current mainstream LTE and 5G frequency bands.

Through the innovative design of vertically separated radiation units within a single enclosure,this antenna achieves 4×4 MIMO technology, ensuring precise control of signal radiation patterns across the entire frequency band while significantly improving data transmission efficiency and network stability.

Whether deployed in densely populated urban areas or commercial complexes,our AC-Q6060F05X4DP can provide reliable signal reception worldwide and proactively support LTE Band71 (600-698MHz), CBRS frequency bands (3400-3800MHz), and Wi Fi (4900-6000MHz), leaving ample space for future network technology upgrades.

Get Antenna Price 

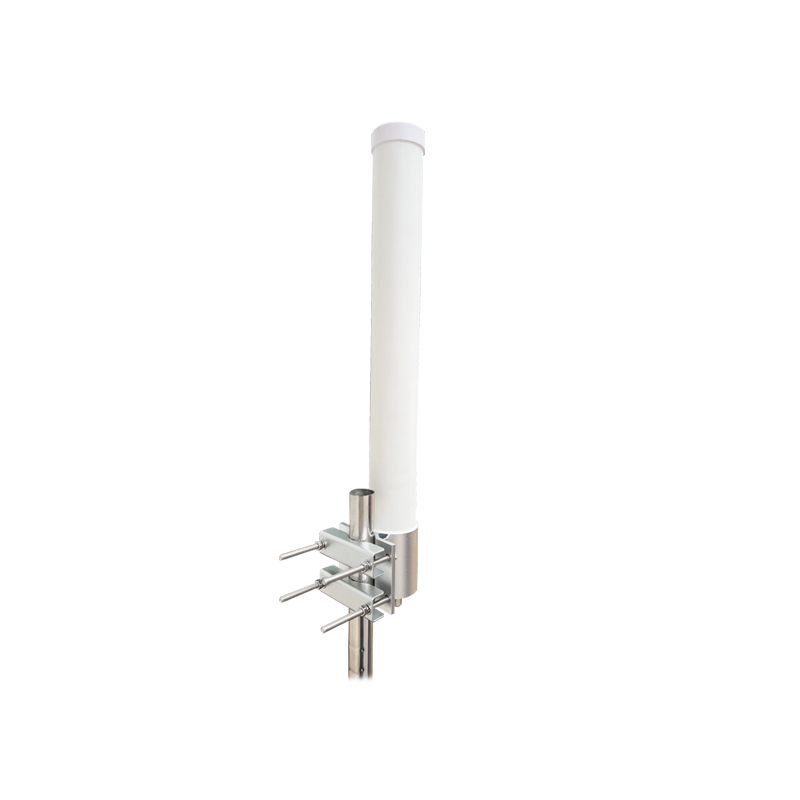

600-6000MHz 4X4 UWB MIMO 5G LTE Omni-Directional Antenna.jpg

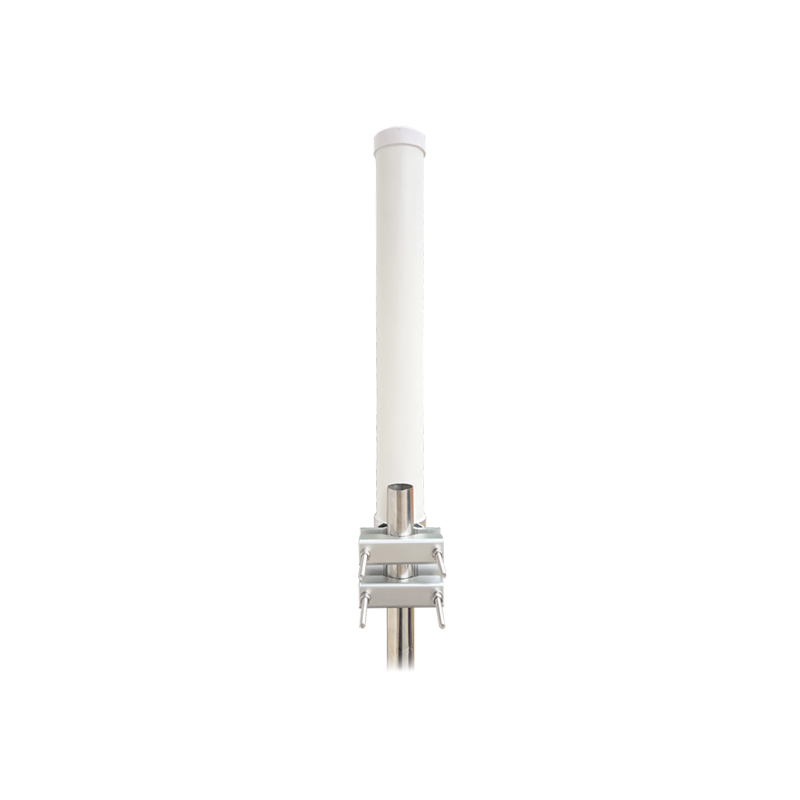

600-6000MHz 4X4 MIMO Omni-Directional UWB 5G LTE Antenna.jpg

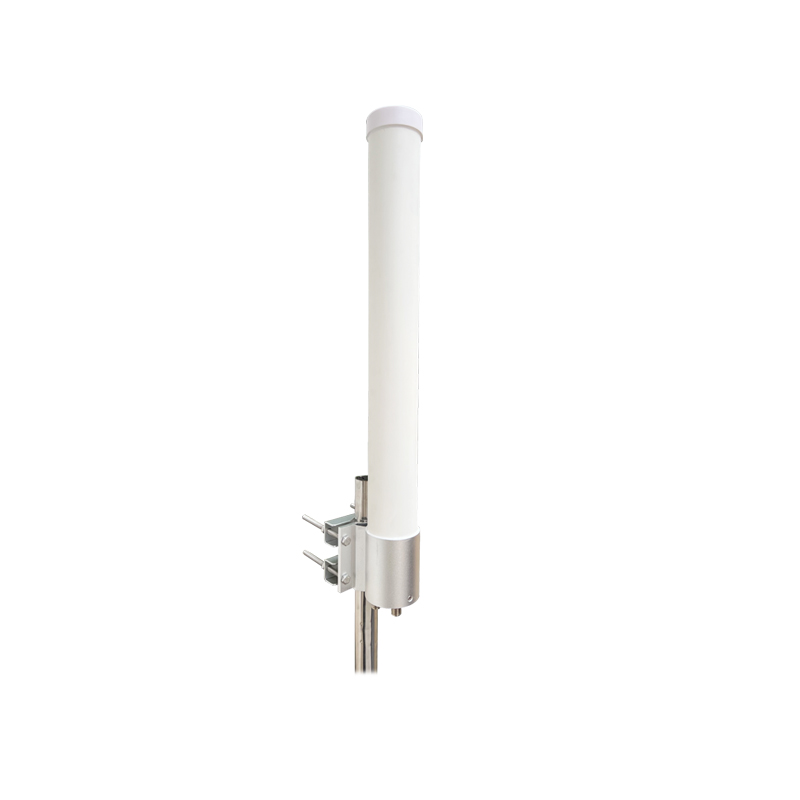

600-6000MHz 4X4 MIMO UWB 5G LTE Omni-Directional Antenna.jpg

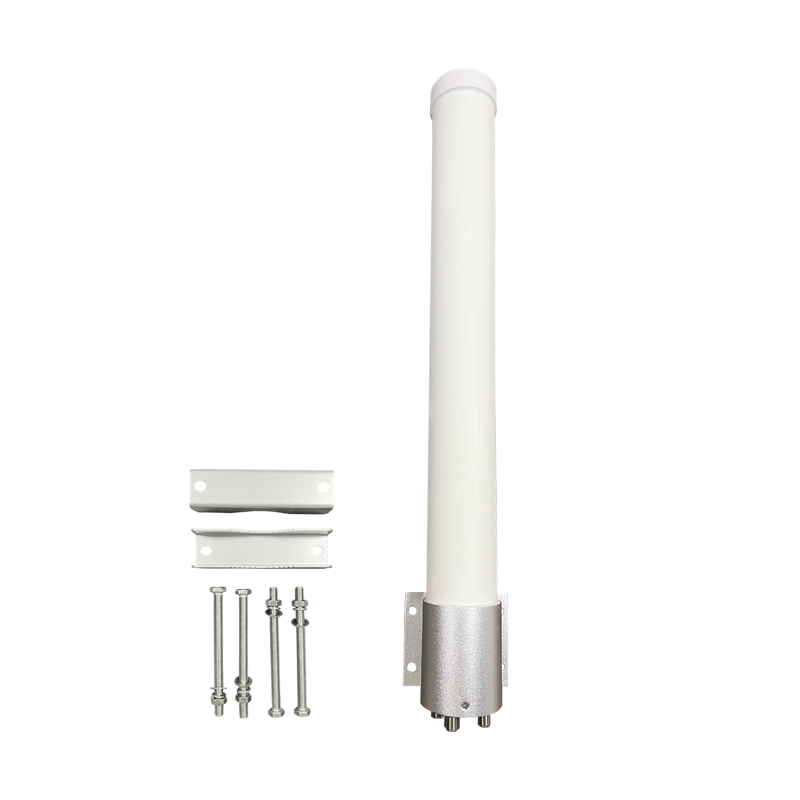

4X4 600-6000MHz MIMO UWB 5G LTE Omni-Directional Antenna.jpg

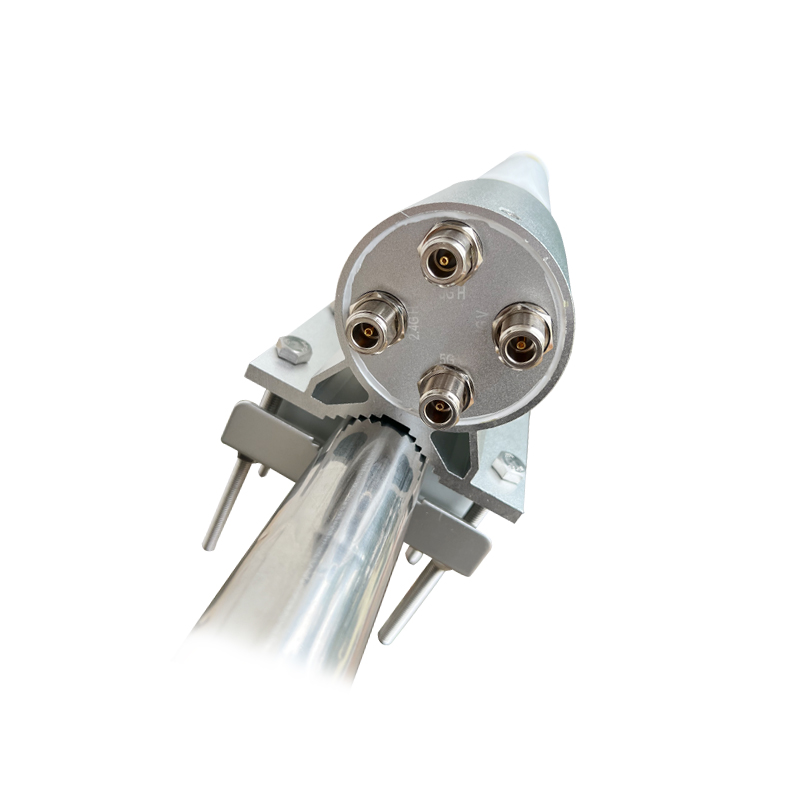

600-6000MHz 4X4 MIMO UWB 5G LTE Omni-Directional Antenna with 4 N Female Connector.jpg



Specification of 600-6000MHz 4X4 MIMO UWB 5G LTE Omni-Directional Antenna（AC-Q6060F05X4DP）

Electrical
Frequency Range	600-960/1710-6000MHzX4
Gain	5dBiX4
Horizontal Beam width	360°
Vertical Beam width	21°
V.S.W.R	600-960MHz≤4.5;1710-6000MHz≤1.8
Radiation	Omni-Direction
Polarization	Vertical & Horizontal
Lightning Protection	DC Grounded
Maximum Input Power	100W
Impedance	50Ώ
Connector	4xN Female
Antenna Radome Material	PVC
Mounting way	Pole
Diameter of Installation Pole	Ø30~Ø50mm
Mechanical
Dimensions	Φ75x850mm
Weight	2.5KG
Operating Temperature	-40℃ to+80℃
Rated wind velocity(m/s)	60m/s
RoHS Compliant	YES

Features of 600-6000MHz 4X4 MIMO UWB 5G LTE Omni-Directional Antenna

01

Supports 600-6000MHz frequency band, compatible with all mainstream LTE and 5G frequency bands, 4 × 4MIMO technology
02

Precise beam control: ensuring the stability of omnidirectional signal distribution and achieving a continuous and consistent connection experience
03

IP65 protection level: with excellent dust and water resistance, specially designed for outdoor installation environments in cities
